10 Configuring the Workstation
7. Connect to workstation to your PC (see “To connect the workstation to a PC”).
To connect the workstation to a PC
1. Connect the probe-adaptor interface cable (15-pin D-Subminiature connector) to the test stand’s I/O panel (see
Figure 5-6 on page 10 and Figure 5-7 on page 10).

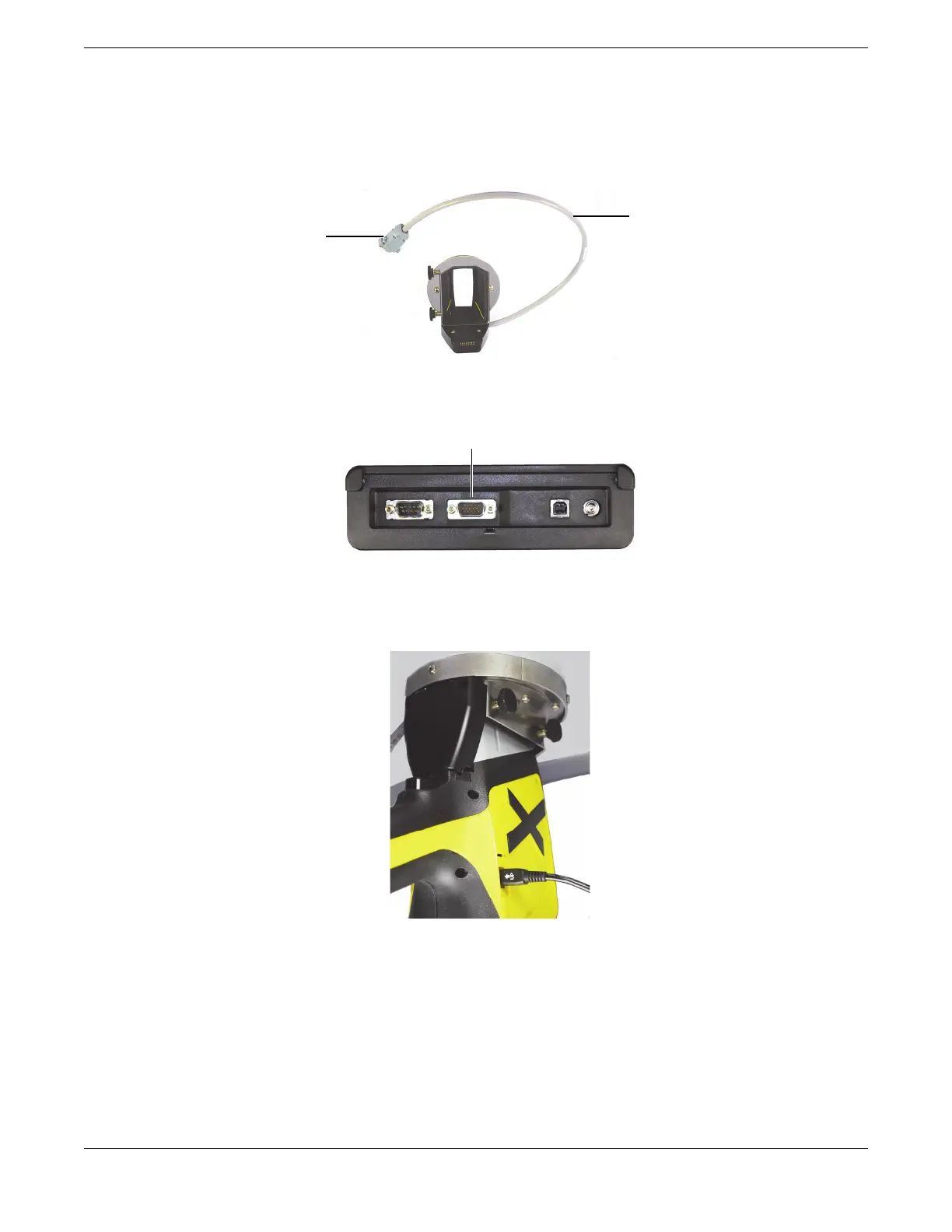

Figure 5-6 Probe-adaptor interface cable
Figure 5-7 Test-stand I/O panel
2. Plug the USB cable mini USB B connector into the DELTA data port (see Figure 5-8 on page 10).
Figure 5-8 Mini USB B connector plugged into the analyzer data port
3. Plug the USB cable USB A connector into a PC USB port.
15-pin D-Subminiature connector
Interface cable
15-pin D-Subminiature connector
