Olympus Delta User Manual

103158-01EN [U8998465], Rev. A, April 2012
8 Configuring the Workstation
5. Configuring the Workstation
Before using the workstation, you must do the following:
• Install the DELTA analyzer on a probe adaptor.
• Install the analyzer-adaptor assembly on the test stand.
To install the probe adaptor onto the DELTA analyzer
1. Loosen the two probe-adaptor thumbscrews.
2. Connect the DELTA analyzer to the probe adaptor’s 16-pin connector (see Figure 5-1 on page 8).

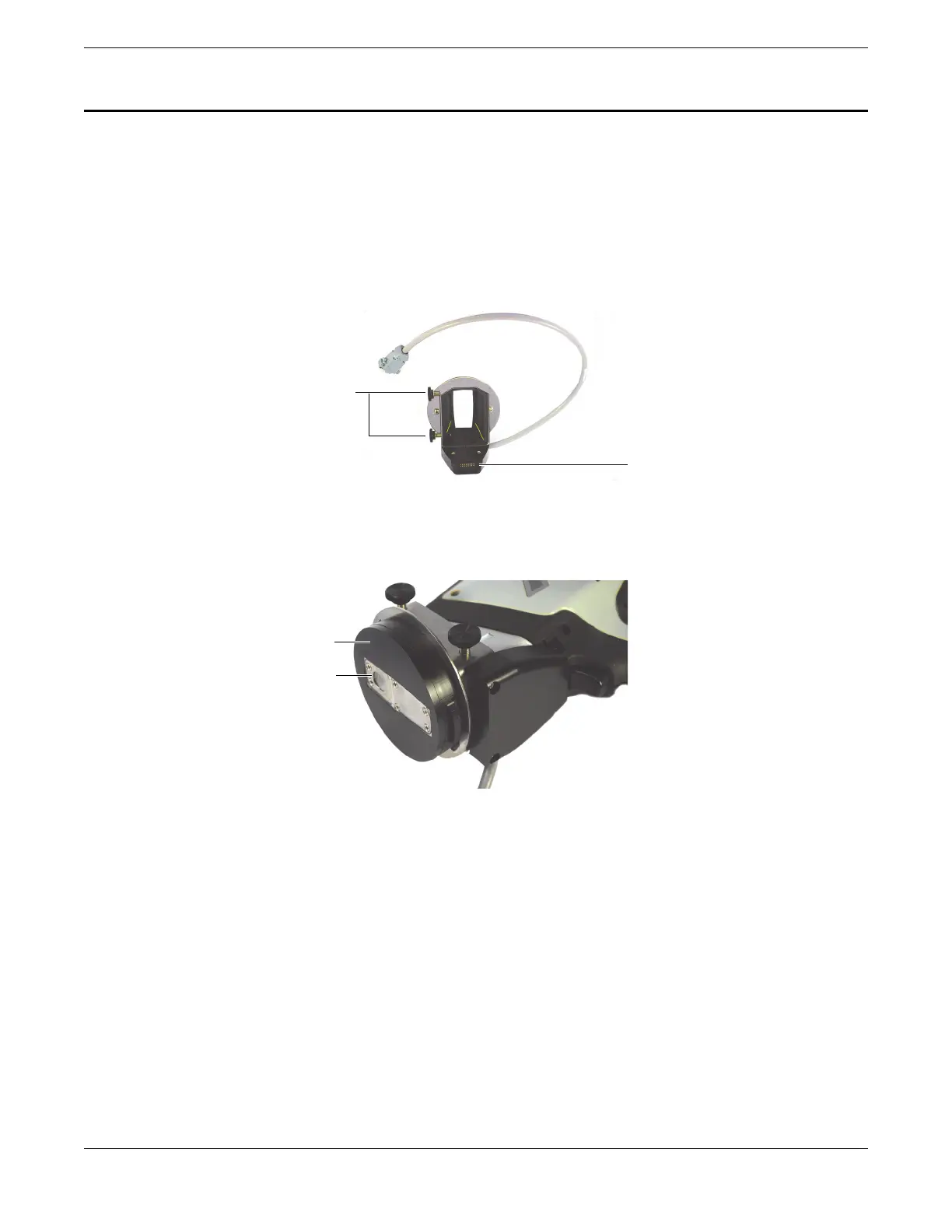

Figure 5-1 Probe adaptor
3. Make sure that the DELTA measurement window is flush with the probe-adaptor faceplate (see Figure 5-2 on page 8).
Figure 5-2 DELTA measurement window flush with the probe-adaptor faceplate
4. Tighten the two thumbscrews, making sure that the measurement window stays flush with the probe-adaptor
faceplate.
5. Install the analyzer-adaptor assembly on the test stand (see “To install the analyzer-adaptor assembly onto the test
stand”).
To install the analyzer-adaptor assembly onto the test stand
1. Unfold the test stand (see “To unfold the test stand”).
2. Position the test stand so that the locking fixture is accessible (see Figure 5-3 on page 9).
16-pin connector
Thumbscrews
DELTA measurement window
Probe-adaptor faceplate
