SUCTION PUMP KV--5
10

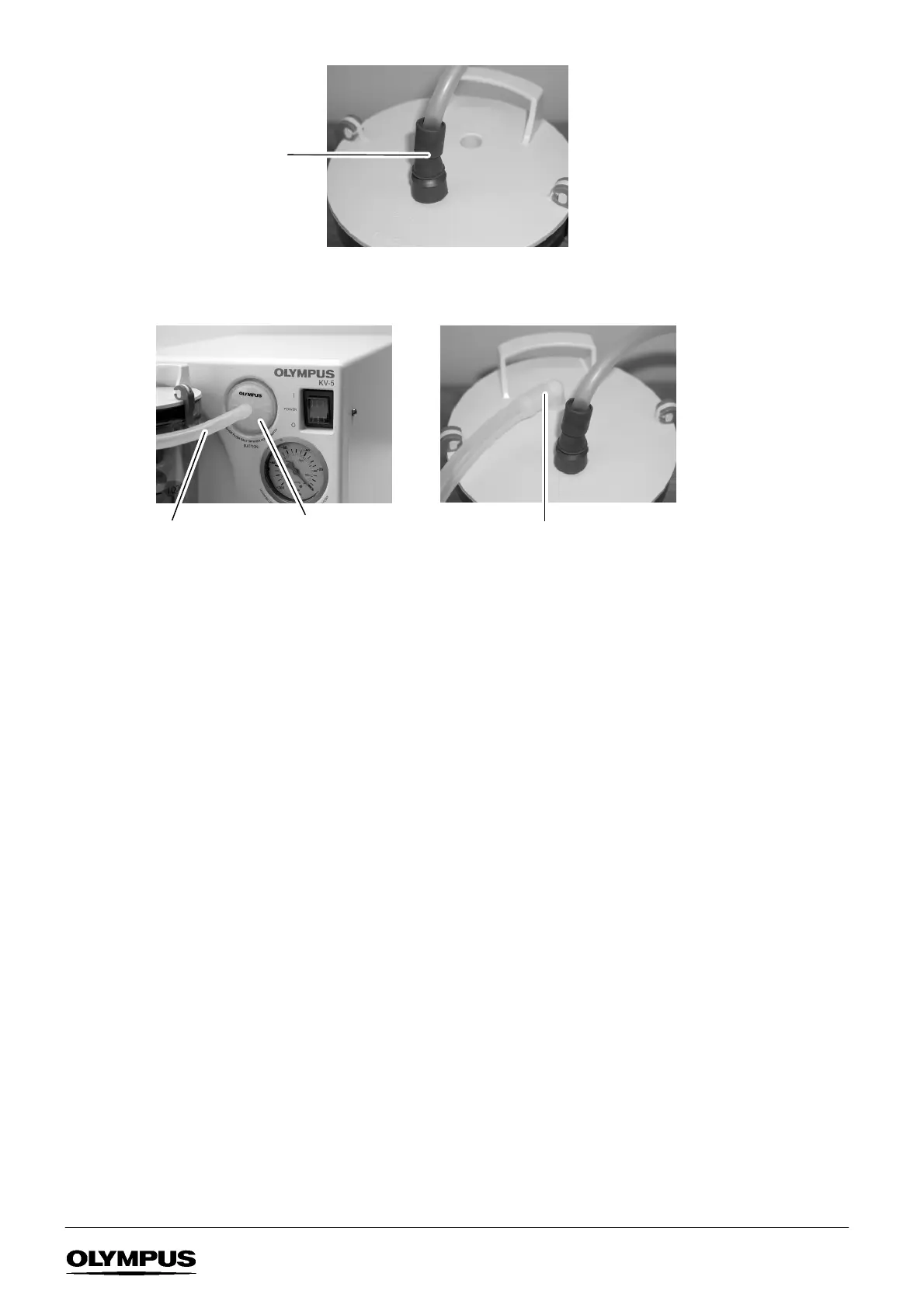

FIGURE 3-9
Patient connecting tube
(6) Push the open end of the filter connecting tube onto the microbial filter and fully insert the 90˚ connector into the
suction jar lid marked VACUUM (Figure 3-10).
FIGURE 3-10
Filter connecting tube
Filter connecting tube 90˚ connector
Microbial filter
(7) Ensure the KV--5 power switch is set to O and the vacuum r egulator set to ‘MIN’, then connect the power cable into
the IEC receptacle on the rear of the unit and a suitably grounded AC wall outlet or isolation transformer socket.
(8) Set the power switch to the ‘l’ position, the switch will illuminate and the pump will start to run.
(9) The suction level can be increased and set as required by turning the vacuum regulator in a clockwise direction. To
obtain suction via an endoscope, refer to the instructions for the endoscope.
(10) Suction should be stopped when the fluid reaches the 1 litre / 2 litre mark.
NOTE
When the fluid in the suction jar reaches the float, the float will rise and seal the patient tube when capacity is
reached, preventing further suction. Empty the suction jar replace the lid to allow suction to continue.
(11) Empty the suction jar as follows:
CAUTION
The suction jar, filters and suction tubing will contain potentially infectious body fluids. Take suitable
precautions, as dictated by local hospital policy, such as use of personal protective equipment, and dispose of
carefully as clinical waste for incineration.
Do NOT lift the suction jar by the lid, otherwise the lid and jar may become separated and s p illage of its
contents may result.
The patient tube may contain residual fluid s o carry holding both ends of the tube upright, taking care to ensure
it is properly drained before disposal in line with local hospital policy.
a) Keep the KV--5 switched ON and disconnect the patient connecting tube from the suction jar lid.
b) Turn off the unit and remove the filter tube from the suction jar lid.
