SUCTION PUMP KV--5
16
Power socket
Fuseholder
Illuminated
power switch
Vacuum pump
Green/Yellow
Black
Red
Brown
Blue
LNE
L5 N1 N2 L4

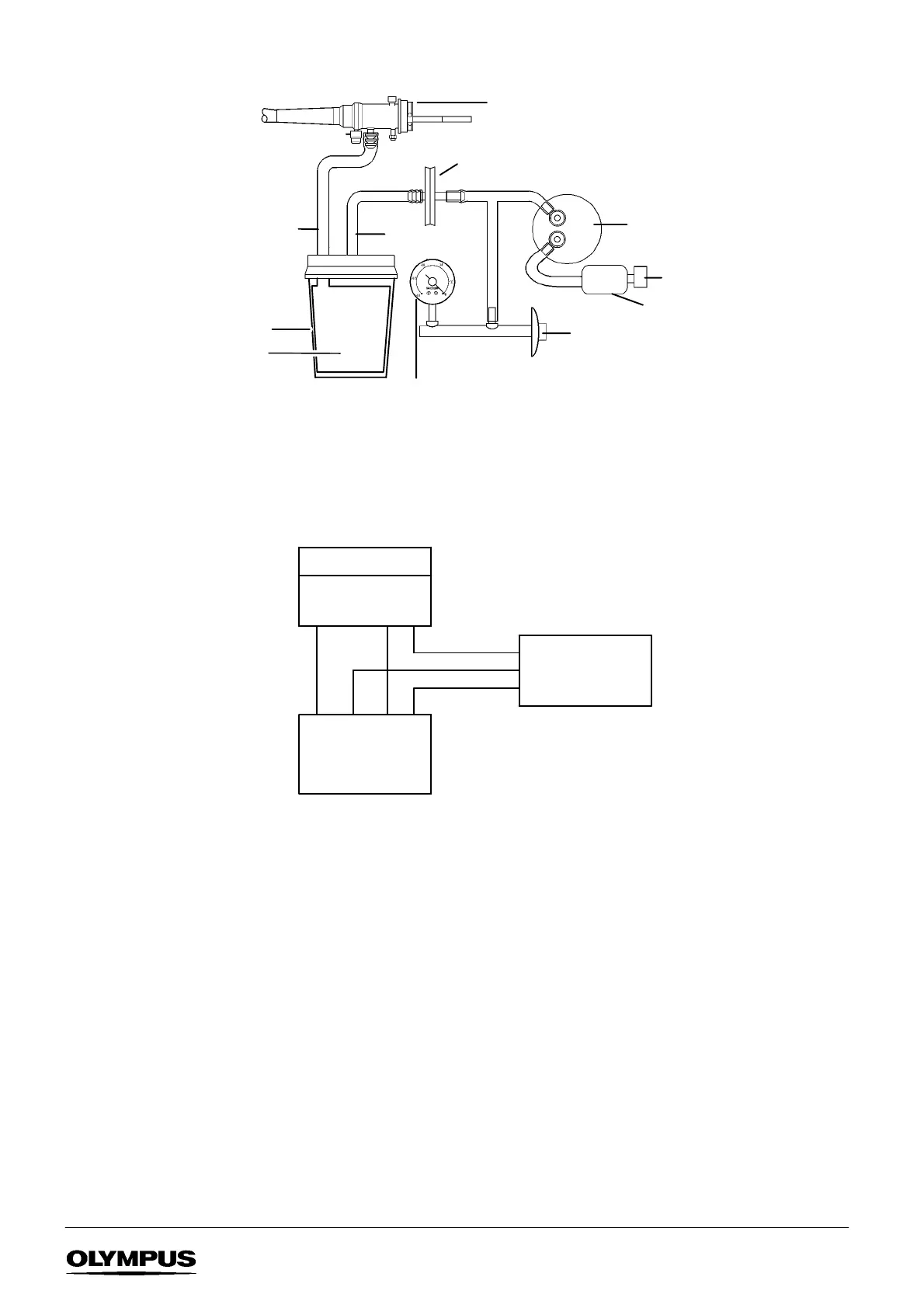

FIGURE 7-1
FIGURE 7-2
Endoscope umbilical connector
(or other applied part)
Microbial filter
Patient tube
Suction jar
Vacuum pump
Exhaust silencer
Vacuum regulator
Vacuum gauge
Filter tube
Exhaust
Single use
suction liner
8 ENVIRONMENTAL PROTECTION
There are no known risks associated with disposal of the KV--5 at the end of its working life. If however, aspirated fluid
has entered the pump, it may be contaminated with infectious material and should therefore be disposed of in
accordance with local regulations or policy.
