UIS2 OBJECTIVE LENSES
16
Long WD M Plan SemiApochromat BD
LMPLFLN-BD series
Long working distance Plan SemiApochromat objective lenses, giving high-level correction for chromatic aberration.
Suitable with samples having a height difference and in preventing collision, as the working distance is long.
Also, since the exit pupil position of the 5x-100x objective lenses is standardized, the position of the DIC prism does not have to be
switched when changing the magnification.
LMPLFLN 5xBD 0.13 15.0 36 81 50 4.4 70 50 5.3 70
LMPLFLN 10xBD 0.25 10.0 18 84 100 2.2 18 100 2.7 18
LMPLFLN 20xBD 0.40 12.0 9 86 200 1.1 6.1 200 1.3 6.1
LMPLFLN 50xBD 0.50 10.6 3.6 85 500 0.44 2.5 500 0.53 2.5
LMPLFLN 100xBD 0.80 3.3 1.8 102 1000 0.22 0.87 1000 0.27 0.87
Numerical
Aperture
Working distance
(mm)
Focal distance
f (mm)
Weight
(g)
Total
magnifications
Practical field
of view (mm)
Depth of
focus (µm)
Total
magnifications
Practical field
of view (mm)
Depth of
focus (µm)
UIS2 objective lenses
Widefield eyepiece WHN10x
Field Number 22
Super widefield eyepiece SWH10x
Field Number 26.5
Objective lens
(magnification)
Screw: W26x0.706
Unit: mm

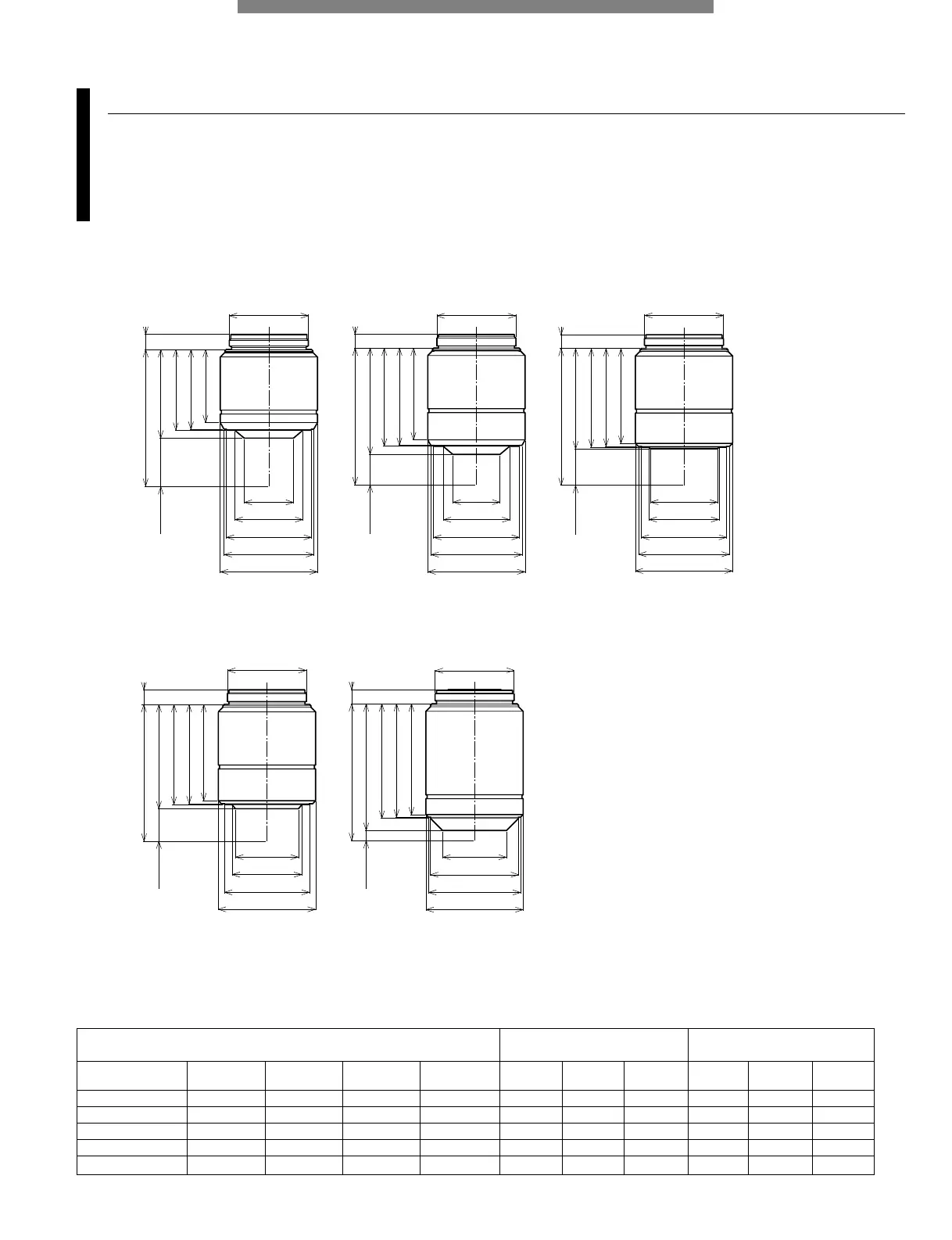

LMPLFLN5xBD LMPLFLN10xBD LMPLFLN20xBD
LMPLFLN50xBD LMPLFLN100xBD
