LAMP HOUSING & ACCESSORIES
26
Lamp housings

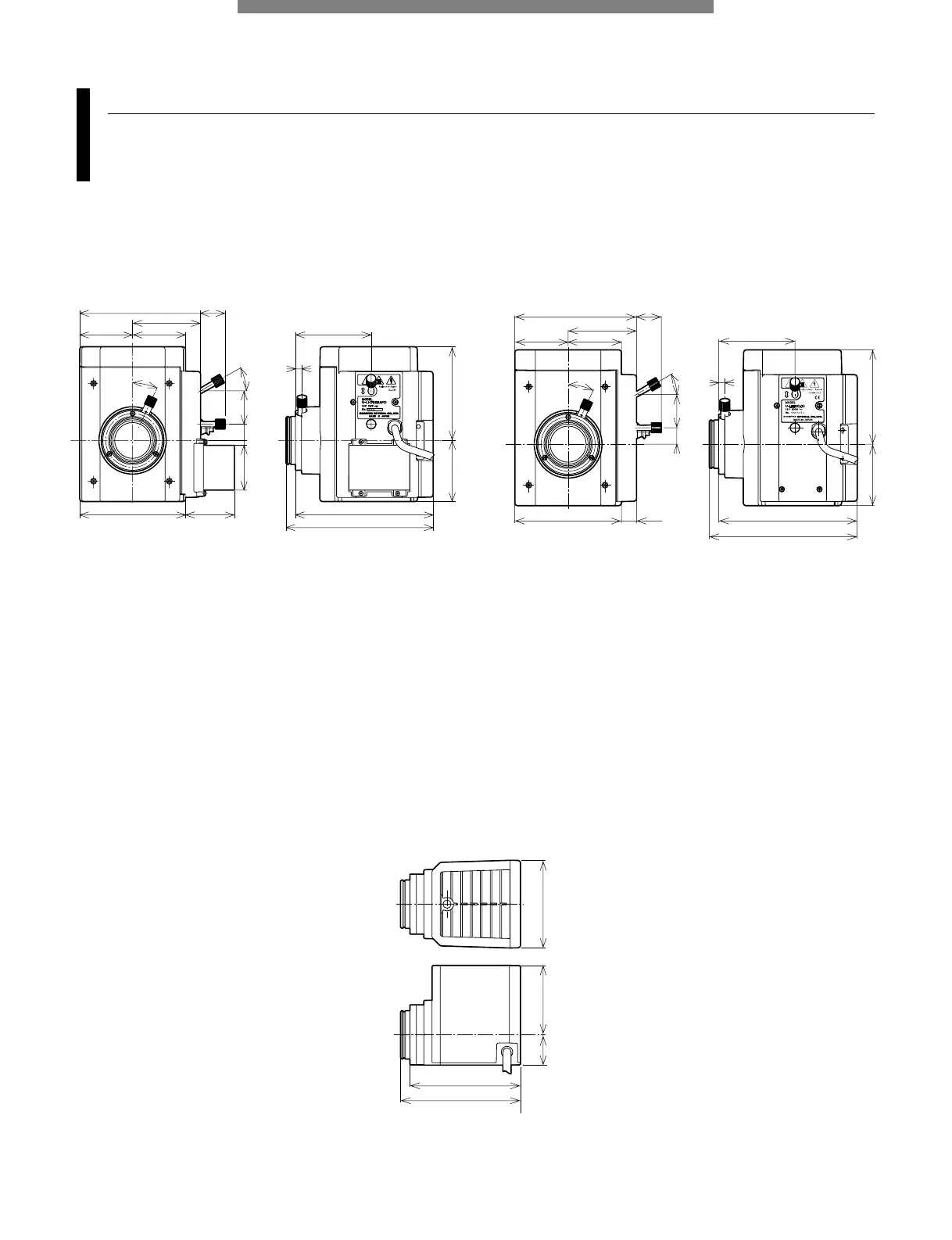

Various different lamp housings are available, for use with different light sources: choose to suit the intended purpose.
Unit: mm
U-LH100HGAPO
100W mercury apo lamp housing
U-LH100HG
100W mercury lamp housing
U-LH75XEAPO
75W xenon apo lamp housing
U-LH100-3/U-LH100IR/U-LH100L-3
100W halogen lamp housings
Cable length 2,000mm Accepted lamp: UXL-75XB Weight: 3.1kg Cable length 2,000mm Accepted lamp: USH-103OL Weight: 2.7kg
Cable length U-LH100-3: 290mm
U-LH100IR: 290mm
U-LH100L-3: 800mm
Accepted lamp: 12V100WHAL (high intensity lamp)
12V100WHAL-L (long life lamp)
8
11575
180.5
169 (depth dimension for installation)
93
25°
55 6
30.2
30°
40.820
(148.5)
83.5
6565
60130
(30.2)(148.5)
93
169
(depth dimension for installation)
180.5
130
18.5
8
83.5
65
25°
65
40.8
30°
11575
20
135
(depth dimension for installation)
146.5
85.5 10737
Weight: 880g
* Power supply unit (BH2-RFL-T3 or U-RFL-T200) and power cable (UYCP) are necessary
for 100W mercury lamp housings. These items are sold separately.
BH2-RFL-T3: dimensions 120(W)x290(D)x225(H), weight approx 5kg/
U-RFL-T200 (for EU countries): dimensions 150(W)x295(D)x200(H), weight approx. 4.8kg
*Power supply unit (AH2-RX-T or U-RX-T200) and power cable (UYCP) are necessary for
75W xenon lamp housing. These items are sold separately.
AH2-RX-T: dimensions 120(W)x290(D)x186(H), weight approx. 4kg/
U-RX-T200 (for EU countries): dimensions 115(W)x195(D)x260(H), weight approx. 3kg
Note: Supplied by Olympus Life and Material Science Europa GmbH and its business
partners.
* External power supply (TH4-100 or TH4-200) and power cable (UYCP) are necessary for 100W halogen
lamp housings. These items are sold separately. For TH4-100/200 installation dimensions, refer to the next page.
