Olympus Microscope - BXFM-S Focusing Unit

MICROSCOPE SYSTEM BXFM
21
ø32
169
(Stroke)
19-49
124
84
208
290
204045
106 187
92.5
Specimen surface

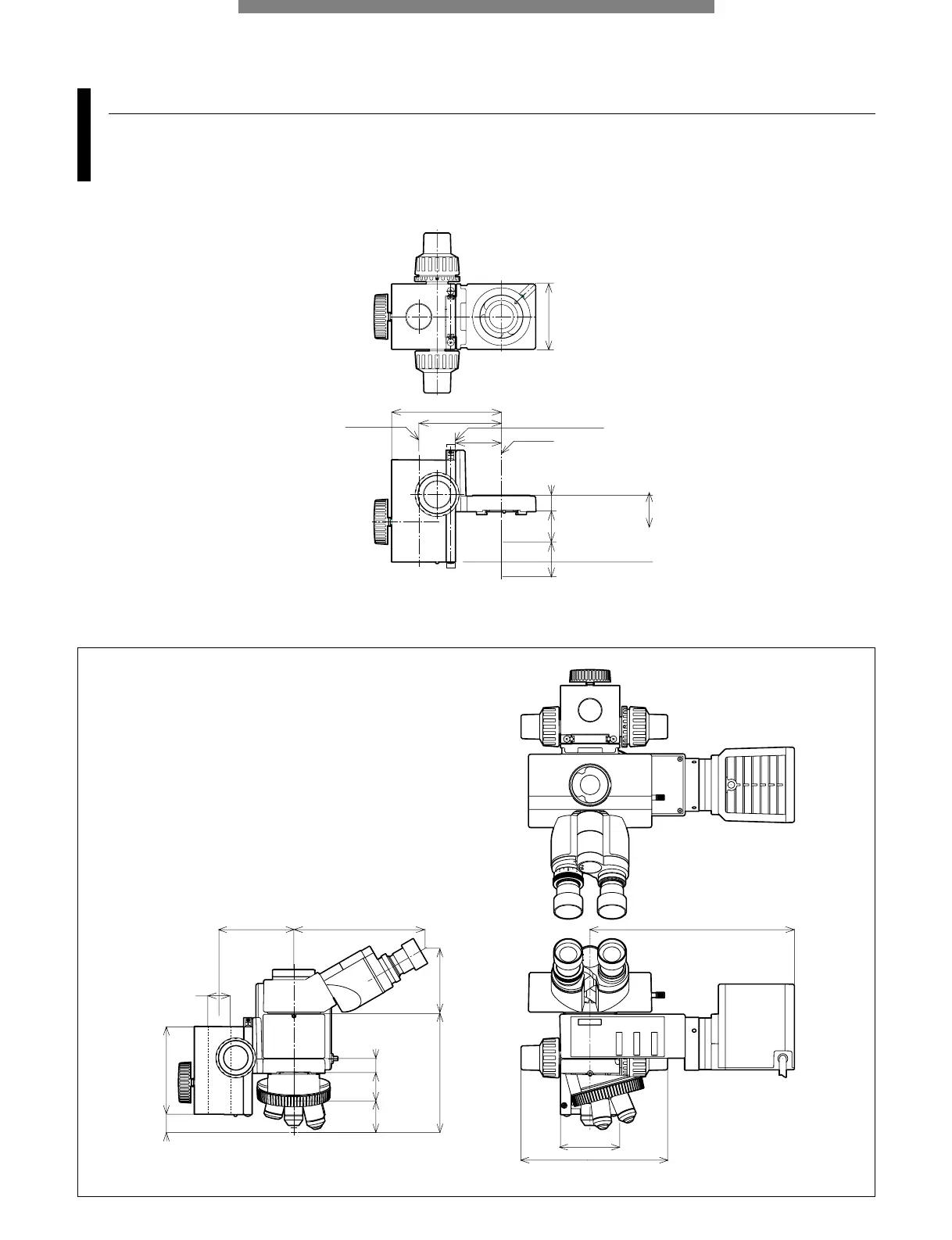

BXFM-S combination sample
BXFM-F+BXFM-ILHS+TR30-2+U-KMAS+U-LH100L-3
Weight: 5.5kg (exclude objective lens) Unit: mm
BXFM-S
BXFM-F+BXFM-ILHS
Compact focusing unit suitable for building into existing equipment.
Weight: 2.4kg Unit: mm
20
Stroke
723
Light axis
45 40 84
141
59
106
Holder mounting position
Pillar axis
Revolving nosepiece
mounting position
Objective lens
mounting position
Specimen position
* For installation dimensions, refer to those for the BXFM-F (page 19).
