Olympus Microscope - M Plan Apochromat BD; M Plan Apochromat BD Mplanapo-BD

18
UIS OBJECTIVE LENSES

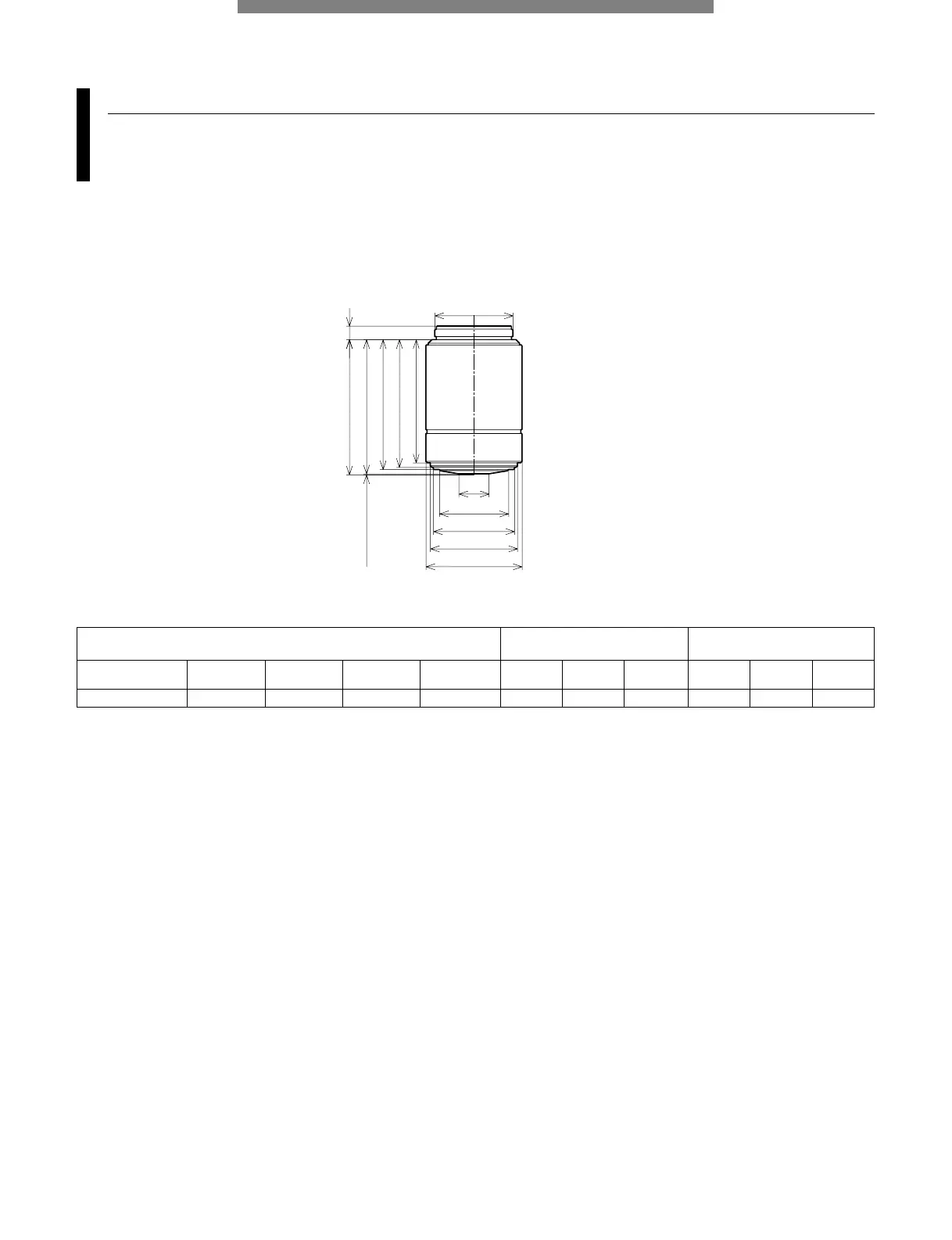

ø26
41
42.5
43.2
(44.69)
4.5
WD=0.31
ø10
ø23
ø27
ø29
ø32
45
MPlanApo100xBD
M Plan Apochromat BD
MPlanApo-BD
Highest class Plan Apochromat objective lens that maximize performance in brightfield and darkfield observations.
All aberrations are corrected at the highest level, while providing high N.A.
MPlanApo100xBD 0.9 0.31 1.8 180 1000 0.22 0.59 1000 0.27 0.59
Numerical
Aperture
Working distance
(mm)
Focal distance
f (mm)
Weight
(g)
Total
magnifications
Practical field
of view (mm)
Depth of
focus (µm)
Total
magnifications
Practical field
of view (mm)
Depth of
focus (µm)
UIS objective lenses
Widefield eyepiece WHN10x
Field Number 22
Super widefield eyepiece SWH10x
Field Number 26.5
Objective lens
(magnification)
Screw: W26x0.706
Unit: mm
