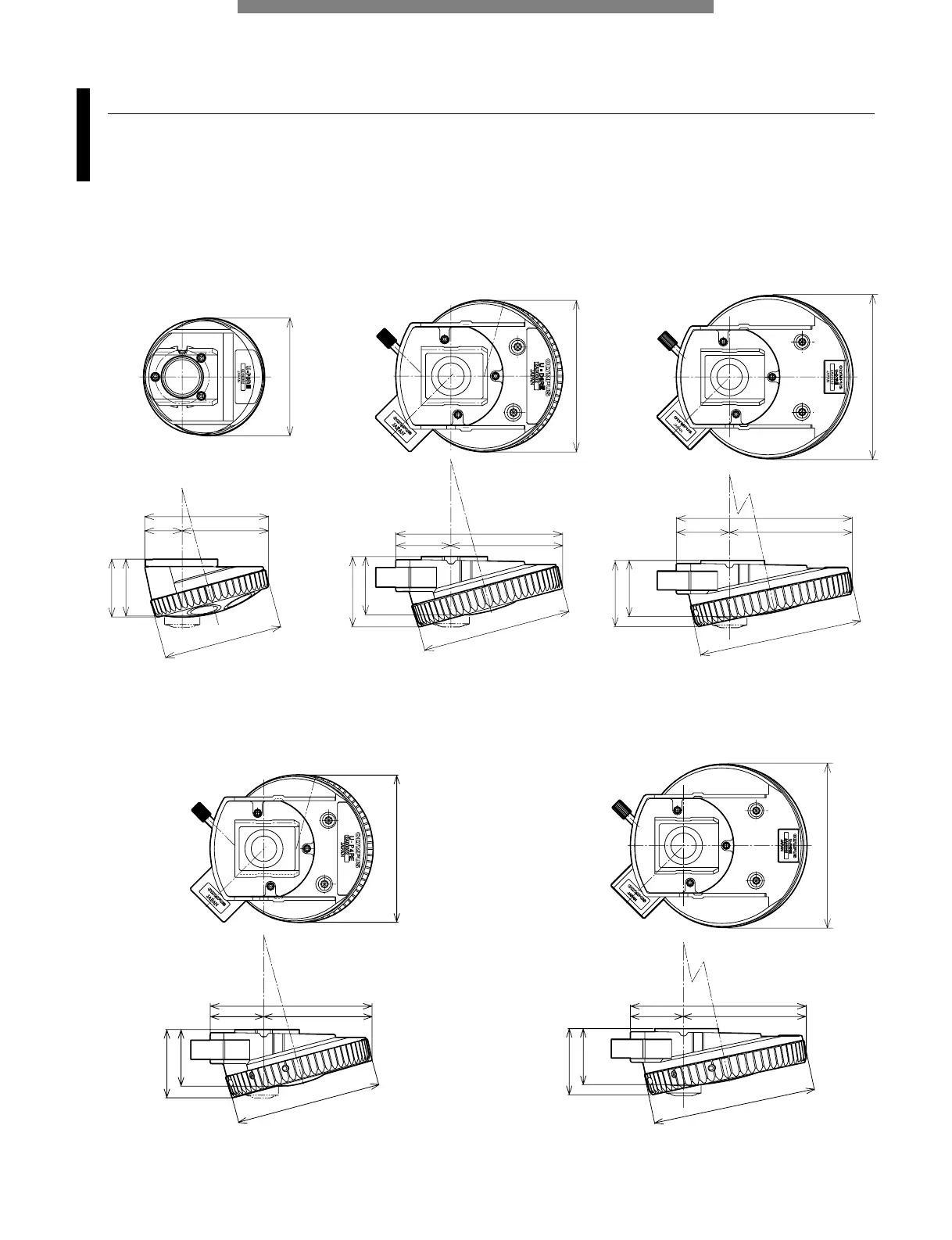

REVOLVING NOSEPIECES
U-P4RE
Centerable quadruple revolving nosepiece with
slider slot for DIC
U-P6RE
Centerable sextuple revolving nosepiece with slider slot for DIC
Weight: 1kg Weight: 1kg
104
(114.4)
38
40
48.2
76.4
ø102.4
116.5
40
47.2
(125.6)
38 87.6
ø116.5
34
116.5
40
ø116.5
(125.6)
38 87.6
47.2
Revolving nosepieces for BF objective lenses
Choose from following 6 types. For motorized nosepieces, refer to motorized unit page.
U-D6RE
Sextuple revolving nosepiece with slider slot for DIC
U-D6RE-ESD
Sextuple revolving nosepiece with slider slot for DIC
with ESD treatment
ø84
40.8
26.5 60.9
(87.4)
40
83
ø102.4
104
40
48.2
(114.4)
38 76.4
Weight: 520g Weight: 800g Weight: 980g
U-5RE-2
Quintuple revolving nosepiece
Unit: mm
U-D7RE
Septuple revolving nosepiece with slider slot for DIC
Insert the DIC dummy when not using the DIC slider
