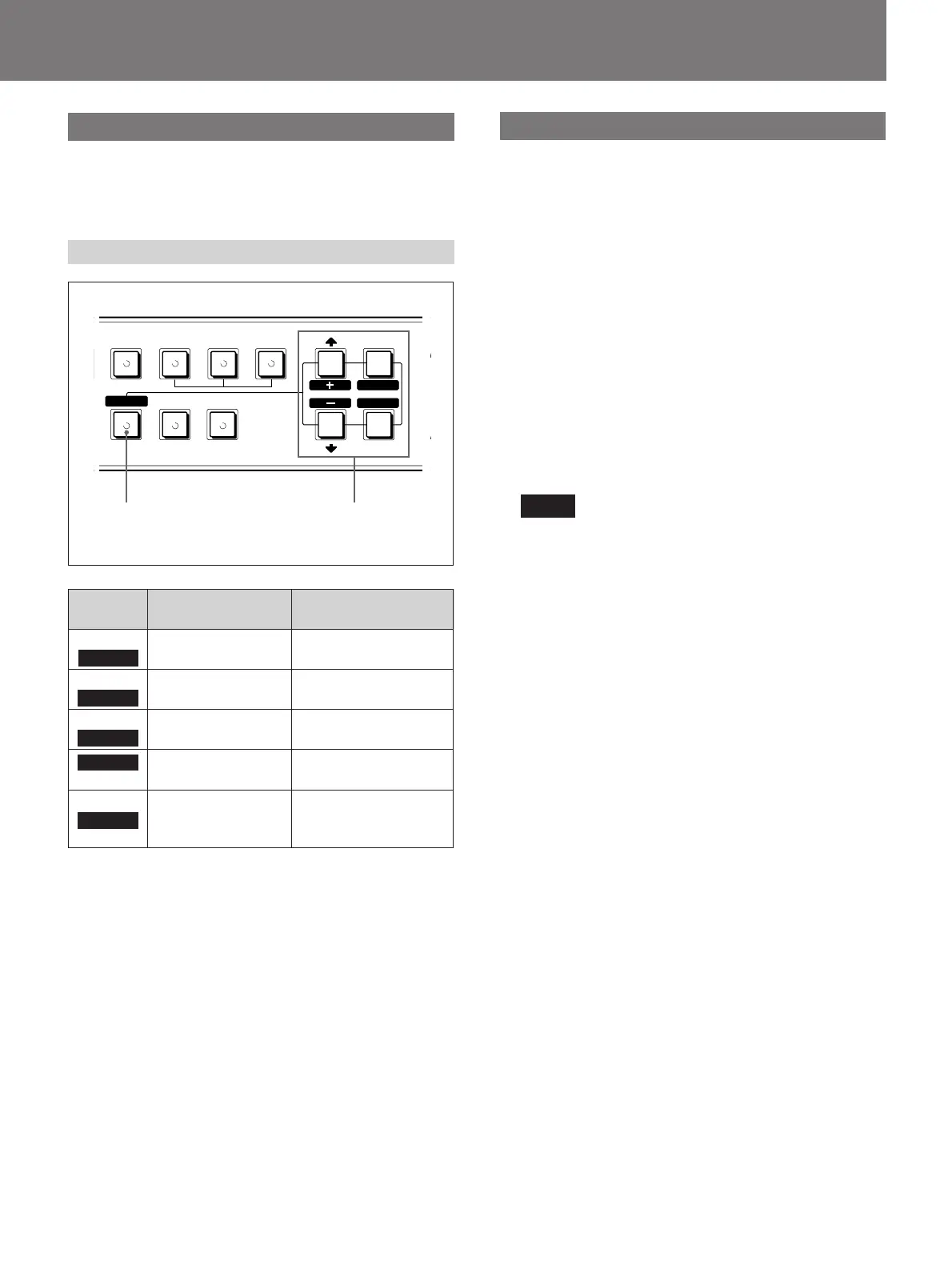

Operating through Menus
There are five buttons for menu operations on the front
panel of the monitor. To display the main menu, first press
MENU (EXIT). The buttons you can use appear at the
bottom of the menu screen.
Functions of the buttons
A
MENU
ENTER
M
EXIT
SELECT
BLUE
ONLY
UNDER
SCAN
OVER
SCAN
RESET
RGB/COMPONENT
ABB SPLIT
RESET
button
Buttons for
menu
operations
To select menu
item
return to the
previous menu.
decide a selected
item.
move the cursor (z)
upwards.
move the cursor (z)
downwards.
To adjust selected
menu item
return to the previous
menu.
select an item.
increase selected
value.
decrease selected
value.
reset current
adjustment value to the
factory setting.
Button
MENU
EXIT
ENTER
SELECT
>
+
–
.
RESET
(The above items in white type correspond to the marks in
the menu.)
The Contents of Menu Items
The following sentences show the details of each menu
items.
[ ] indicates the factory setting position.
1 Main menu
Select an item and press the ENTER (SELECT) button
to go to the following menu.
2 STATUS menu
Shows the current settings.
3 COLOR TEMP SELECT menu
Select the color temperature from among
D65(6500K+8MPCD), D56(5600K+8MPCD),
D93(9300K+8MPCD) and USER. USER is set to
D65(6500K+8MPCD) in the factory setting. You can
adjust or change the color temperature in USER mode
(a measuring instrument is needed).
[D65(6500K+8MPCD)]
Note
The color temperature of the USER mode can be
adjusted in the range from 3200K to 10000K.
You can adjust the color temperature of the USER mode
in the USER COLOR TEMP ADJUST menu (!¢) of
the user service mode.
For the details, see USER COLOR TEMP ADJUST
menu (!¢) on page 14.
4 CAPTION VISION menu
The monitor can display the signal with Caption Vision.
To display it, select the caption type in this menu.
[OFF]
5 PRESET menu
You can preset each control to a desired level and set it.
If you set PRESET to ON, the REMOTE indicator
lights up and the controls on the front panel do not
work. The monitor operates with the internal memory
settings. For adjustment, select the PRESET ADJUST
screen. [OFF]
6 CONFIG menu
Select an item for adjustment of the monitor.
7 PRESET ADJUST screen
Adjust CONTRAST, BRIGHT, CHROMA, PHASE,
VOLUME, APERTURE in the PRESET menu.
8 CHROMA SET UP menu
Set to ON to adjust the internal decoder for CHROMA
and PHASE (NTSC signal only) after AUTO ADJUST
screen (!£). [OFF]
