6

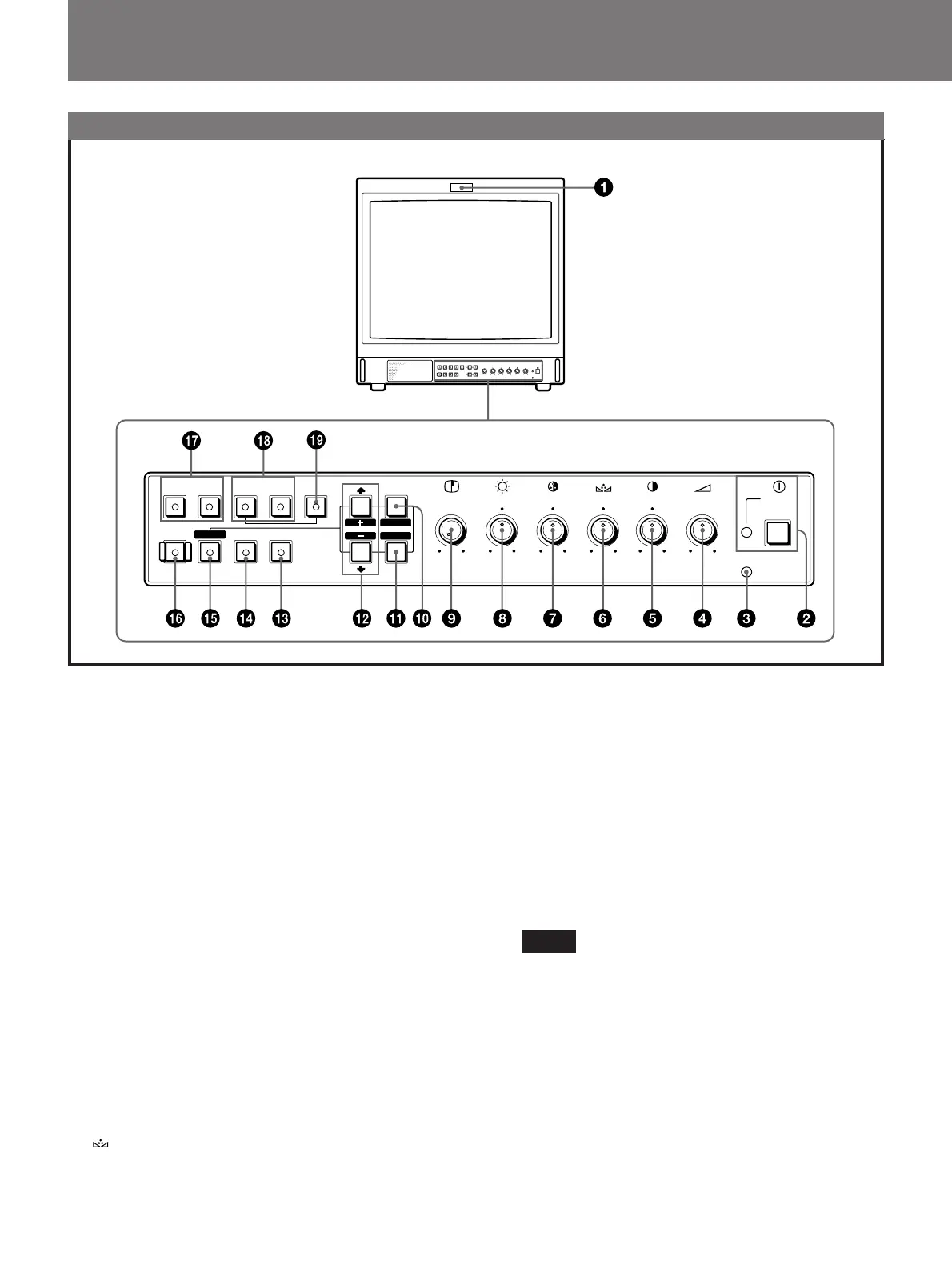

Front Panel
7 ¯ CHROMA (chrominance) control
Turn clockwise to make the color intensity stronger and
counterclockwise to make it weaker.
8 ¨ BRIGHT (brightness) control
Turn clockwise for more brightness and
counterclockwise for less.
9 ΠAPERTURE control
Turn clockwise for more sharpness and
counterclockwise for less.
When the control is set to MIN, the picture becomes flat
without need for corrections.
Note
The APERTURE, CHROMA, PHASE control settings
have no effect on the pictures of RGB signals.
The PHASE control setting has no effect on the pictures
of PAL signals and component signals.
!º MENU (EXIT) button
Press to make the menu appear.
Press to return to the previous screen in the menu.
!¡ ENTER (SELECT) button
Press to decide a selected item in the menu.
1 Tally indicator
This indicator lights up. The tally control connection is
needed.
For the pin assignment, see “Specifications” on page 22.
2 U POWER switch and indicator
Depress to turn the monitor on. The indicator will light
up in green. To turn the power off, press this again.
3 REMOTE indicator
This indicator lights up in the conditions below:
— When PRESET is set to ON or PRESET ADJUST in
the menu.
— When REMOTE (RS-232C) is set to REMOTE
ONLY or REMOTE & LOCAL in the menu, or
— When REMOTE ON is set via the REMOTE 1
terminal.
4 Á VOLUME control
Turn this control clockwise or counterclockwise to
obtain the desired volume.
5 > CONTRAST control
Turn clockwise to make the contrast stronger and
counterclockwise to make it weaker.
6 PHASE control
This control is effective only for the NTSC color
system. Turn clockwise to make the skin tones greenish
and counterclockwise to make them purplish.
Location and Function of Parts and Controls
A
RGB/COMPONENT
B
LINE
AB
REMOTE
POWER
VOLUME
CONTRAST
PHASECHROMABRIGHT
APERTURE
MENU
ENTER
MIN
OVER
SCAN
MAX
–+
MIN
MAX
PUR GRN MIN MAX MIN MAX
EXIT
SELECT
RESET
SPLIT
UNDER
SCAN
DEGAUSS
