Olympus OEV143 - OES Video System Diagram

19

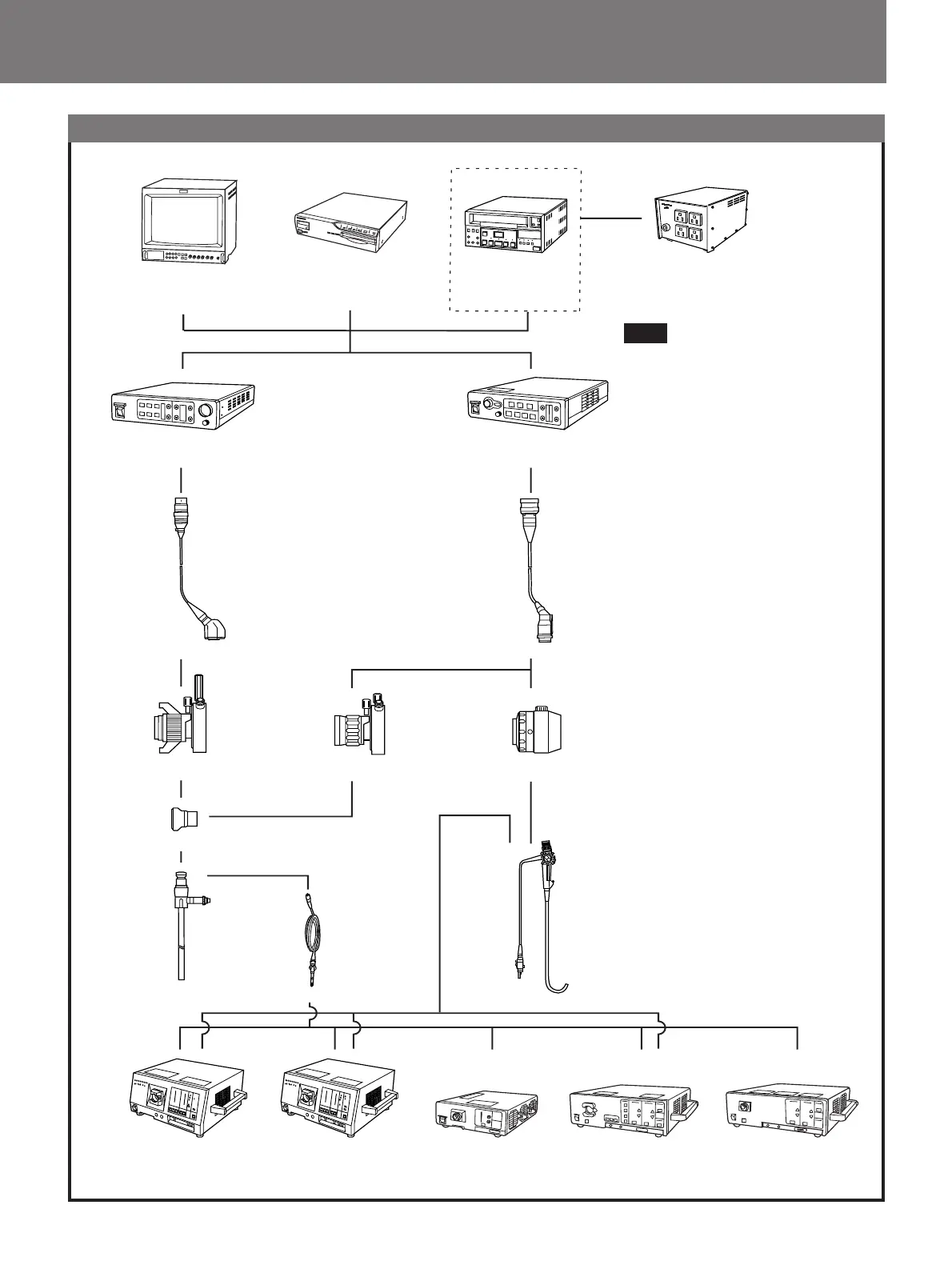

OES Video System
OES Fiber Scope
Color Video Monitor
(OEV 143/203)
VTR
(VO-7600/9600)
(SVO-9500MD)
(BR-S811/S611)
Isolation Transformer
(MB-631)
Camera Control Unit
(OTV-SX2C)
Camera Control Unit
(OTV-S5C)
Camera Head (MH-972N/972D/973N/973D)
3 CCD Camera Head
Video Adapter
Video Adapter
Video Adapter
Eyepiece
Light Guide
Color Video Printer
(OEP)
Endoscope
OES Halogen Light
Source
(CLE-10)
OES Halogen Light
Source
(CLE-F10)
OES Xenon Light
Source
(CLV-S20)
EVIS Universal Light
Source
(CLV-U20/U40)
OES Xenon Light
Source
(CLV-S)
— Power cords of equipment shown
inside the box written with the dotted
line must be connected to the AC
mains via the Isolation Transformer
MB-631.
— Use the VTR recommended in the
instruction manuals provided with the
OTV-SX2C/S5C.
Notes
