Olympus OEV143 - System Diagrams; EVIS Video System Diagram

18

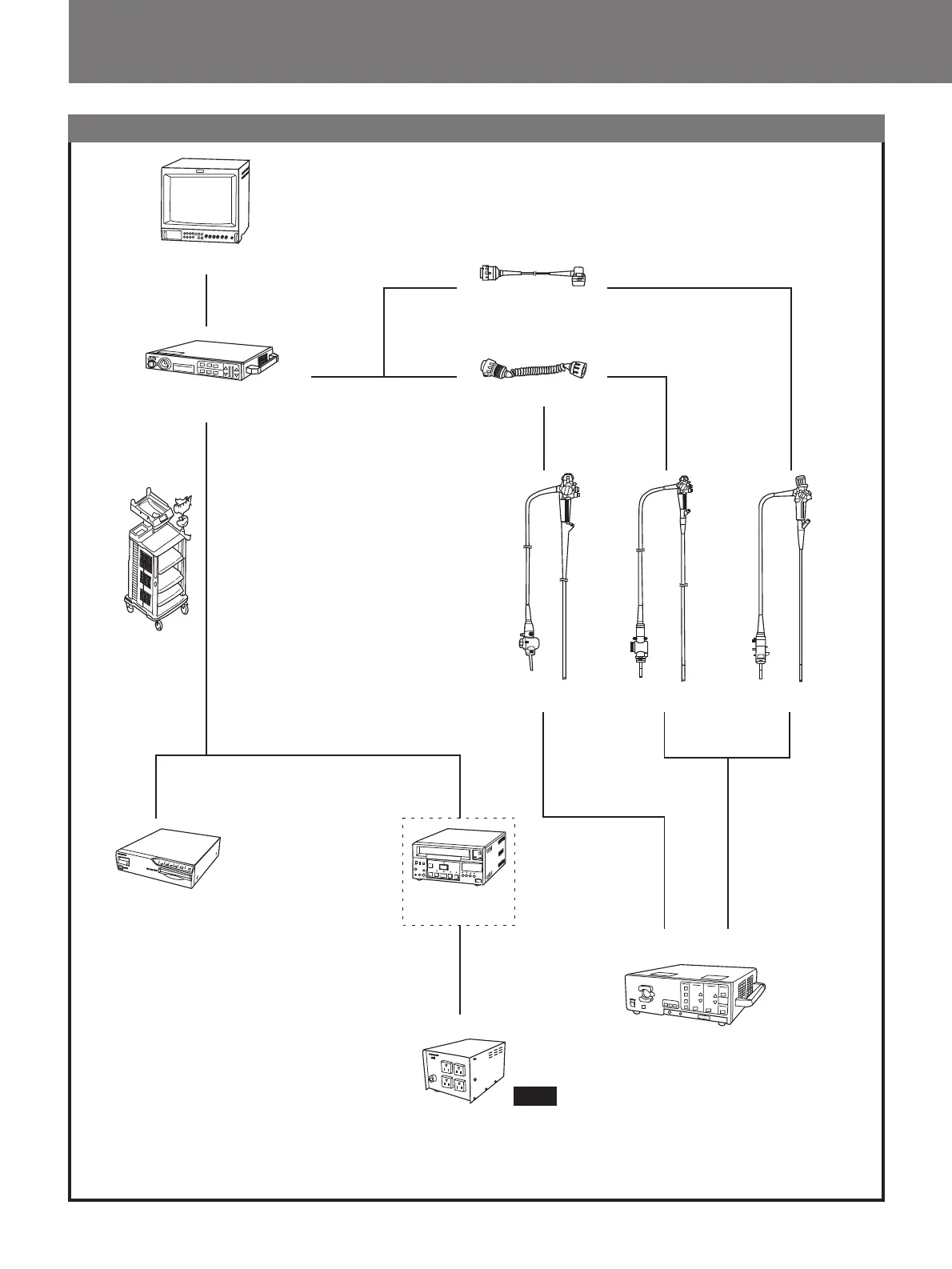

System Chart
EVIS Video System
Color Video Printer
OEP
i UP-1800/1850/5200MD/5250MD/2900MD/2950MD/2800/2850 j
i Isolation Transformer is necessary except when using the OEP j
Color Video Monitor
(OEV 143/203)
EVIS Video System Center
(CV -100/200/140)
Videoscope Cable 100/200
OES Video Converter
(OVC -100/200)
Mobile Workstation
(WM-30)
VTR
(VO-7600/9600)
(SVO-9500MD)
(BR-S811/S611)
OES Fiberscope
10/20/30/40 Series
EVIS Videoscope
200/230/240 Series
EVIS Videoscope
100/130/140 Series
Color Video Printer
OEP
(UP-1800/1850/5200MD/5250MD/
2900MD/2950MD/2800/2850)
(Isolation Transformer is necessary
except when using the OEP)
EVIS Universal Light Source
(CLV-U20, CLV-U40)
Isolation Transformer
(MB-631)
— Power cords of equipment shown inside the box written
with the dotted line must be connected to the AC mains via
the Isolation Transformer MB-631.
— Use the VTR recommended in the instruction manuals
provided with the CV-100/200/230/140/240.
Notes
