Installation and removal of the LCD hood.
Installation
Strongly push the mounting projections of the LCD hood as shown in the
figure into the guides above and below the LCD monitor window.
Removal
Remove the mounting projections of the LCD hood from the guides above
and below the LCD monitor window by widening the LCD hood.
Perform the final checks.
Visual Inspection
After sealing the Case, check the sealing part of front and rear lid visually
to confirm that the O-ring is not twisted or out of the groove and that no
foreign matter has been caught. Also check that the Case is not broken or
cracked.
CAUTION:
Hairs, fibers, and other narrow items are not very apparent, but they may
cause entry of water. In addition, pay special attention to breaks and cracks
on the Case.

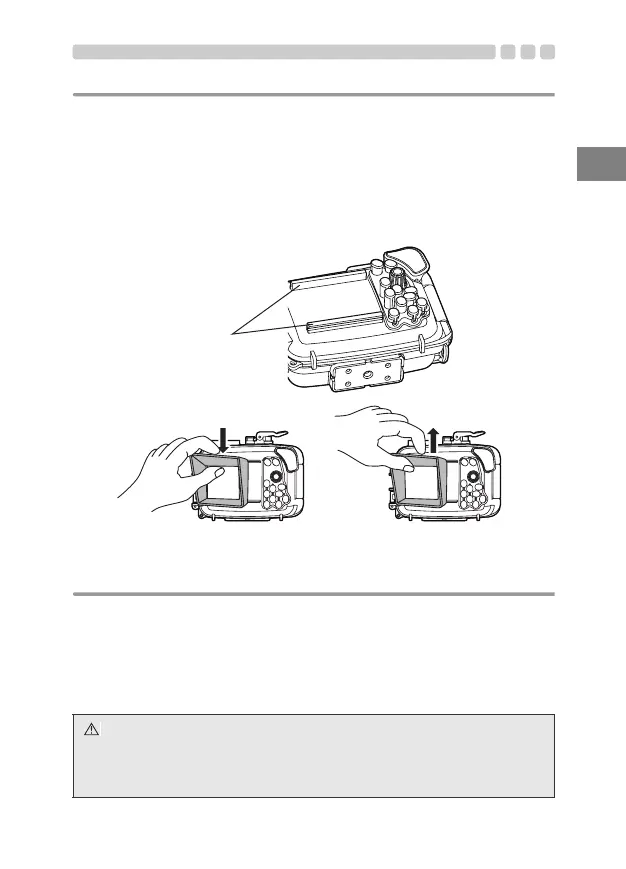

Guides
Installation Removal
