Olympus SZ-ADD - Optional Modules; Darkfield Adapter SZ-ADD

SZ2-ILA
10
OPTIONAL MODULES
}For the mounting methods, see the Assembly on page 8.

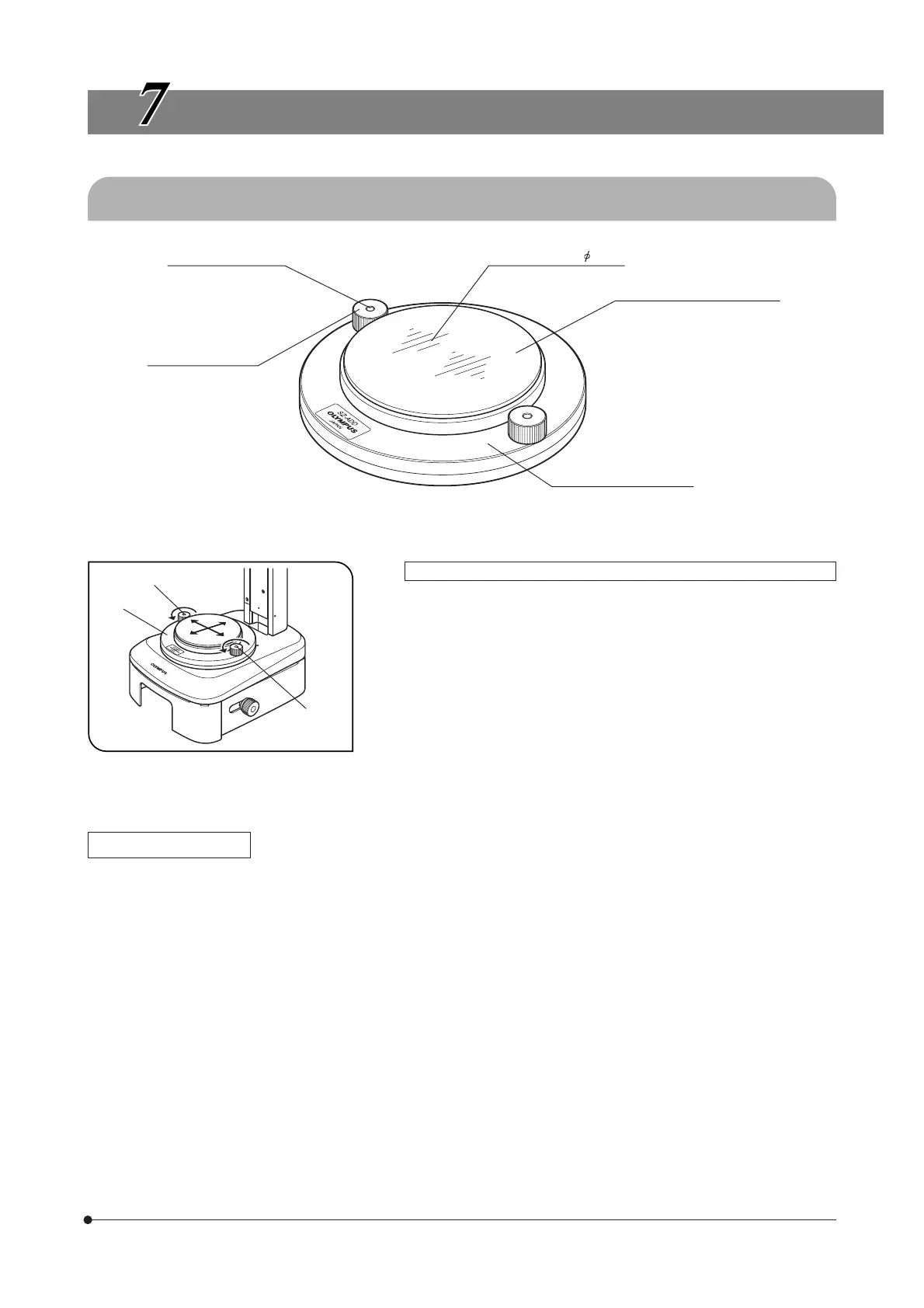

7-1 Darkfield Adapter SZ-ADD
Fig. 5
Accessory mount
The SZH-CLJ can be
used.
Centering clamping
knob
Illumination field: 9 mm
Stage glass (SP-C)
Use the stage glass provided
with the transmitted illumina-
tion attachment.
Main body
Drop into the position for
the stage plate.
Centering Procedure (Fig. 5)
1. Loosen the centering clamping knob @.
2. Place a sheet of thin paper as the specimen and observe it with the
lowest magnification of the microscope.
3. Turn on the illumination and move the main body ² so that the illumina-
tion field comes on the center of the field of view.
4. Tighten the centering clamping knob @.
#When using the SZH-CLJ, tighten the centering clamping knob par-
ticularly firmly so that it is not loosened by rotation of the SZH-CLJ.
Operating Precautions
# The SZ-ADD does not incorporate a light source. It can be used only in combination with the transmitted illumination
attachment.
# The observation brightness depends on the brightness setting of the transmitted illumination attachment.
The standard combination is with the SZ2-ILA. When high brightness is required, use the SZ2-ILA for the 100 W
halogen bulb.
# The peripheral light may be insufficient at low magnifications. It is recommended to use zoom magnifications of 2.5X
or more.
# When a 1.5X or higher-magnification auxiliary objective is used, the brightness may be insufficient.
When a 0.75X or lower-magnification auxiliary objective is used, the peripheral light may become insufficient.
@
@
²
