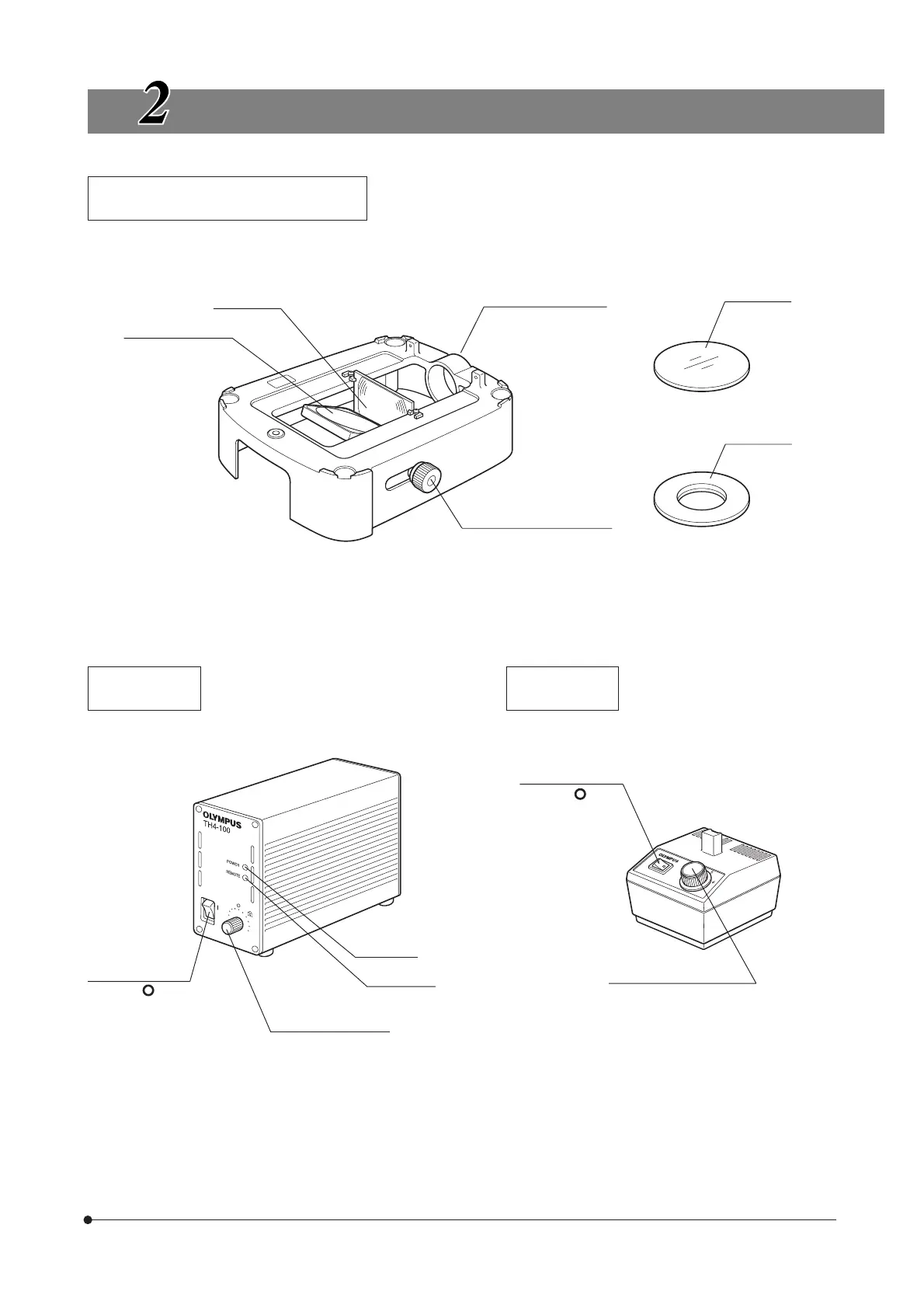

NOMENCLATURE
Transmitted Illumination Attachment
SZ2-ILA
Fresnel lens
Mirror
Planar mirror/Light
scattering mirror
Illuminator mount port
Mirror rotation/sliding knob
Rotation: 360°
Sliding: 30 mm
Filter holder
Stage glass
SP-C
Power Supply
TH4
For details, refer to the instruction manual.
Main switch
“ I ”: ON. “ ”: OFF
Intensity control knob
Power LED
Remote LED
Power Supply
TL3
Main switch
“ I ”: ON. “ ”: OFF
Intensity control knob
Voltage position selectable
from 3, 4, 5 or 6
