Selecting the Light Path (SZX-TR30)

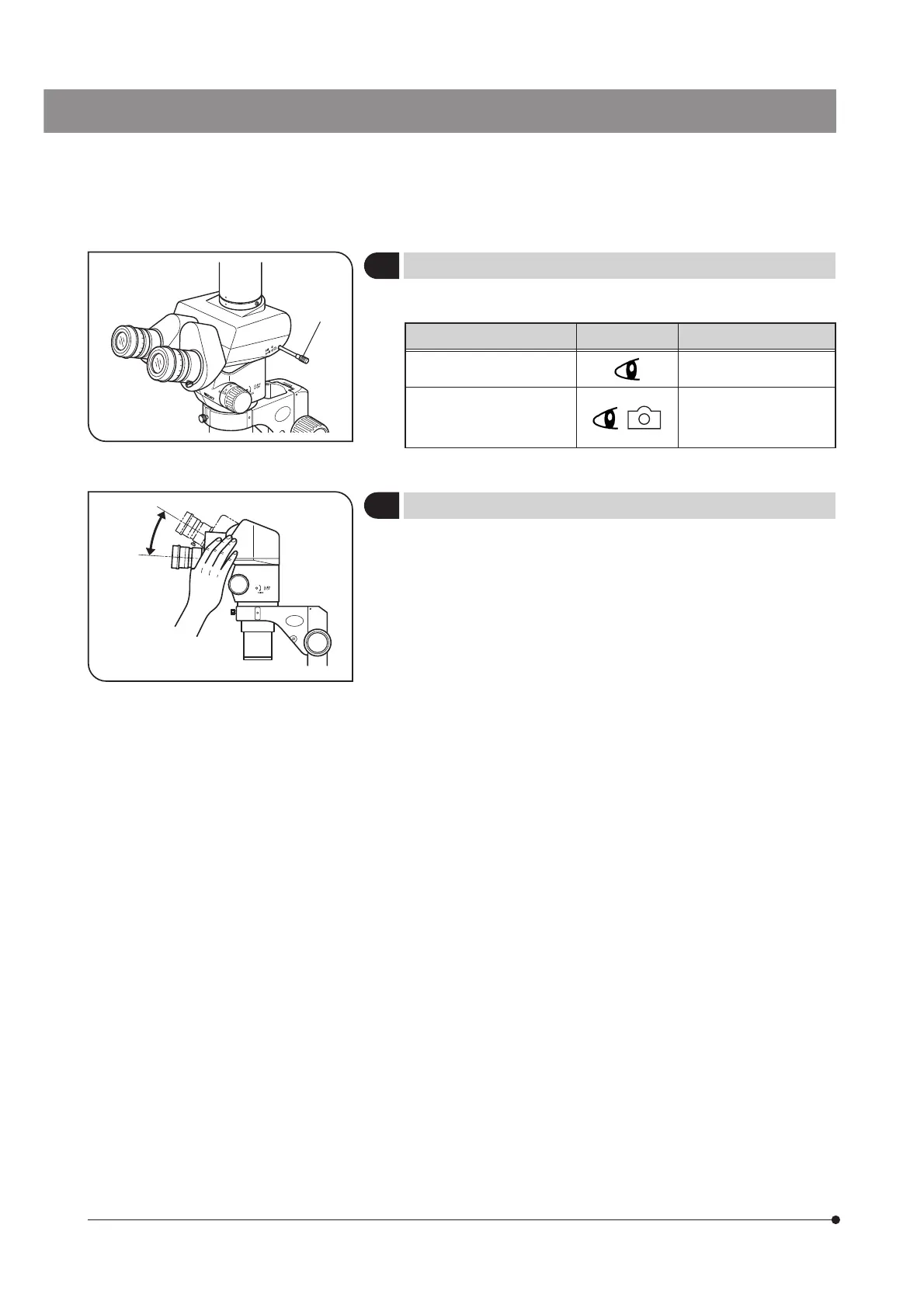

(Fig. 7)
Slide the light path selector knob @ to select the desired light path.
Light Path Selector Knob Indication Light Path Ratio
Pushed-in position Binocular 100%
Pulled-out position
Binocular 20%
TV & Photo 80%
6
Adjusting the Tilt (SZX-TBI)
(Fig. 8)
}Adjust the height and tilt of the observation tube to obtain the most com-
fortable viewing position.
Holding the binocular section with both hands, raise or lower it to the
desired position.
#Never attempt to force the binocular section past the upper or lower
stop position. Applying excessive force could destroy the limiting
mechanism.
Fig. 7
Fig. 8
5 to 45°
1
