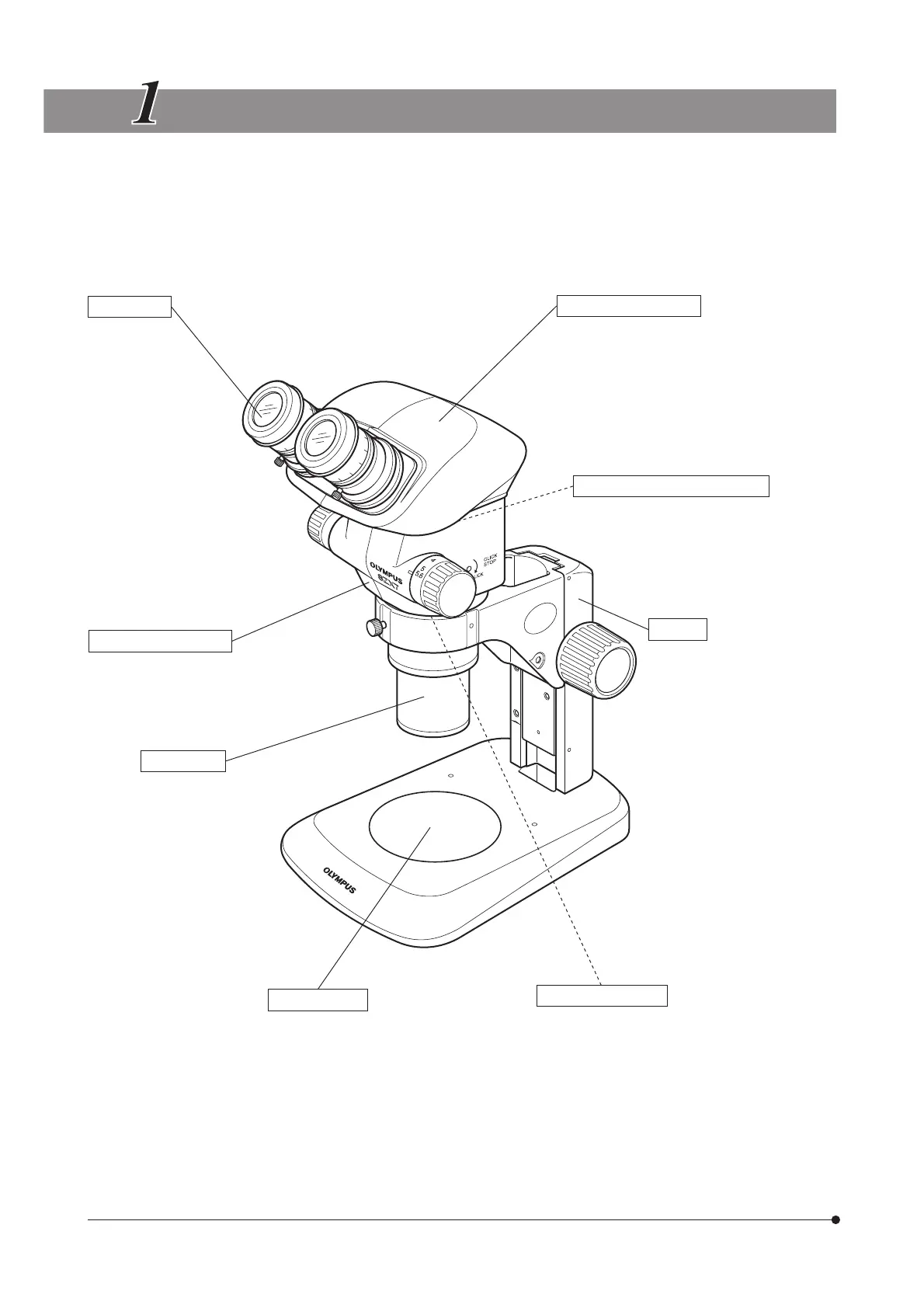

NOMENCLATURE
* Modules marked * are given the ESD specifications.
(Note) The modules shown in the following diagram are merely the typical examples. For the modules that are not shown
below, please consult Olympus or the latest catalogues.
Eyepiece
· WHSZ10X
*
· WHSZ10X-H
*
· WHSZ15X-H
*
· WHSZ20X
*
· WHSZ20X-H
*
· WHSZ30X-H
*
Microscope Body
· 7X Zooming Microscope Body: SZX-ZB7
*
Objective
· DFPL0.5X-4
*
· DFPL0.75X-4
*
· DFPLAPO1X-4
*
· SZX-ACH1X
*
· SZX-ACH1.25X
*
· DFPL1.5X-4
*
· DFPL2X-4
*
Stage Plate
· Black/White: SZ2-SPBW
*
(ESD protection on black surface)
· Transparent: SP-C
· Other stage adapter
Observation Tube
· Binocular Tube: SZX-BI45
*
· Binocular Tube: SZX-BI30
· Trinocular Tube: SZX-TR30
· Tilting Tube: SZX-TBI
Stand
Note 1)
· Standard Stand: SZ2-ST
*
· LED Illuminator Stand: SZ2-ILST
Intermediate Attachment
· AS Unit: SZX-AS
· Eye Point Adjuster: SZX-EPA
· Coaxial Reflected Light Illuminator: SZX-ILLC
Auxiliary Sleeve
· SZ2-ET
*
Note 1) The microscope can also be mounted on the SZ2-STU1/STU2/STU3 large stand as well as on the SZX-ST SZX
standard stand by using the SZ2-STB1/SZ2-STS focusing arm.
