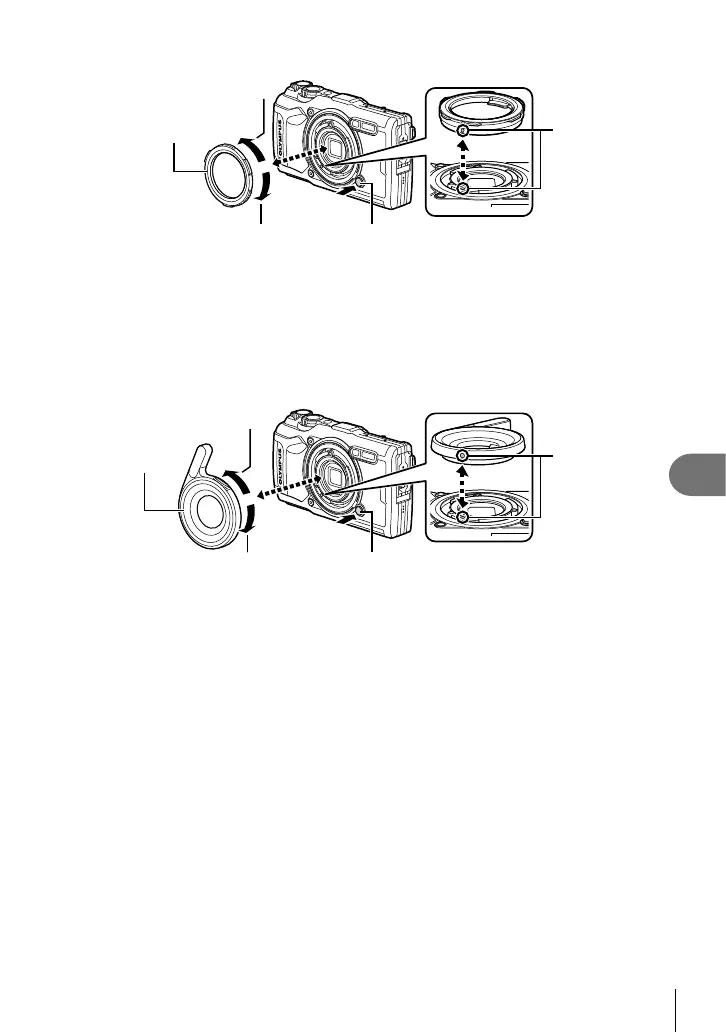

 Removing and attaching the lens ring
Mounting
marks
Lens ring
Lens ring release button
“Remove” direction
“Attach” direction
Removing the lens ring
Keeping the lens ring release button pressed, rotate the ring in the “remove” direction.
Attaching the lens ring
Align the mounting marks and rotate the ring in the “attach” direction until it clicks into
place.
 Attaching and removing LED light guides
LED light guide
Mounting
marks
Lens ring release button
“Remove” direction
“Attach” direction
Attaching light guides
Align the mounting marks and rotate the guide in the “attach” direction until it clicks into
place.
Removing light guides
Keeping the lens ring release button pressed, rotate the guide in the “remove”
direction.
