3.3 Connection of the transducer
23
TB-0545PC/IC/FC, TB-0535PC/IC/FC, TB-0520IC, TB-0510IC
INSTRUCTION MANUAL
Ch.3
6 Turn the rotation knob clockwise with a light force, holding the transducer by the other
hand until the rotation knob stops.

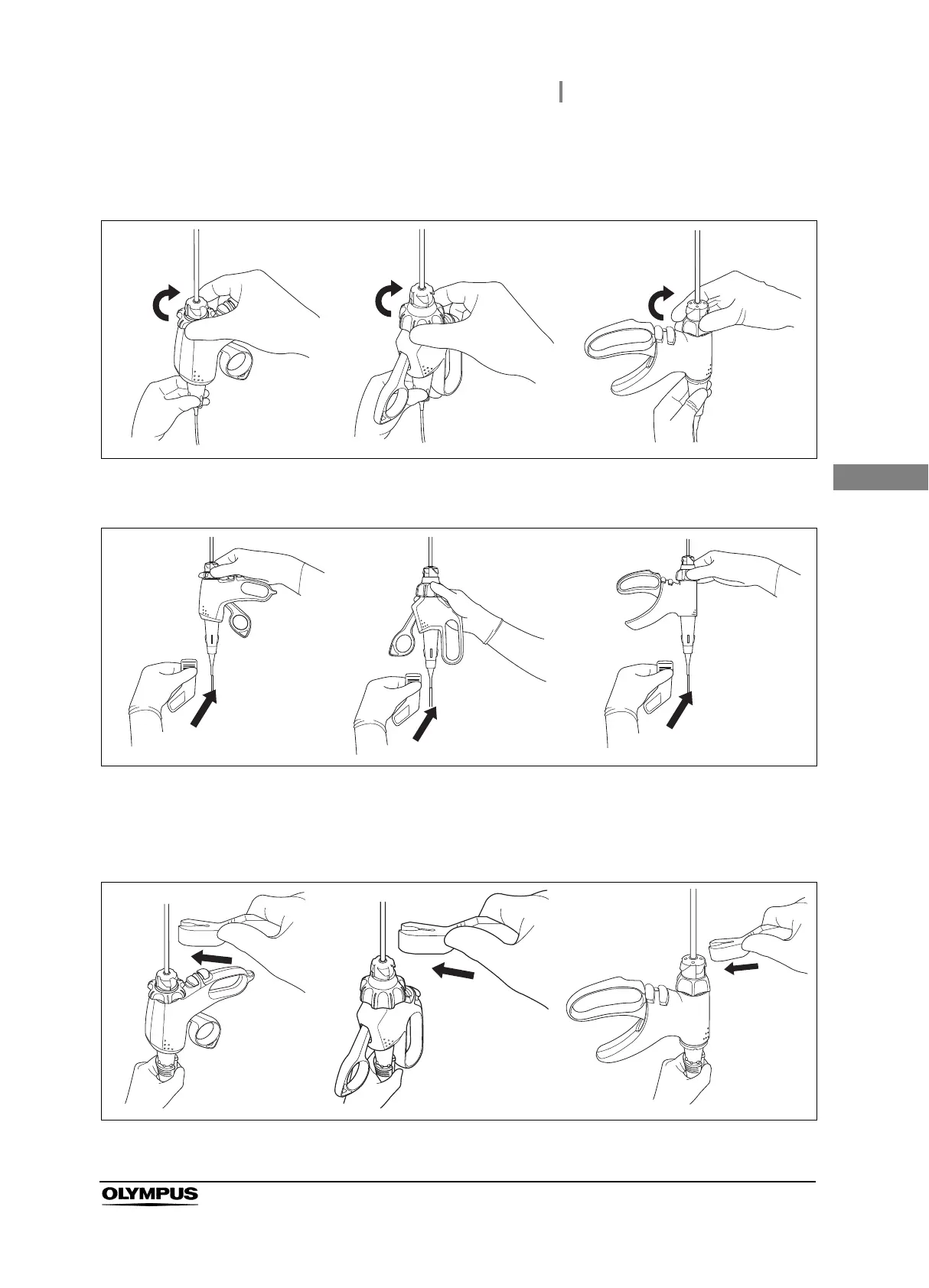

Figure 3.2
7 Mount the stabilizer on the transducer.
Figure 3.3
8 Grasp the stabilizer grip mounted on the transducer and attach the head of the torque
wrench to the proximal end of the shaft with the side marked “THIS SIDE UP” facing
the distal end of the shaft.
Figure 3.4
Pistol grip Inline grip
Front-actuated
grip
Pistol grip Inline grip
Front-actuated
grip
Pistol grip Inline grip
Front-actuated
grip
