3.3 Connection of the transducer
TB-0545PC/IC/FC, TB-0535PC/IC/FC, TB-0520IC, TB-0510IC
INSTRUCTION MANUAL
Ch.3

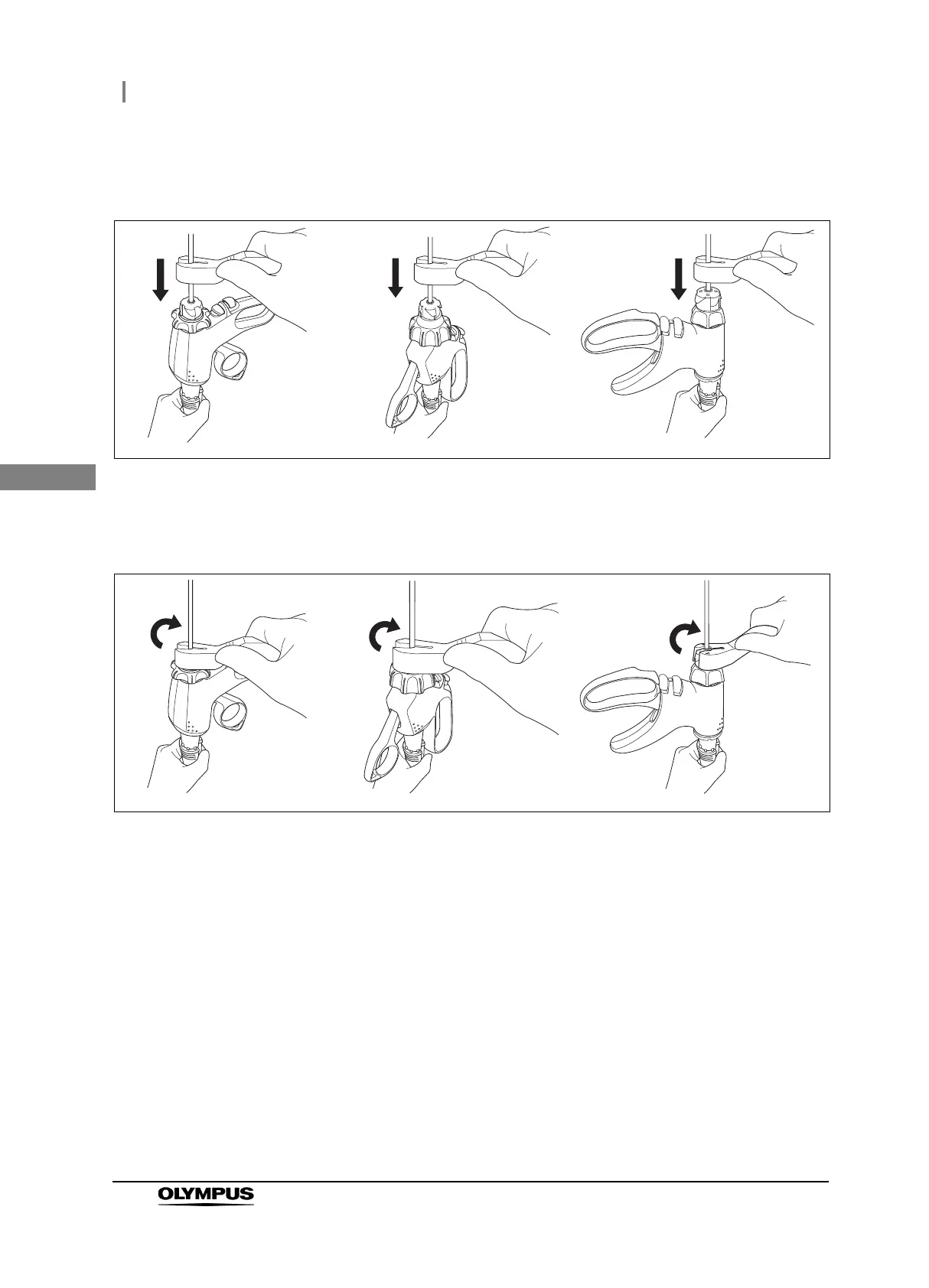

9 Grasp the stabilizer grip mounted on the transducer and attach the head of the torque
wrench down onto the rotation knob.
Figure 3.5
10 Grasp both the grip of the torque wrench and the stabilizer mounted on the transducer
and then rotate the rotation knob clockwise slowly with the torque wrench until the
torque wrench clicks.
Figure 3.6
Moving to next page
Pistol grip Inline grip
Front-actuated
grip
Pistol grip Inline grip
Front-actuated
grip
To Next Page
