3.3 Connection of the transducer
25
TB-0545PC/IC/FC, TB-0535PC/IC/FC, TB-0520IC, TB-0510IC
INSTRUCTION MANUAL
Ch.3
CAUTION
• In the case of the inline grip model, do not hold the grip handle and transducer
together while rotating the rotation knob with the torque wrench.

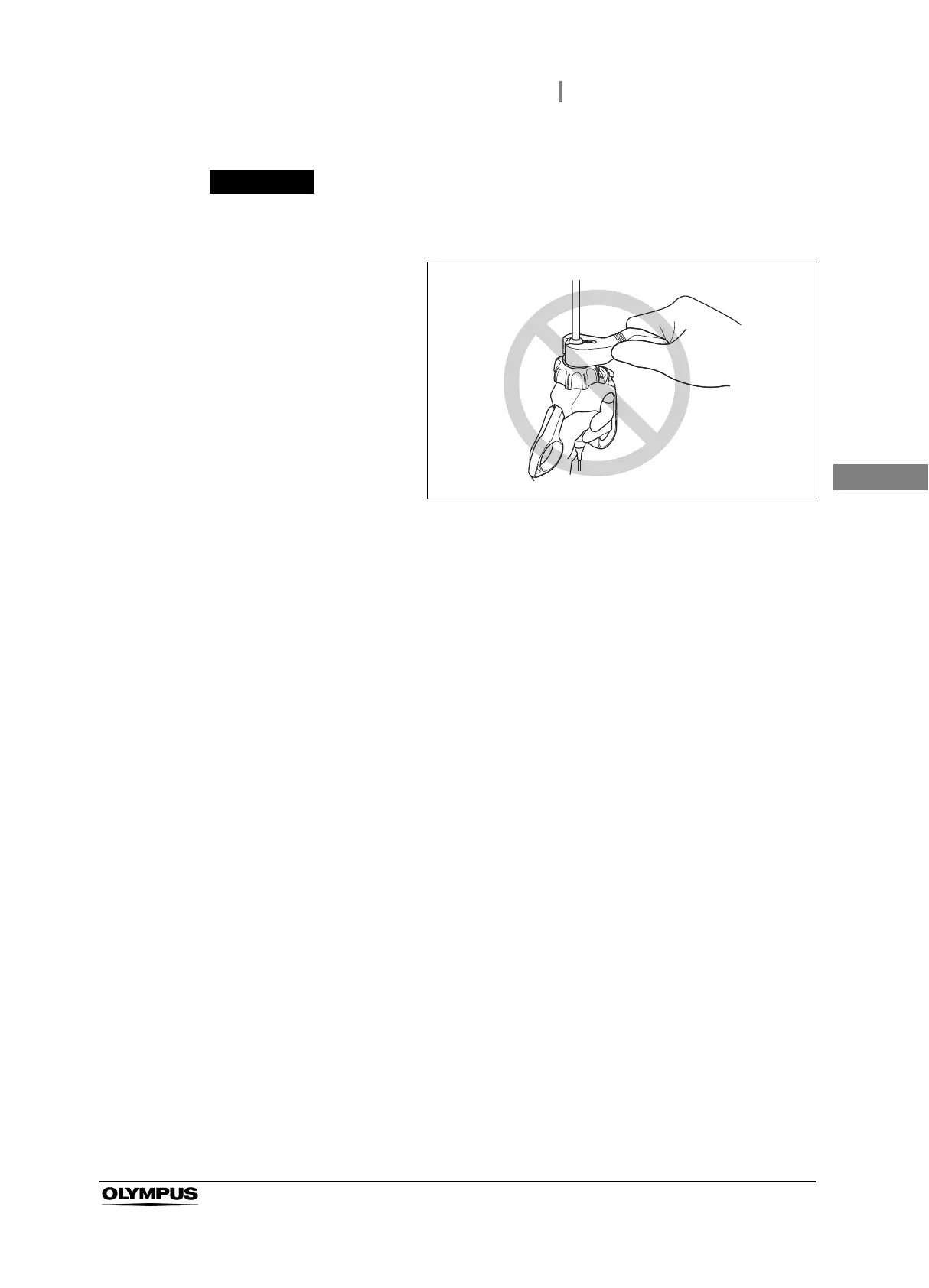

Figure 3.7
• Do not dispose of the torque wrench and the stabilizer but keep them in a sterile
condition, because they will be used for changing and withdrawing the transducer
during the procedure and post-procedure.
11 Detach the torque wrench from the stabilizer.
12 Confirm the following:
• The grasping section at the distal end of the shaft can be opened and closed
smoothly when you move the control handle until the control handle strikes the grip
handle to stop.
• The rotation knob can be turned smoothly when the grasping section is open.
Should any irregularity be observed, replace the THUNDERBEAT instrument with a
new one.
Inline grip
