Page 13 of 76
Issue 20 : July 2012
WM--P1 SERIES WORKSTATIONS
4 TOOLS & TEST EQUIPMENT
4.1 Standard Tools required
Flat blade screwdriver Torque driver
No 2 Pozidrive tool bit No 3 Pozidrive tool bit
4mm Hex tool bit 8mm Hex tool bit
10mm Hex tool bit 10mm A/F socket
13mm A/F Slim socket Ball driver 6mm A/F
Short No 2 Pozidrive screwdriver Torx bit T30
Torque wrench (1/2” drive).. M12 tap
Britool part no AVT300A Torque range 5 to 33 Nm.
Insulation tester which works at 500Vdc. --
4.2 Specialised Tools
Castor spanner WM--P1 -- K10005023 --used with 1/2” drive torque wrench.

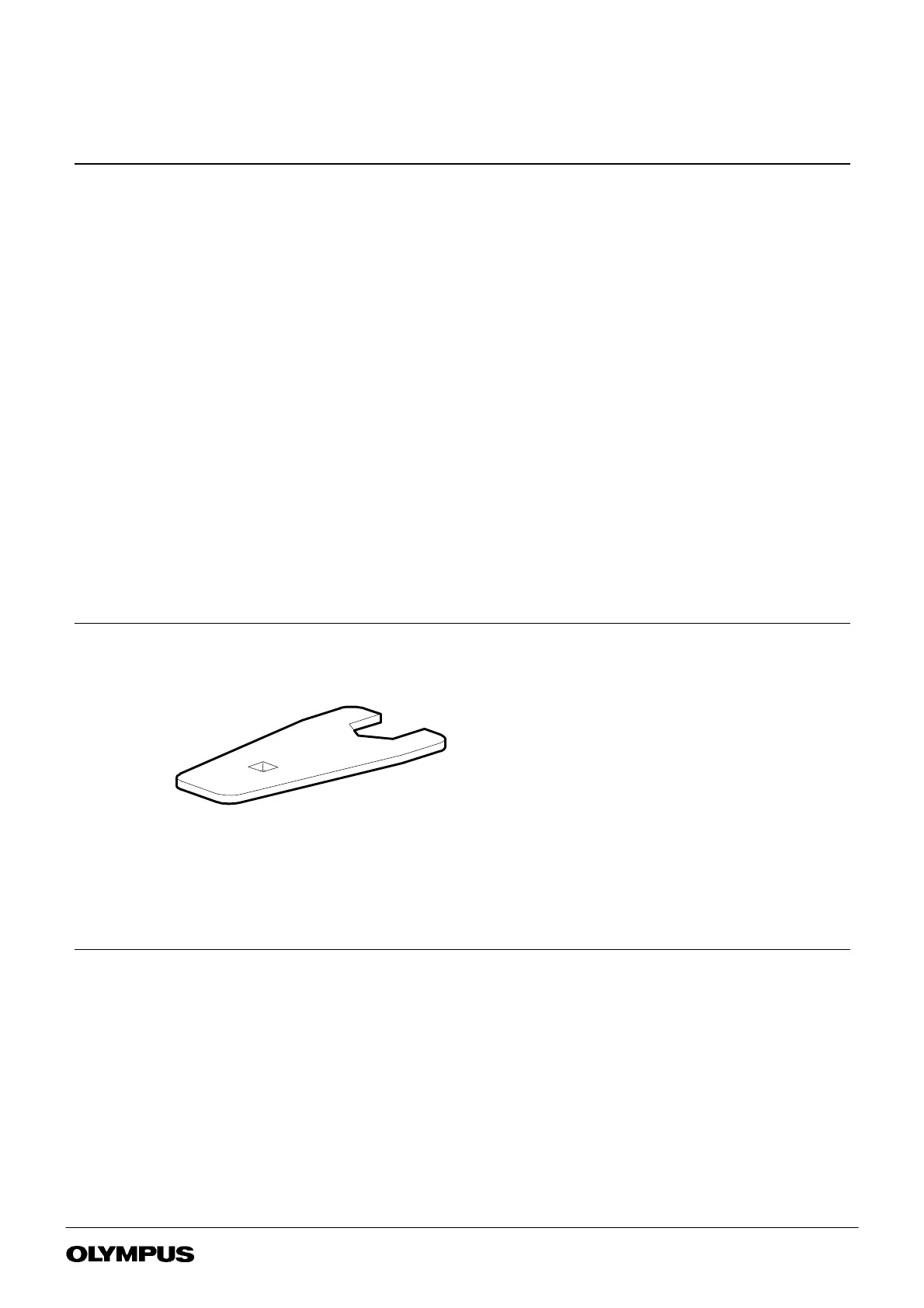

FIGURE 4-1
CASTOR SPANNER WM--P1 --
K10005023
4.3 Consumables
Loctite 243 10ml bottle -- part number K10006486
Loctite 243 -- part number 3001857
