Olympus WM-WP1 - Maj- 183 Scope Pole Kit

Page 48 of 76
Issue 20 : July 2012
WM--P1 SERIES WORKSTATIONS
8.5 MAJ- 183 SCOPE POLE KIT

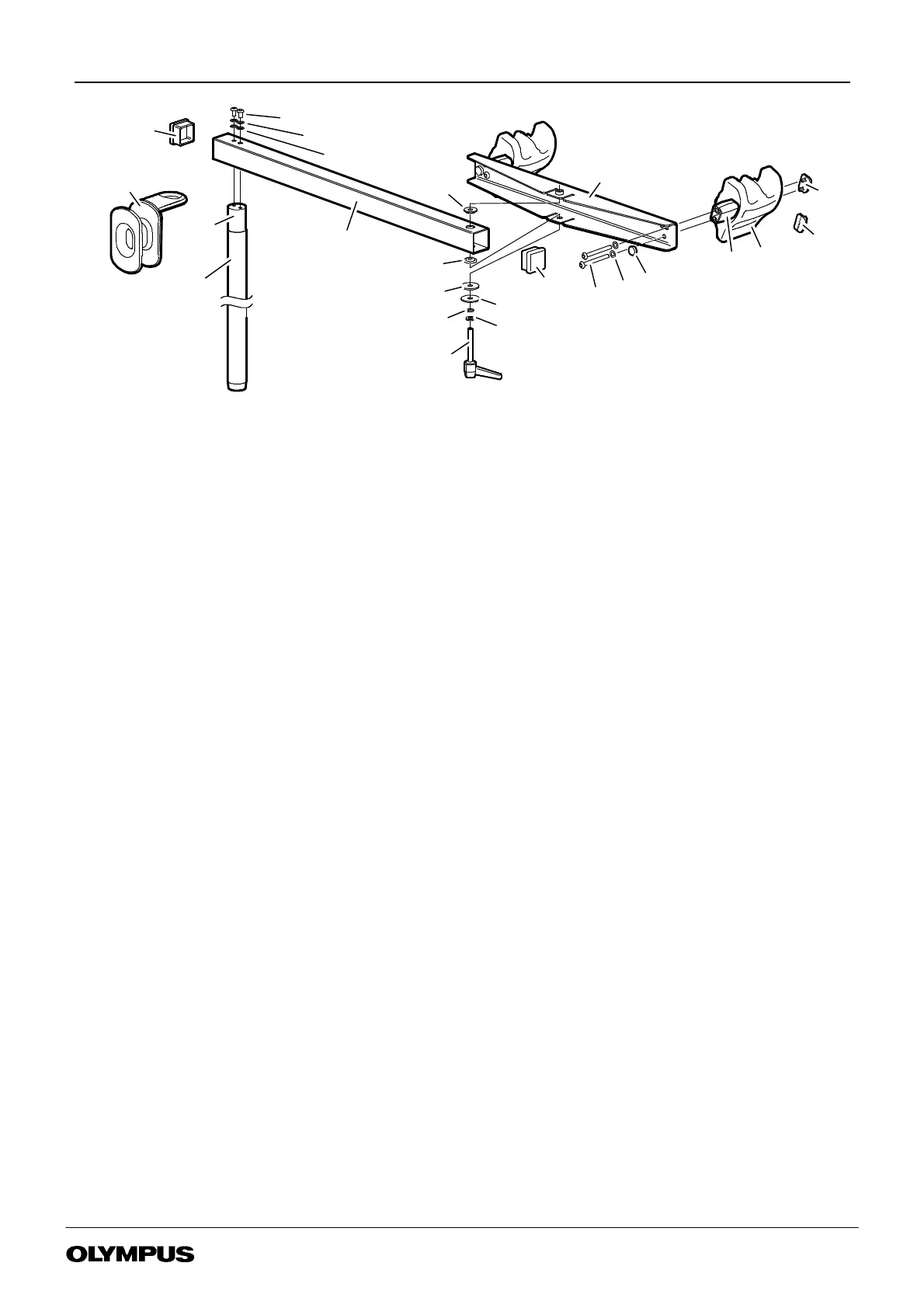

FIGURE 8-5
MAJ--183 SCOPE POLE KIT
9
8
1
9
13
2
18
2
17
2
2
3
10
10
29
14
15
16
11 25 22
A/R
12
2
18
2
5
2
4
2
6
7
28
22
A/R
19
2
MAJ- 183 SCOPE POLE KIT p/no K10000124
Item Description Part No Qty
Torque
Remarks
1 POLESCOPE ...................................... -- 1 -- A
2 ARMSCOPE ....................................... -- 1 -- A
3 HANGERSCOPE.................................... -- 1 -- A
4 SCOPE HOLDER WELDED ASSY WM--260 ................ K7504161 2 -- --
5 SPACERSCOPEPOLEWM--260 ........................ K7504164 2 -- --
6 LOGO LH SCOPE HOLDER (WM--260) .................... K7504165 2 -- --
7 LOGO RH SCOPE HOLDER (WM--260) .................... K7504166 2 -- --
8 CABLEHANGER--WITHHOLE ......................... K10001376 1 -- --
9 PLUG30mmSQ1.5--2mmWALLBLACK................... K10004147 2 -- --
10 BUSHFLANGED .................................... K10000126 2 -- --
11 HANDLE LEVER .................................... K10000439 1 -- --
12 SCREWM5x50HEXSKTBUTTHD ..................... K3921288 4 -- --
13 SCREWM5x8HEXSKTBUTTHD ...................... 3109640 2 -- --
14 WASHERPLAINM6x25DIA 1.5THK .................... 3072720 1 -- --
15 WASHERSINGLECOILM6 ............................ 3072771 1 -- --
16 WASHERM6STSTEEL ............................... K3921292 1 -- --
17 WASHERM5 ....................................... 3117162 2 -- --
18 WASHERCRINKLEM5STST .......................... 3920499 6 -- --
19 FOOTSELFADHESIVEDIA12.7 ........................ 3116247 2 -- --
20 ALLENKEY3MMA/F ................................. 3066142 1 -- NS
21 SPARE
22 ADHESIVELOCTITE638 .............................. 3001067 A/R -- --
23 MAJ--183 INSTRUCTIONS FOR USE ..................... K10003415 1 -- NS
24 PLUGSCOPEPOLE ................................. K10003390 1 -- --
25 WASHER6.4x24x2NATURALNYLON6.6 ................ K10004146 1 -- --
Remarks
NS Not shown
A Repair by replacing whole accessory.
