WM--P1 SERIES WORKSTATIONS
8.8 MAJ- 188 / MAJ - 1614 CO
2

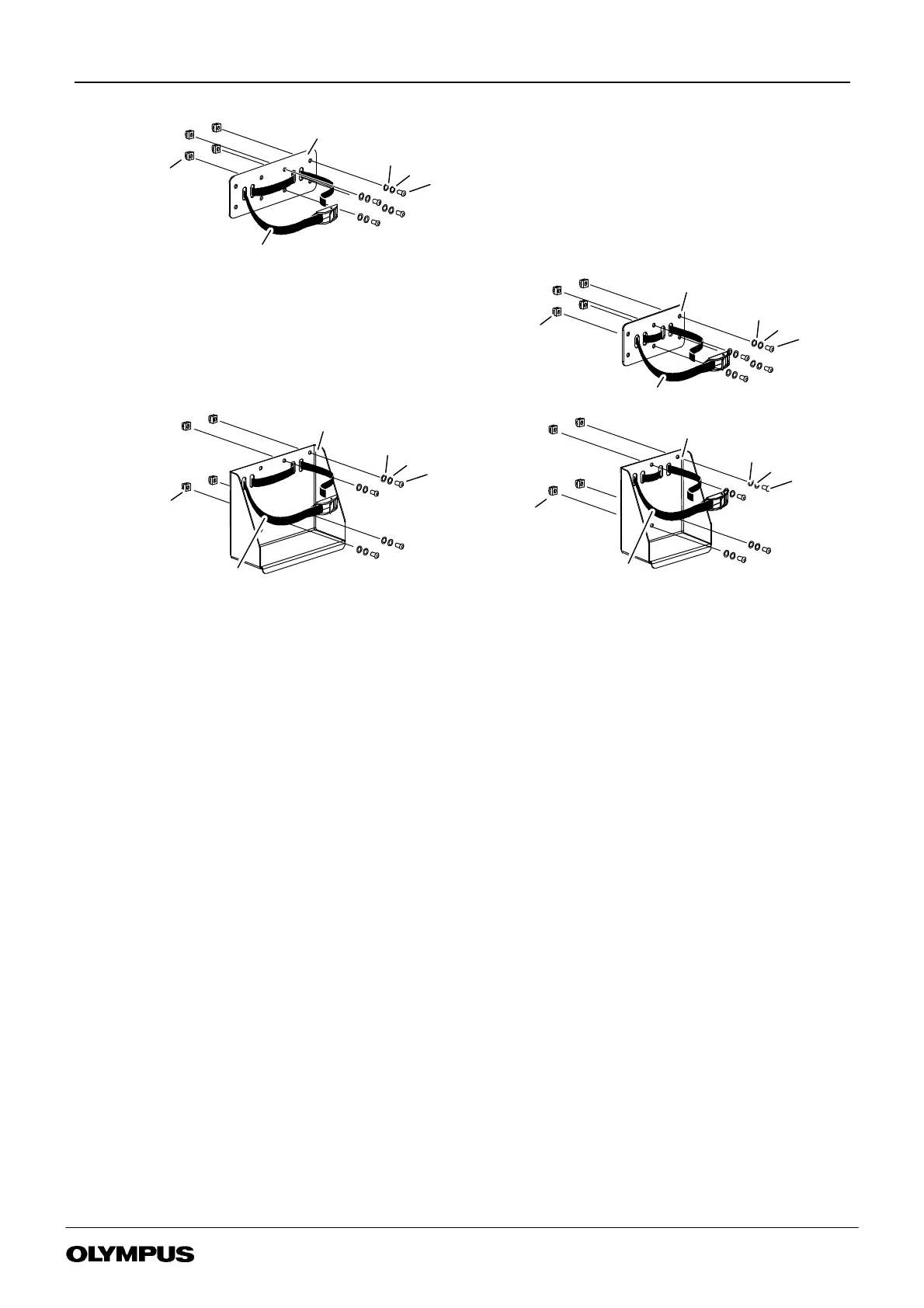

CYLINDER BRACKET KIT
FIGURE 8-8
MAJ--188 / 1614 CO
2
CYLINDER BRACKET
MAJ- 188
MAJ- 1614
6
4
5
4
4
4
3
7
4
2
6
4
5
4
4
4
1
7
4
3
6
4
5
4
4
4
2
7
4
3
3
6
4
5
4
1
7
4
3
4
4
4
4
MAJ- 188 CO
2
HOLDER 205mm DIA p/no K10001113
MAJ- 1614 CO
2
HOLDER 140mm DIA MAX p/no K10003499
Item Description Part No Qty
Torque
Remarks
1 CRADLE CO
2
BOTTLE 205mm DIA ....................... -- 1 -- C
CRADLE CO
2
BOTTLE 89--140mm DIA .................... -- 1 -- C
2 STRAP PLATE CO
2
BOTTLE 205mm DIA .................. -- 1 -- C
STRAP PLATE CO
2
BOTTLE 89--140mm DIA ................ -- 1 -- C
3 CAMBUCKLESTRAP0,75mLONGBLACK................. K10003981 2 -- A,B
4 SCREWM6HEXSKTBUTTHD ......................... 3920327 8 -- A,B
5 WASHERCRINKLEM6 ............................... K3921473 8 -- A,B
6 WASHERSTSTEELM6 ............................... K3921292 8 -- A,B
7 SPRINGNUTM6 .................................... K7503840 8 -- A,B
8 ALLENKEY4MMA/FSHORT........................... 3066011 1 -- A,B, NS
9 MAJ--188/1614 I NSTRUCTIONS FOR USE ................. K10003501 1 -- A,B NS
REMARKS
A K10001113 --MAJ--188 CO
2
HOLDER 205mm DIA MAX
B K10003499 -- MAJ--1614 CO
2
HOLDER 140mm DIA MAX
C Repair by replacing whole accessory.
NS Not Shown
