WM--P1 SERIES WORKSTATIONS

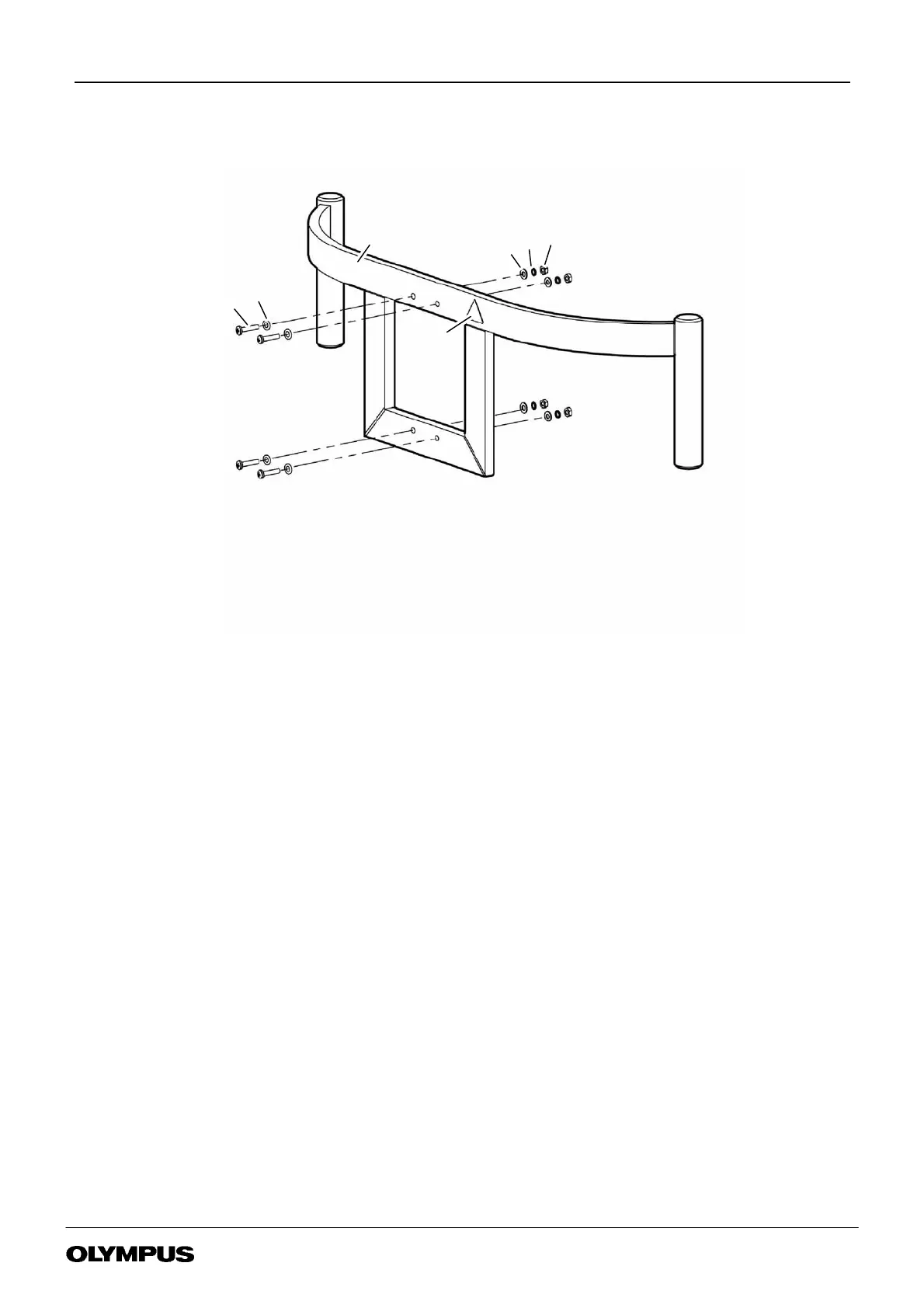

8.17 MAJ- 1610 LCD MANOEUVRING HANDLE
FIGURE 8-17
MAJ--1610
LCD MANOEUVRING HANDLE
6
4
1
2
5
4
4
4
4
4
3
4
MAJ- 1610 LCD MANOEUVR ING HANDLE p/no K10003688
Item Description Part No Qty
Torque
Remarks
1 LCDMANOEUVRINGHANDLE--WELDED.................. K10003665 1 -- --
2 LABEL--WARNING TRIANGLE 12mm HIGH ................. K10003463 1 -- --
3 SCREWM4x20PANHDSTNIPLPOZI ................... 3093115 4 -- --
4 WASHERM4 ....................................... 3071219 8 -- --
5 WASHERM4SINGLECOIL ............................ K10000038 4 -- --
6 NUTM4 ........................................... 3038653 4 -- --
7 SPANNER7MMA/FCOMBINATION ...................... K3921432 1 -- NS
8SPARE
9SPARE
10 SPARE
11 INSTRUCTIONS MAJ--1610 ............................ K10003703 1 -- NS
REMARKS
NS Not shown
