WM--P1 SERIES WORKSTATIONS
6.11 Shelf replacement
Shelf kits : -- MAJ--198 WM--NP1 SHELF KIT (NARROW) -- K10001429
MAJ--199 WM--WP1 SHELF KIT (WIDE) -- K10001430
(1) To remove shelf (item 22) refer to Figure 6-8.
(2) If the shelf is to be refitted at the same height make carefull note of the fixing holes used.
(3) Using 6mm hex drive tool bit in power torque tool release four screws (item 36) with washer crinkle (item 49) and washer
(item 43).
(4) Reassemble ensuring that the fixings are tightened to a torque of 15Nm.

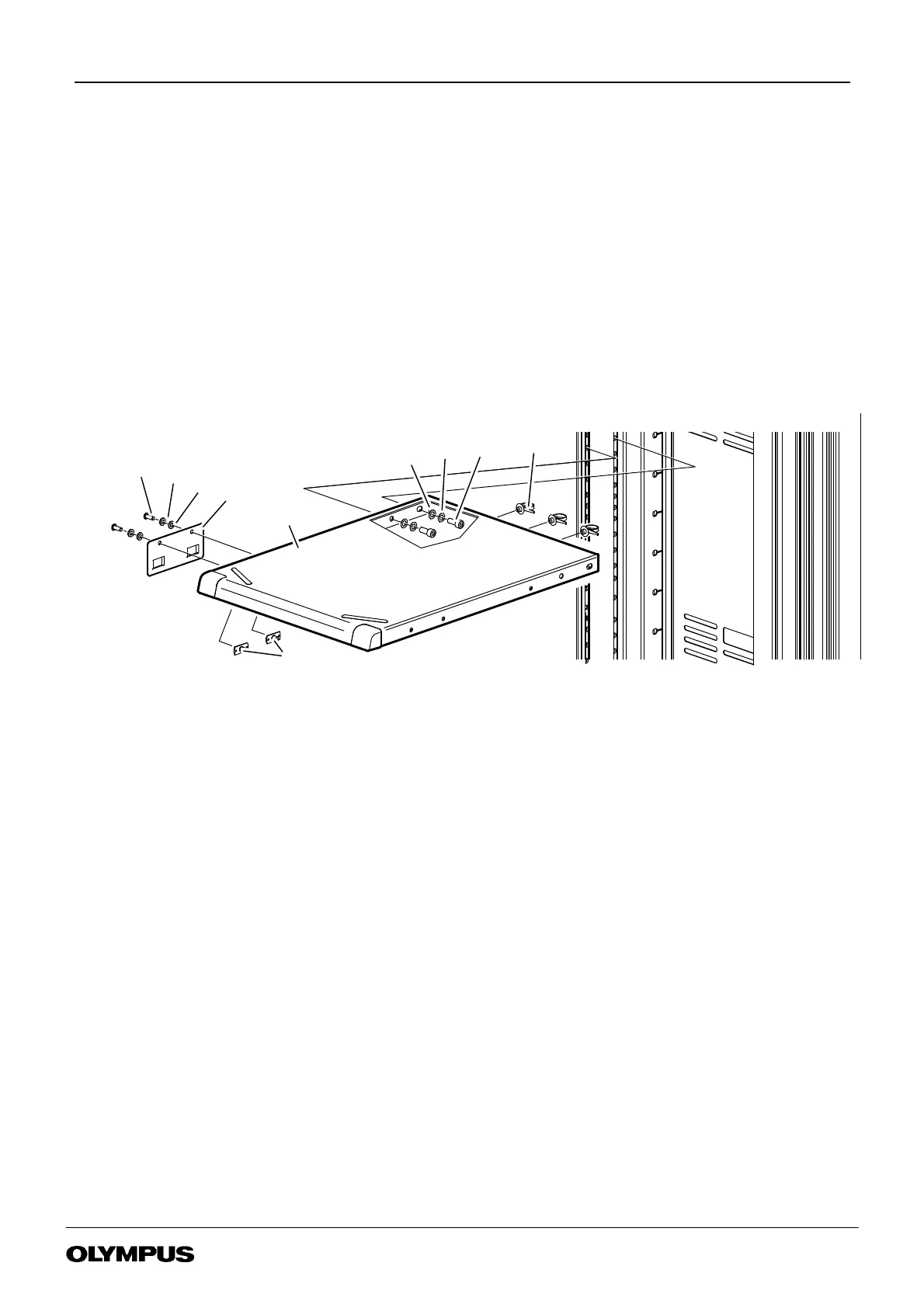

FIGURE 6-8
SHELF R EPLACEMENT
33
3
36
4 15Nm49
4
43
4
47
2
25
50
2
38
26Nm
22
2
67
