Olympus WM-WP1 - MAJ- - 196 Rear;Front Panel Kit

Page 56 of 76
Issue 20 : July 2012
WM--P1 SERIES WORKSTATIONS
8.13 MAJ - 196 REAR/FRONT PANEL KIT

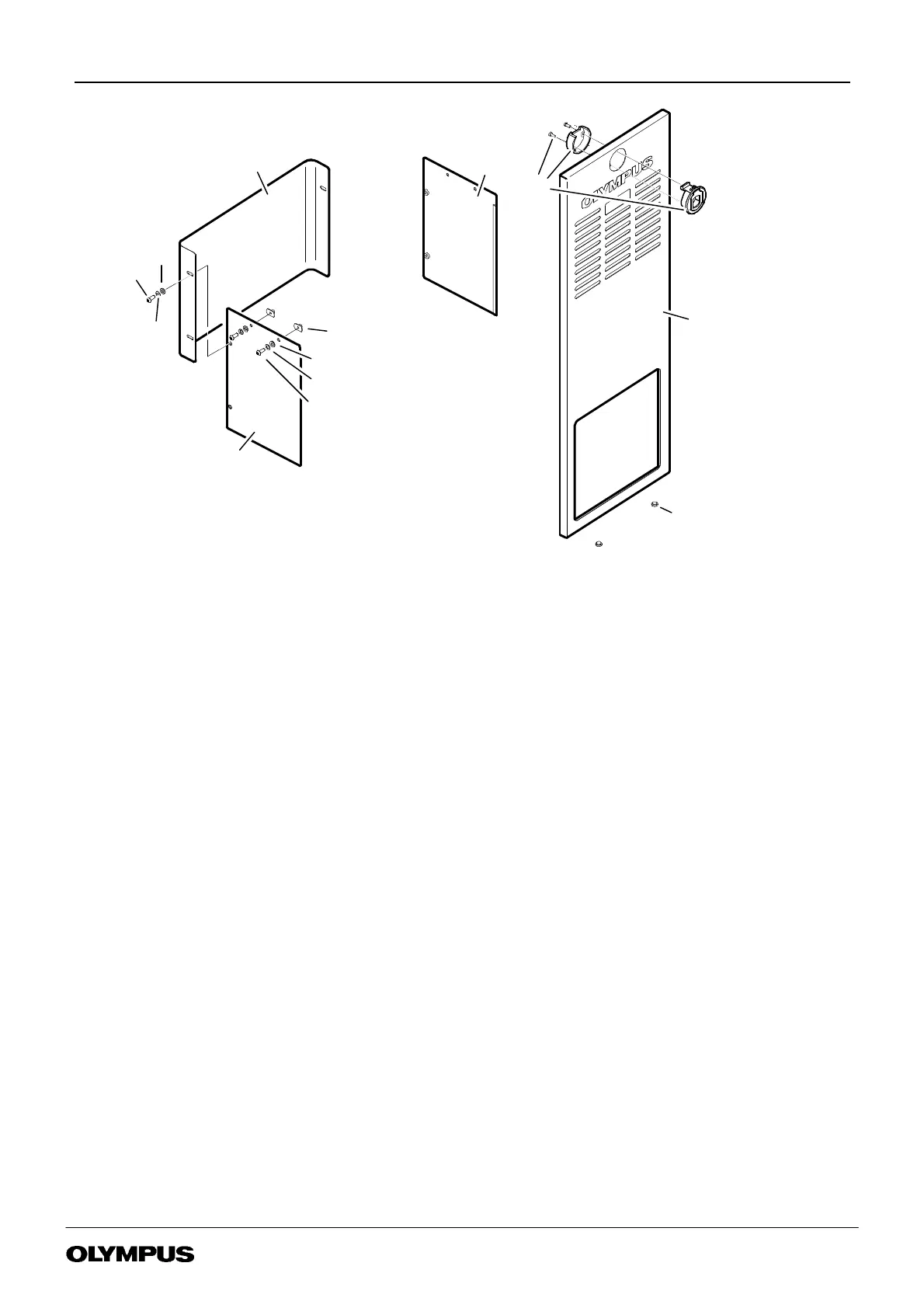

FIGURE 8-13
MAJ--196
REAR/FRONT
PANEL KIT
8
4
10
4
7
4
2
1
3
5
4
6
2
10
4
8
4
7
4
9
4
MAJ- 196 REAR/FRONT PANEL KIT p/no K10001428
MAJ- 1629 RR/FT PANEL KIT- WIDE p/no K10004395
Item Description Part No Qty
Torque
Remarks
1 FRONTCOVERLH .................................. K10003464 1 -- A, B
2 FRONTCOVERCENTRE .............................. K10003465 1 -- A
FRONTCOVERCENTREWIDE ......................... K10004398 1 -- B, NS
3 FRONTCOVERRH .................................. K10003466 1 -- A, B
4 REARDOOR ....................................... K10003548 1 -- A,C
REARDOOR WIDE.................................. K10004399 1 -- B, D,NS
5 LATCHSPAREFORWM--*P1RANGE .................... K10016172 1 -- A, B, C, D
6 FOOTPUSH--IN ..................................... K10003425 2 -- A, B, C, D
7 WASHERM6 ....................................... 3920333 8 -- A, B
8 WASHERCRINKLEM6 ............................... K3921473 8 -- A, B
9 JETNUTM6SINGLENUTPLATE ........................ 3920573 4 -- A, B
10 SCREWM6x16HEXSKTBUTTHD ..................... 3920327 8 -- A, B
11 ALLENKEY4MMA/FSHORT........................... 3066011 1 -- A, B, NS
12 SPARE
13 INSTRUCTIONS MAJ--196 / MAJ--1629 .................... K10003554 1 -- A, B, NS
REMARKS
A Used on MAJ--196 REAR/FRONT PANEL KIT p/no K10001428
B Used on MAJ--1629 RR/FT PANEL KIT--WIDE p/no K10004395
C Used on REAR PANEL KIT WM--NP1 p/no K10005044
D Used on REAR PANEL KIT WM--WP1 p/no K10005045
NS Not Shown
