SECTION 10 SERVICING YOUR OMEO EVOLUTION
85
|
OMEO EVOLUTION USER MANUAL
Remove / Install O-Road Kit
Wheel Guards (Fenders)
Tools required: Phillips screwdriver
To remove the guards (fenders):
1. Make sure that the Omeo is unplugged and
powered o
NOTICE
The Omeo does not have to be on its side to take
o the Guards. It is safe to take the Guards o
whilst the Omeo is in an upright position.
2. Remove the three screws / fasteners that attach
the guard to the Body of the Omeo
3. Remove the Guard and store along with the
screws / fasteners in a safe location.
To install the Guards (fenders):
1. Position the Guard so that it aligns with the
three holes in the Omeo Body (as seen in
Figure 42)
2. Insert and thread the screws through the
guard into the Omeo Body and tighten to
1.5N-m (13in-lbs) / hand tight.
Service Procedures (cont.)

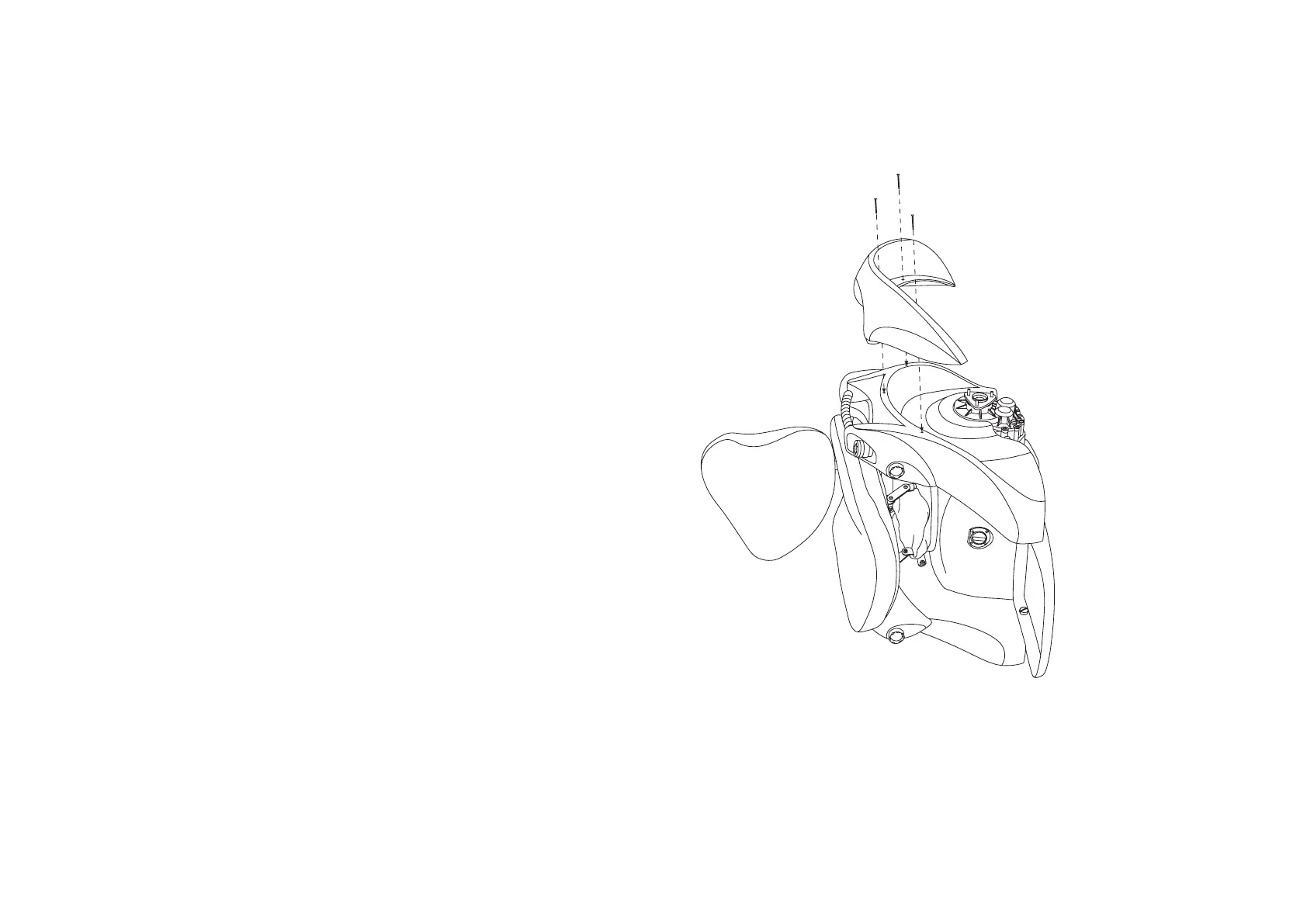

Figure 42: Remove / install the O-Road Kit Wheel Guards (Fenders).
