5 Test set overview
COMPANO 100 is a lightweight, highly flexible fully electronic current or voltage source for various
checks in an electrical energy system, such as generation, transmission, distribution, railways or
industry. COMPANO 100 is battery-operated; you do not need any additional power source for the test
set. The battery is rechargeable.

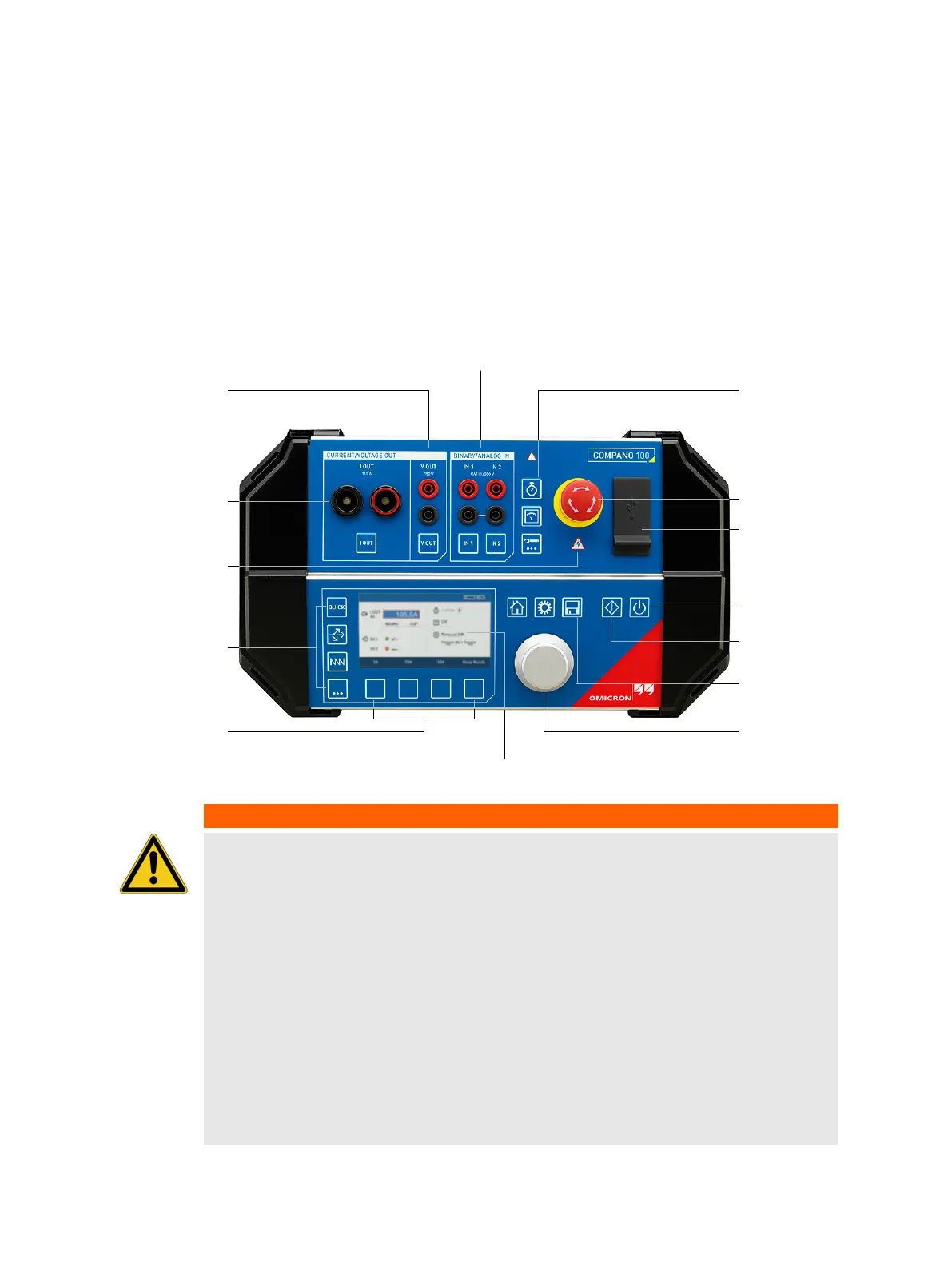

Top view (Details → User Manual chapter Front panel operation):
Binary or analog measurement inputs
Hardware configuration
(Calculated
Measurements, Timer,
and others)
Emergency stop
USB and Ethernet
compartment.
The Ethernet connector
is for future use.
On/Off
Start/stop
Save
Jog dial wheel
4.3 ” LCD color display, resolution 480 × 272 pixel
Soft keys
Application
modules
AC and DC
current output
AC voltage
output
Warning symbol
WARNING
Death or severe injury caused by high voltage possible
Inductive loads may contain a lethal amount of energy if charged with current. The
amount of energy depends on the size of the inductive load, the strength of the applied
current, and the frequency. To give an example, 350 mJ are assumed as safe
according to the safety standard IEC 61010-1. Particularly critical devices are potential
transformers or current transformers, but also the inductive part of other test objects
can be critical.
► If you connect loads >0.3 mH to the COMPANO 100 current output I OUT, do not
touch the outputs or anything that is connected to them.
The binary and/or analog inputs IN 1 and IN 2 may conduct hazardous voltages. The
insulation against other potential hazardous voltages is implemented as functional
insulation, and they are not isolated against each other (common N).
► Never connect touchable test objects to the inputs without having secured the
dangerous area.
Test set overview
OMICRON
17
