OMICRON
13
Hardware overview
3.3

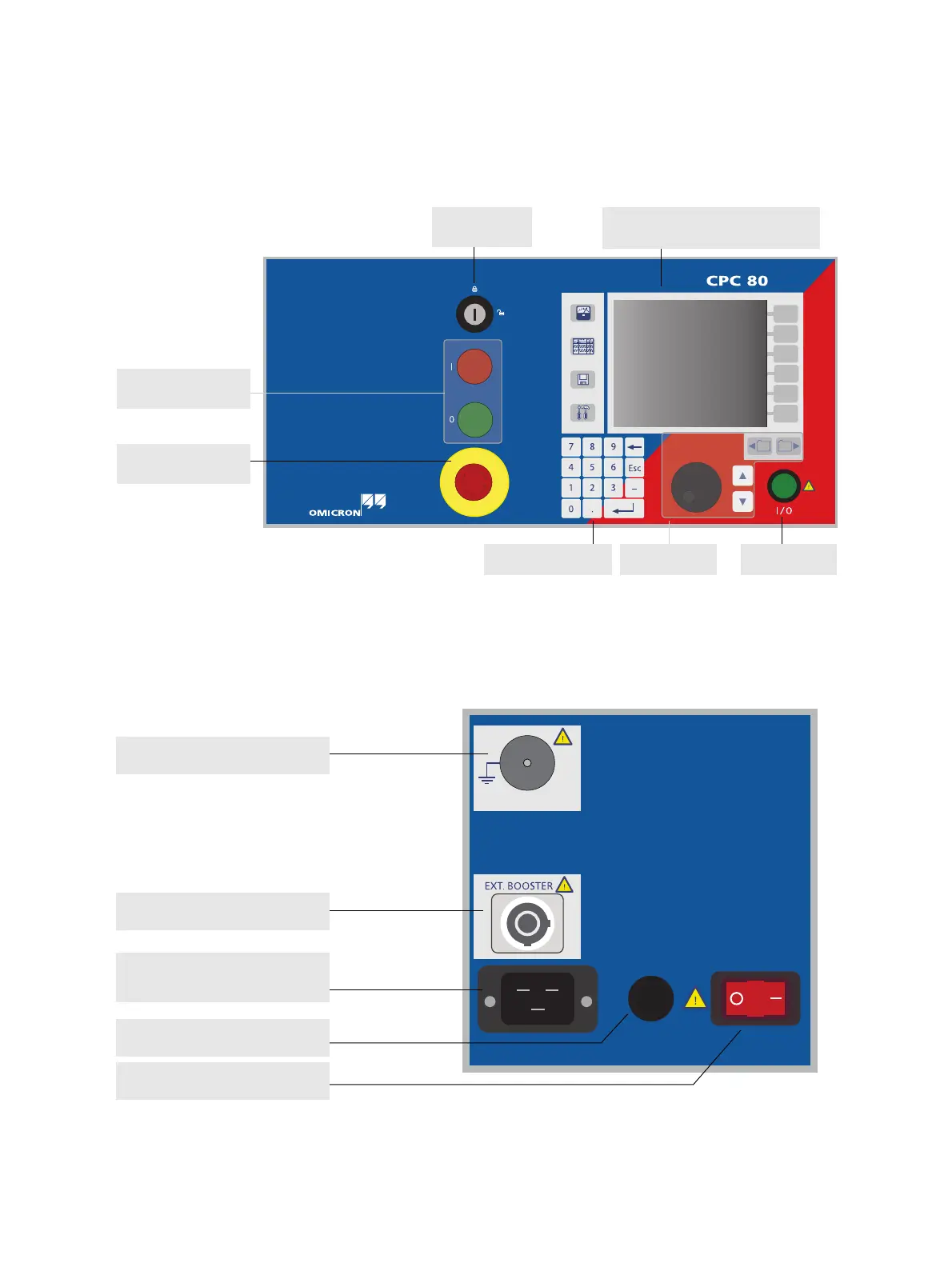

CPC
80 front panel
Figure
3-3:
CPC
80
front panel
3.4
CPC
80 side panel
Figure
3-4:
Left side view of the
CPC
80
ePC
with front-panel control
Key lock
I/O
Status lights
Soft-touch keyboard
Navigation
elements
Test
Start
/
Stop
Emergency
stop
button
External booster
Grounding terminal
Mains power switch
Automatic circuit breaker I
>
16
A
Mains power supply
1 phase, 85
V
...
264
V
AC
12
14
