Omicron CPC 100 Getting Started

CPC Getting Started
12 OMICRON
3 Hardware overview

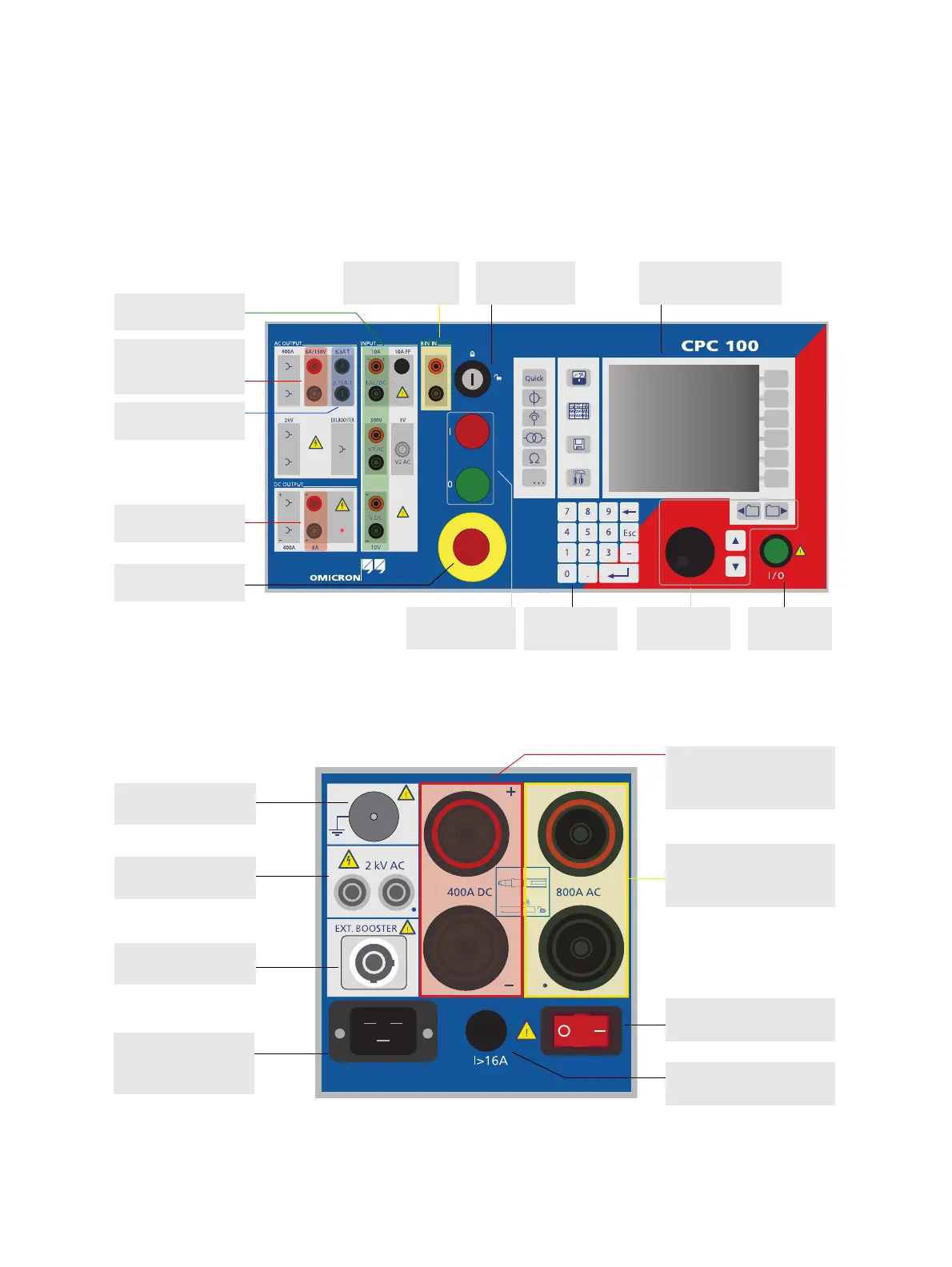

3.1 CPC 100 front panel
Figure 3-1: CPC 100 front panel
3.2 CPC 100 side panel
Figure 3-2: Left side view of the CPC 100
DC OUTPUT
6A DC output
AC OUTPUT
Fuse-protected 6A or
130V output
ePC
with front-panel control
Fuses for 6A AC and
6A DC outputs
Navigation
elements
Test
Start/Stop
Soft-touch
keyboard
Key lock
BIN IN
Binary trigger input
Emergency stop
button
I/O
Status lights
INPUT
Measuring inputs
Mains power supply
1 phase
85 V ... 264 V AC
2kV AC
High-voltage output
Grounding terminal
800 A AC
(6.1 V ... 6.5 V AC)
High AC current output
400 A DC
(4 V ... 4.5 V DC)
High DC current output
Automatic circuit breaker
I>16A
Mains power switch
External booster
