10
DMAN-xxxx-xx
www.omnexcontrols.com
call toll free: 1-800-663-8806
Tether connection detected
Low battery. Unit will run approximately 20 hours after Battery light starts flashing.
Power switch is stuck in the “UP” position
.
The Active light remain on momentarily when a function is activated (i.e. a switch or
paddle is triggered). This is normal operation.
Normal Operation
The transmitter is in Download Mode.
Normal Operation
The Active light will flash 2 times per second, indicating that the transmitter is sending
signals to the receiver.
Stuck switch detected. Ensure that all switches are in a centered position. The trans-
mitter will not power up when a function is ON.
On Power Up
Release the E-Stop button within 10 seconds to power up the transmitter, or the unit will
power down.
On Power Up
Press and release the E-Stop button within 10 seconds to power up the transmitter, or
the unit will power down.
The transmitter is in Calibration mode
STOP
STOP
STOP
STOP
STOP
STOP
STOP
STOP
STOP
STOP
Light Legend
Solid
Slow
Flash
Fast
Flash
Red
Light
Green
Light
Alternating Red
& Yellow Light
Yellow
Light

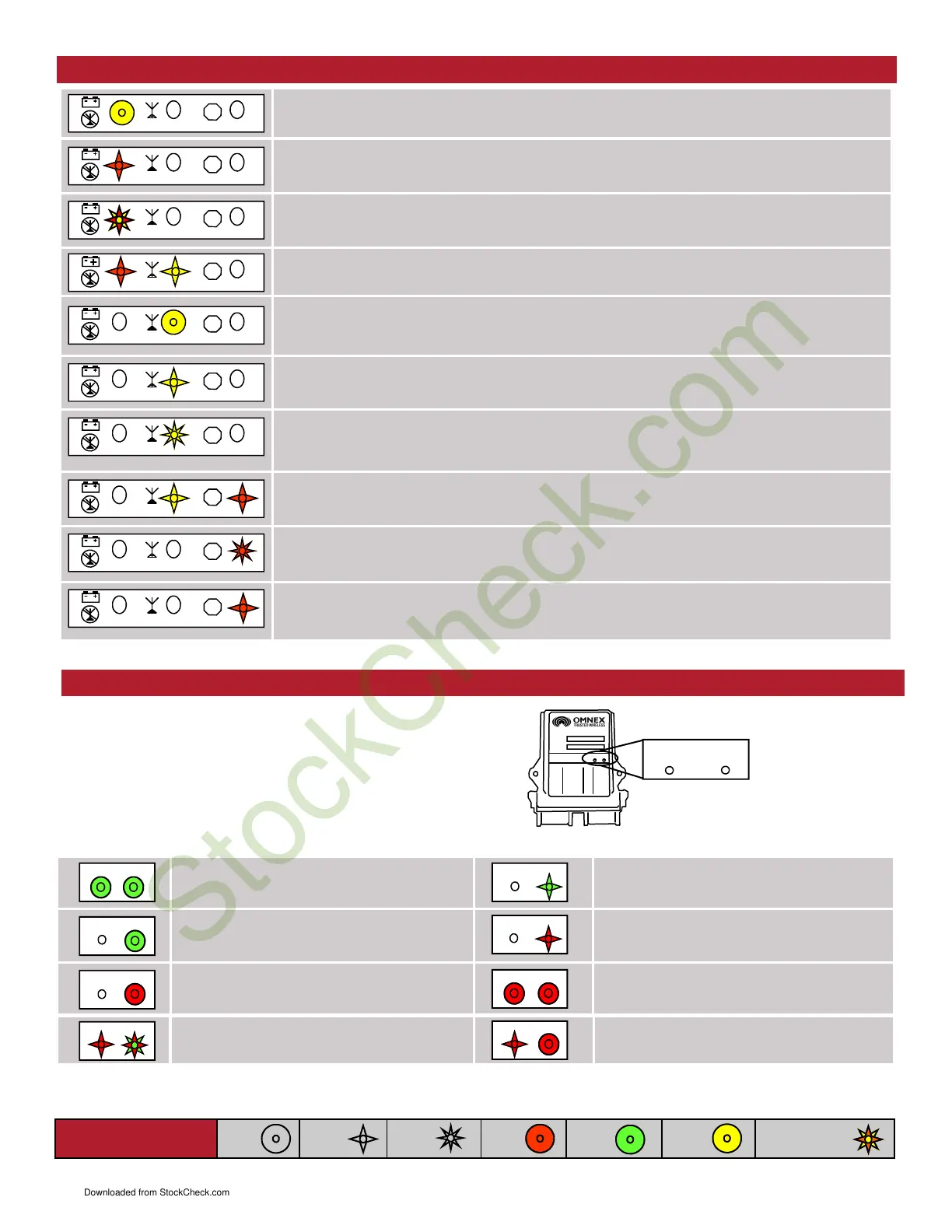

Diagnostics—T300 Transmitter
Status Indicator
Indicator lights for the D160 Expansion Module
Diagnostics - D160 Expansion Module
FA STA
STATUS
FUNCTION/
FAULT
Module is operating properly with a function
on
Low battery condition detected
(refer to
R160 diagnostic page for possible solution)
Module is operating properly with a function
off
Fuse blown
(refer to R160 diagnostic page
for possible solution)
Module has an unrecoverable fault,
return for service
There is a short to ground/over current
(refer to R160 diagnostic page for possible
solution)
The module is powered incorrectly (refer to
R160 diagnostic page for possible solution)
There is a short to supply
(refer to R160
diagnostic page for possible solution)
FAULT
STATUS
FAULT
STATUS
FAULT
STATUS
FAULT
STATUS
FAULT
STATUS
FAULT
STATUS
FAULT
STATUS
FAULT
STATUS
