The ORIGA T300 / R160 / D160 is a portable, long range, programmable radio remote control system. Designed as
a compact and easy-to-use product, this member of the ORIGA family puts complete control of your crane where it’s
needed most, with the operator. It’s robust, easy to install and has complete self-diagnostics. This system can be a
simple cable replacement or add intelligence to make it a total control package. It’s a radio, a PLC and a valve driver
all in one.
The ORIGA T300 / R160 / D160 system uses Frequency Hopping Spread Spectrum (FHSS) technology. FHSS de-
vices concentrate their full power into a very narrow signal that randomly hops from frequency to frequency within a
designated band. This transmission pattern, along with CRC-16 error-checking techniques, enables signals to over-
come interference that commonly affects licensed radios.
The R160 receiver is designed to be powered from a 12VDC or 24VDC system. It features 19 solid state, high-side
driver input / output controls and a reliable E-Stop control.
The D160 Expansion Unit has up to 19 input/output (including 2 proportional) combinations, PWM, or voltage outputs,
or a combination of these types.
The T300 transmitter comes with up to sixteen proportional and sixteen digital controls. The T300 can accommo-
date up to eight single axis paddles, eight three-position switches and a re-settable E-Stop. A unique ID code is used
by each T300 to ensure that no two systems will conflict on a job site.
STOP
Power / calibration switch
E-Stop
Switches 2 - 8
E-Stop LED
Active LED
Battery/
Pendant LED
Paddles 1 - 8
Pendant con-

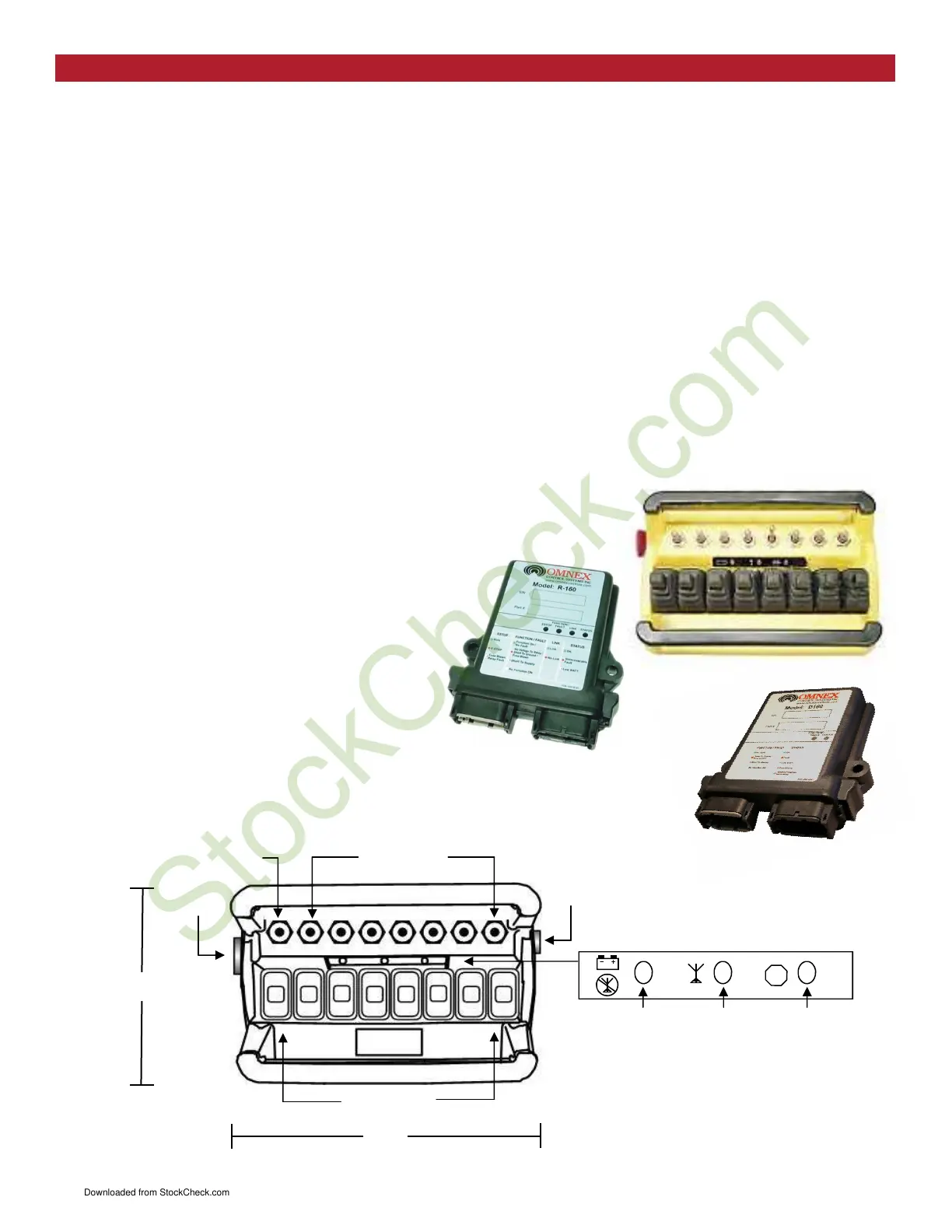

T300 Dimensions and Controls
9.5”
6.0”
Features
• FCC, ISC, CE approved
• License free
• 1200 foot range @ 900 MHz (900 ft @ 2.4 GHz)
• Compact / weatherproof / ergonomic
• Simple “wire-and-use” installation
• Resilient to impact and shock
• Available in both 900 MHz and 2.4 GHz
• Available with paddles and/or joysticks for propor-
tional control
• Available with an optional pendant cable
• Factory configurable for all custom applications.
T300 Transmitter
R160 Receiver
System Overview
D160 Module
