Omnia-6ex Use and Operation Manual – V: 1.20
27
In all menus with adjustable parameters, rotating the jog-wheel sequentially highlights each control or selection
choice, along with the Home icon and the Headphone level button. In the Process menu, the parameter adjustment
windows have an “X” Close Window icon in the upper right corner (as shown in the AGC Mixer window below).
Highlighting this icon and clicking closes the window, returning the user to the Process menu, one level above.

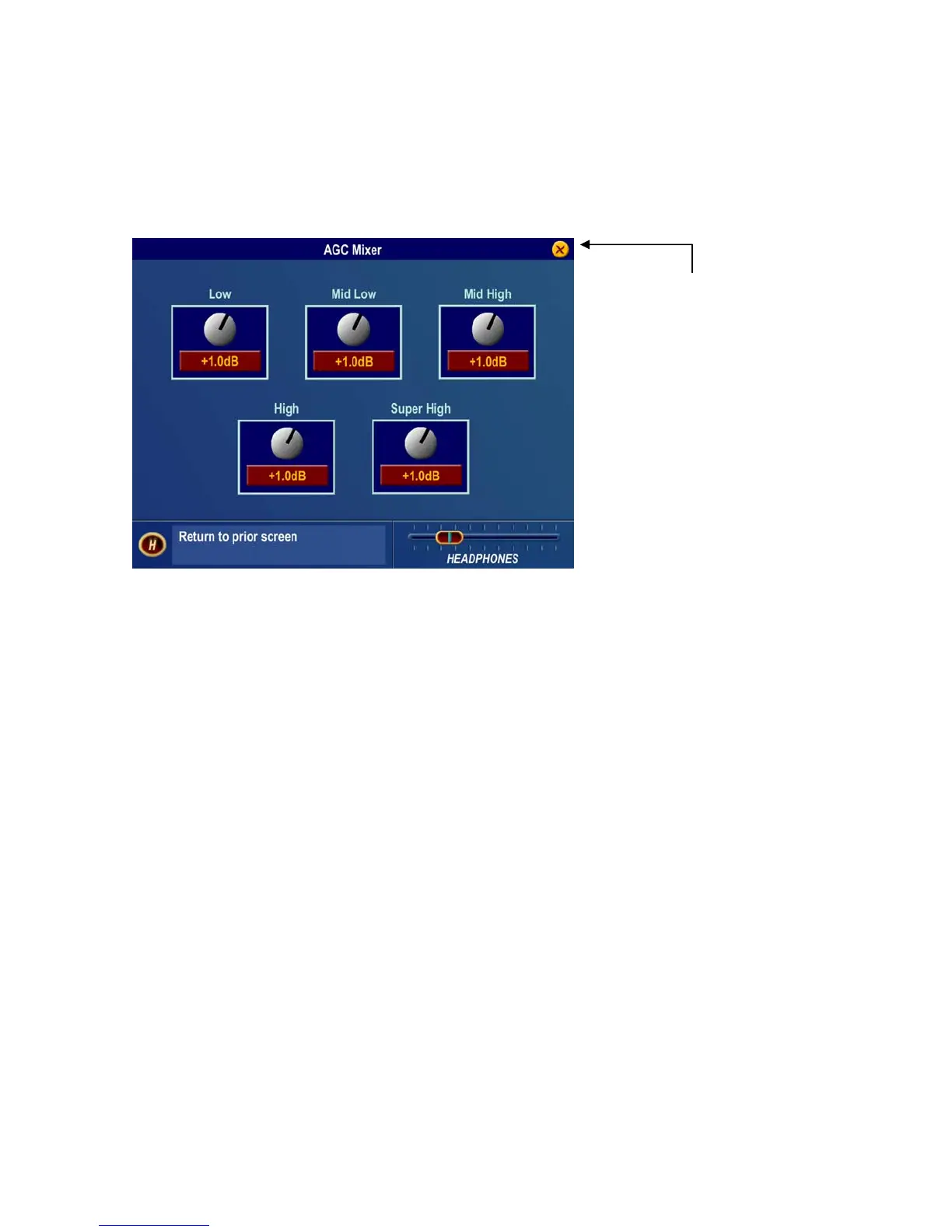

“X”
Close Window Icon
AGC Mixer Submenu
To change the selection in a multiple-choice parameter, highlight the desired choice with the jog-wheel and click. A
filled box serves to indicate that a parameter choice is selected.
To adjust a “rotary” knob control, like those shown in the AGC Mixer Parameter Window, highlight the control and
click. The jog-wheel now functions as a rotary control. Rotating it clockwise adjusts the control up; counter-
clockwise adjusts the control down. The adjusted value is shown below the control. The original value is retained in
a different color until the jog-wheel is clicked to make the new value permanent.
To cancel a control change, return the jog-wheel to the control’s original value. To apply a new level or value and
return to Highlight Mode, just click the jog-wheel.
