Audio I/O Level Display
Either input or output levels can be displayed on the top 2 (L & R) meters. The highest LED illuminated indicates
digital sample-accurate peak signal levels. The meters are calibrated in decibels below full scale digital (0 dBFS) in
2dB steps. 0 dBFS is the absolute maximum level in the digital domain. Levels from –34 dBFS to –14 dBFS are
displayed in blue, levels from –12 to –2 dBFS are displayed in yellow and 0 dBFS (the clipping point) is displayed
in red. The bottom meter displays the composite MPX signal level referenced to 100% modulation (FM and SG
Styles Only).
Audio I/O Level Display
Processing Meter Display

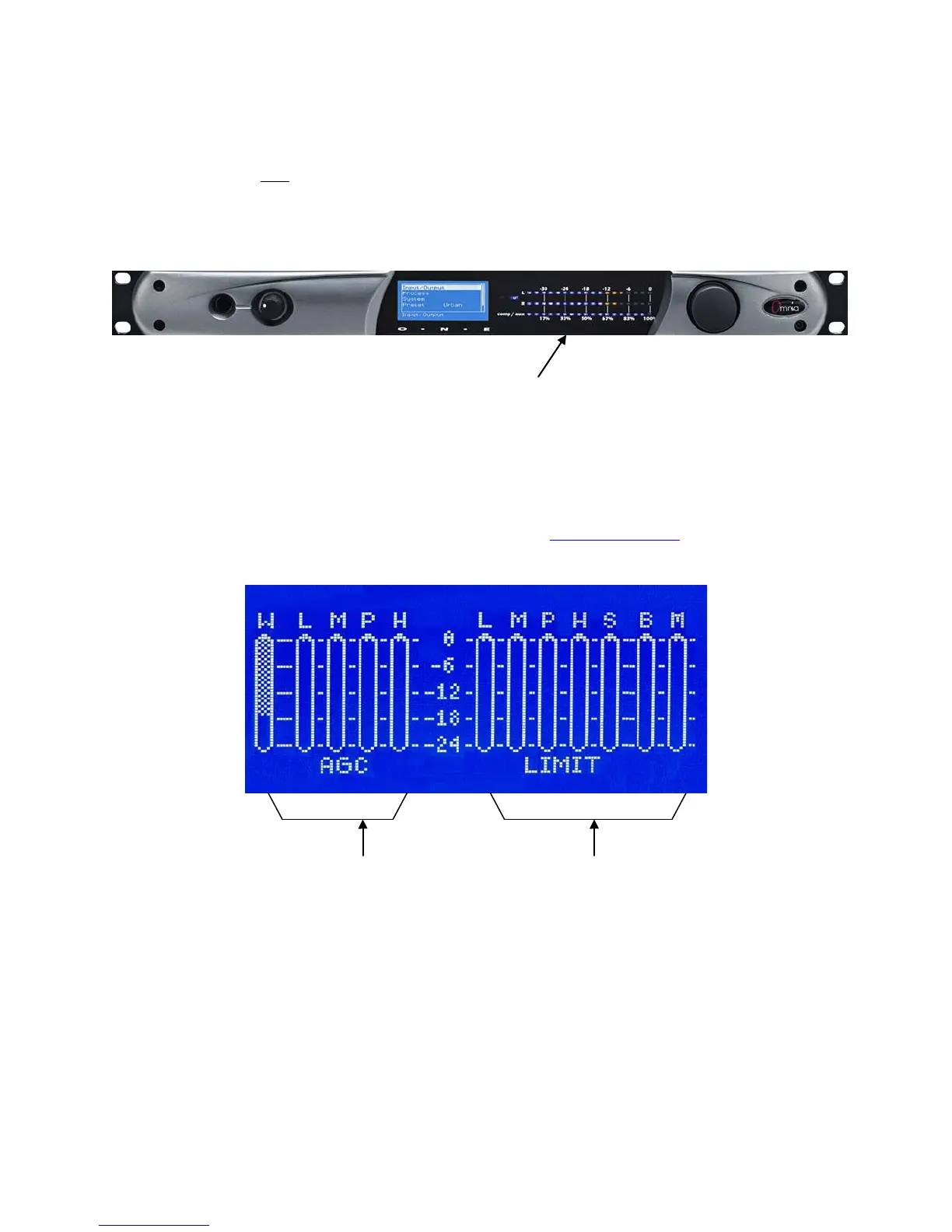

In “Meter Display” Mode the vertical bargraphs show all of the processing activity (the amount of gain reduction) in
the AGC, Limiter and Clipper sections within the Omnia.ONE. (varies with style) If the “Menu Display” is
currently showing on the Omnia.ONE’s LCD screen, press and hold the jog-wheel for two seconds to switch to the
processing meter display as shown below.
To return to the Menu display, simply click the jog wheel once. (See “Using the Jog Wheel
” on Page 10)
FM Style Processing Meter Display
AGC Meters Limiter/Clipper Meters
W…... Wide Band AGC L….. Low Band Limiter
L……. Low Band AGC M…. Mid Band Limiter
M…… Mid Band AGC P…... Presence Band Limiter
P…… Presence Band AGC H….. High Band Limiter
S…... Super-High Band Limiter (optional on
FM style only)
H…… High Band AGC B….. Bass Clipper
M…. Main Clipper (AM & FM Styles)
or F…..Final Limiter (MC & SP Styles)
