9. After optimizing the Tilt controls for your particular transmitter, the Tilt adjustment is complete. Normal
programming may be applied and the Omnia.ONE’s output levels adjusted for the desired negative and
positive modulation. Please see the following oscilloscope photographs of three examples of tilt
equalization on the next page.

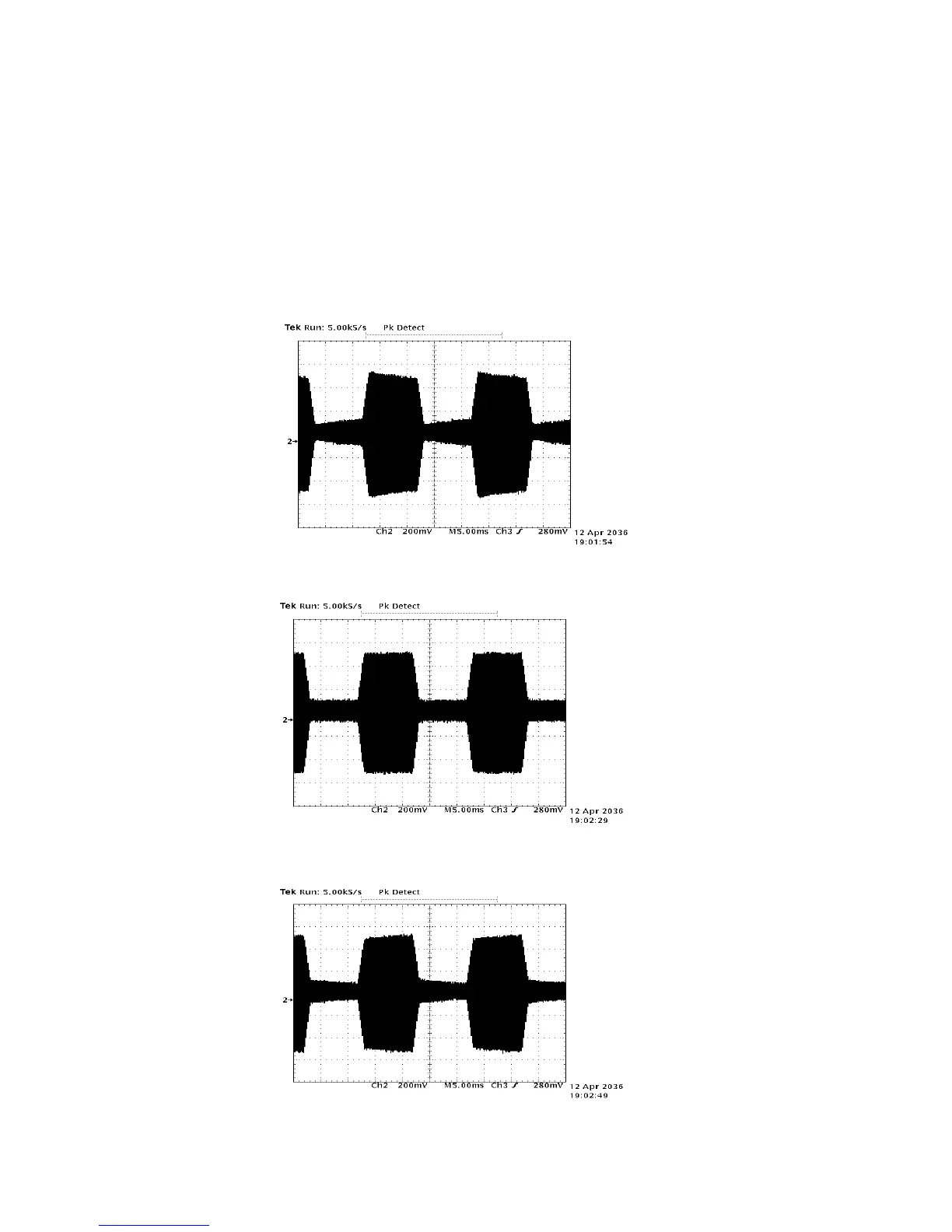

Low Frequency Tilt Equalization Adjustment Examples
Insufficient Tilt Equalization
Proper Tilt Equalization
(or a transmitter that does not require it)
Excessive Tilt Equalization
