1-4 Electronics Tray
Removal Procedure
OmniTT/AnesthesiaTT Installation and Service Guide/67-2024 Rev D © 2010 Omnicell, Inc.
3. Remove the paper from the printer. Push the platen lever to the left to set it to the disengage
position.

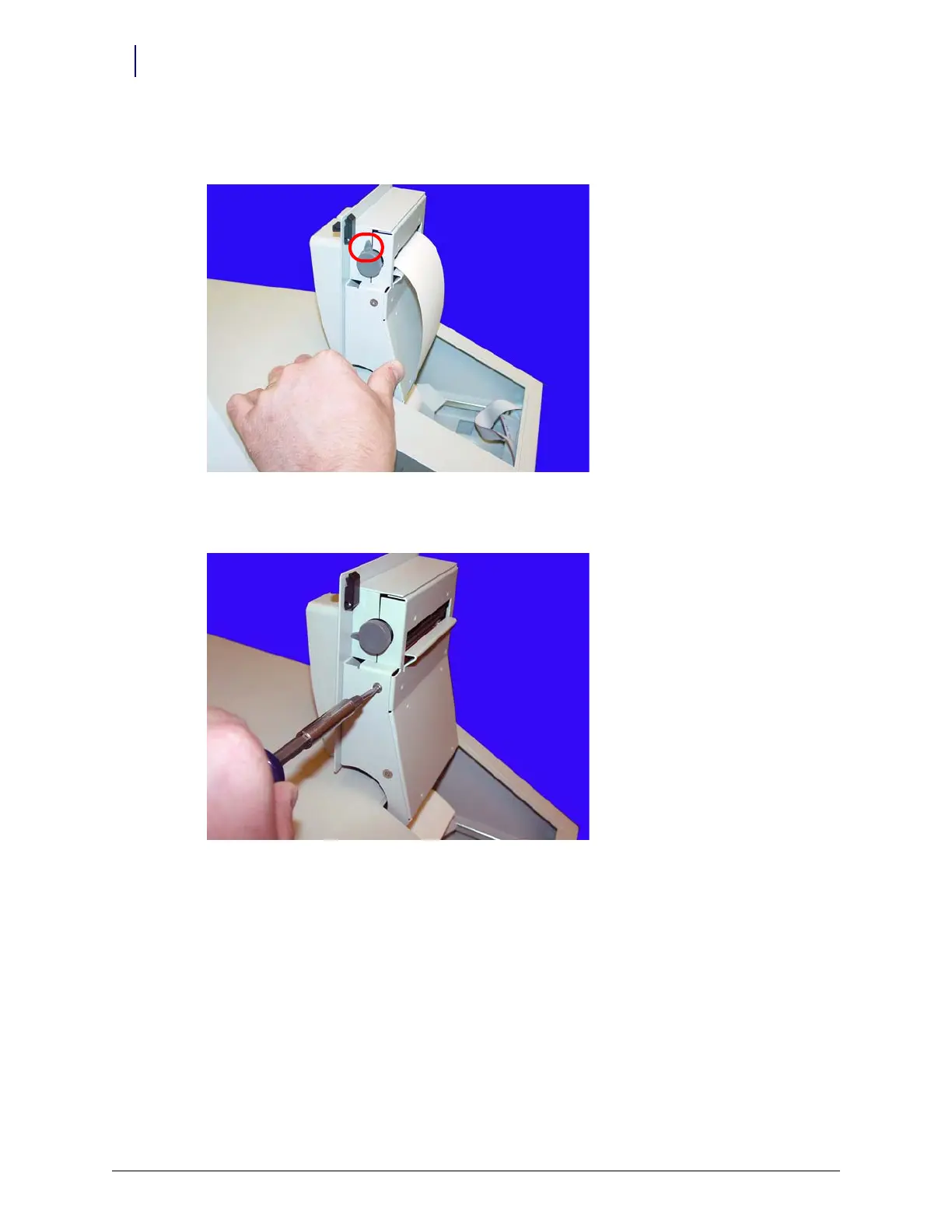

Figure 1-6. Turn the Platen Lever to the Left and Remove the Paper
4. Remove the four screws (two on each side) that secure the printer assembly to the cover.
Figure 1-7. Remove the Screws Securing the Printer Assembly
5. Remove the printer assembly.
