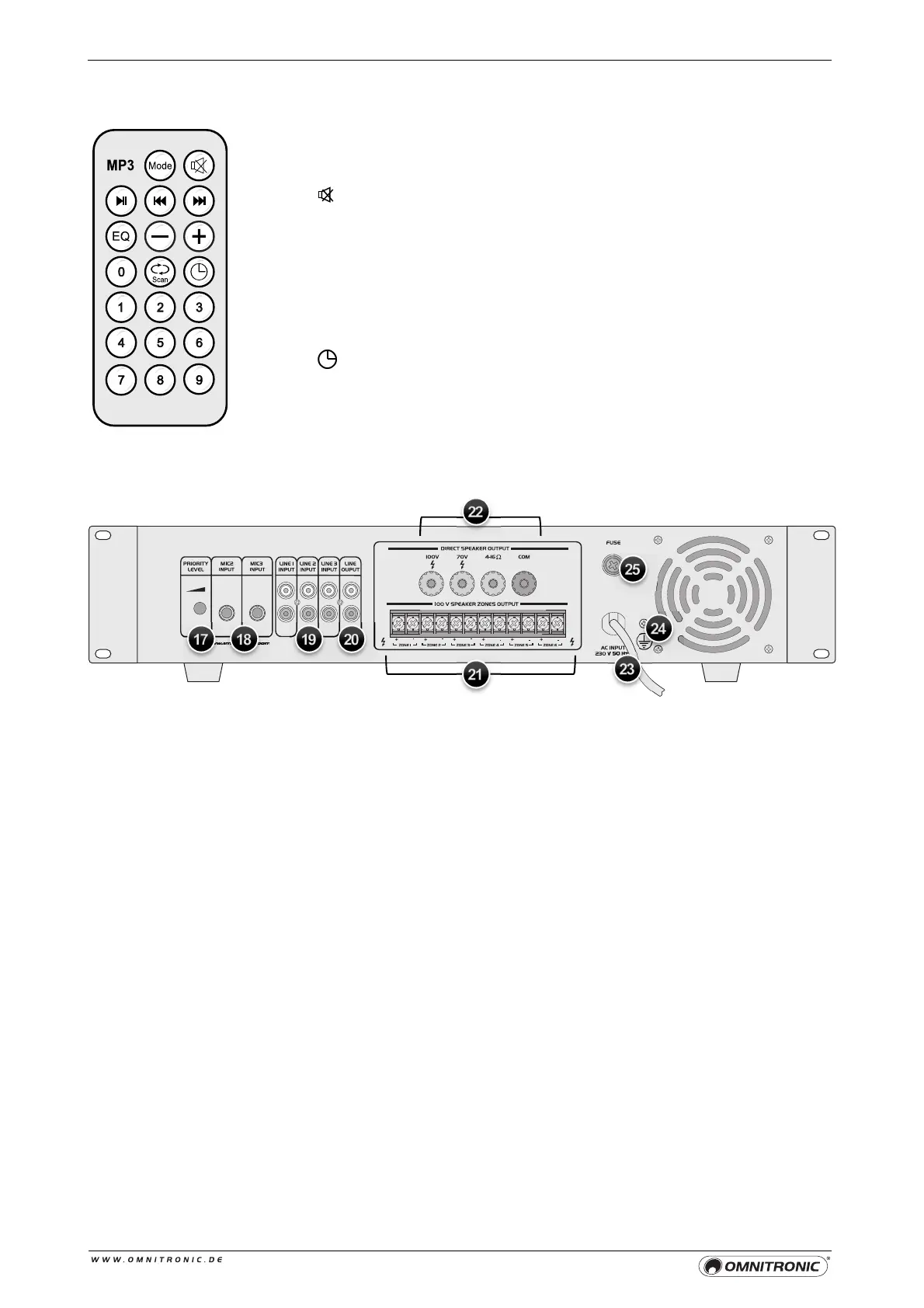

Remote Control
[
Mode
]
: for switching between USB and memory card
[ ]:
mute player
[
►
]:
play/pause
[]
and
[]:
previous/next title
[EQ]:
selects equalizer settings
[
‒
]
and
[+]:
volume up/down
[]:
repeat selected title
[ ]:
clock indication
[0-9]:
direct selection of a title
Rear Panel
17 Control PRIORITY LEVEL
Adjusts the attenuation level when releasing
the chime and in case of microphone
announcements via microphone channel 1.
18 Inputs MIC 2 and MIC 3
Unbalanced 6.3 mm jacks for connecting
dynamic microphones.
19 Inputs LINE 1 to 3
Stereo RCA inputs for connecting units with
line level (e.g. CD player).
20 Output LINE
Stereo RCA output for connection to units
with line level inputs (e.g. mixer, amplifier).
21 Speaker zone outputs
Terminals for zones 1 to 6 for connecting
100 V speakers.
22 Direct speaker output
• Direct output for 70 V or 100 V speakers or 4
to 16 Ω speakers and common ground
connection COM.
• The zone buttons do not affect these outputs.
23 Mains cable
For connection to a mains outlet.
24 Clamping screw
For a potential ground connection.
25 Mains fuse
Only replace the fuse when the unit is
disconnected from the mains. Only use fuses
of the same rating and power. The correct
fuse value is specified on the rear panel.
