Inverter Specifications

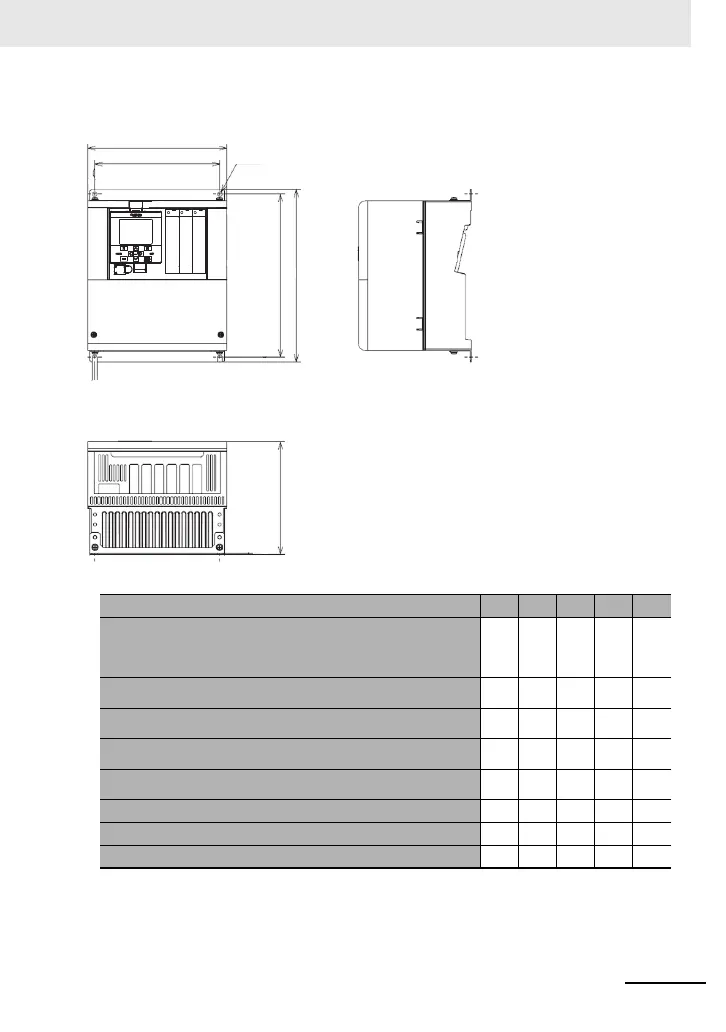

■ External dimensions (mm)
3G3RX2- W W1 H H1 D
200 V Class:
400 V Class:
3G3RX2-A2004, 3G3RX2-A2007, 3G3RX2-A2015,
3G3RX2-A2022, 3G3RX2-A2037
3G3RX2-A4007, 3G3RX2-A4015, 3G3RX2-A4022,
3G3RX2-A4037
150 130 255 241 140
200 V Class:
400 V Class:
3G3RX2-A2055, 3G3RX2-A2075, 3G3RX2-A2110
3G3RX2-A4055, 3G3RX2-A4075, 3G3RX2-A4110
210 189 260 246 170
200 V Class:
400 V Class:
3G3RX2-A2150, 3G3RX2-A2185, 3G3RX2-A2220
3G3RX2-A4150, 3G3RX2-A4185, 3G3RX2-A4220
245 229 390 376 190
200 V Class:
400 V Class:
3G3RX2-A2300
3G3RX2-A4300
300 265 540 510 195
200 V Class:
400 V Class:
3G3RX2-A2370, 3G3RX2-A2450
3G3RX2-A4370, 3G3RX2-A4450, 3G3RX2-A4550
390 300 550 520 250
200 V Class: 3G3RX2-A2550 480 380 700 670 250
400 V Class: 3G3RX2-B4750, 3G3RX2-B4900 390 300 700 670 270
400 V Class: 3G3RX2-B411K, 3G3RX2-B413K 480 380 740 710 270
W
W
1
H1
H
D
2-ø7
