29
Control circuit

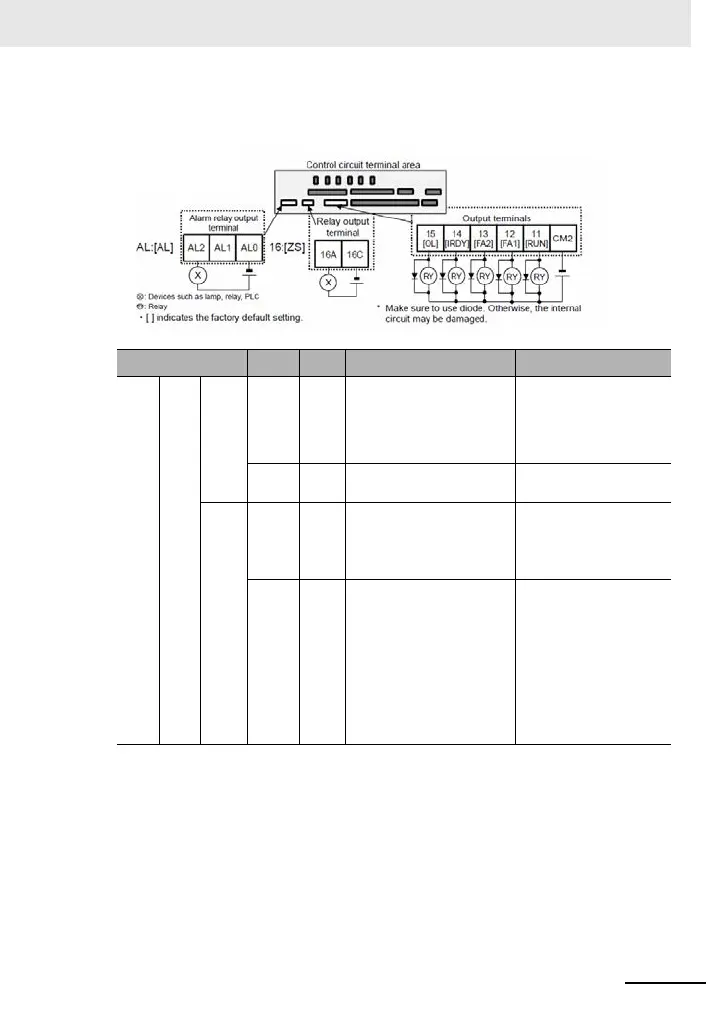

■Output terminals
(Wiring example)
Terminal
symbol
Terminal
name
Description Electrical characteristics
Output
terminal
Digital
output
Open
collector
15, 14
13, 12
11
Output
terminal
You can select terminal functions
using the parameter settings corre-
sponding to each terminal.
These terminals can be used both in
sink logic or source logic.
Open collector output
• Between each terminal and CM2
• Voltage drop at ON: 4V or below
• Maximum allowable voltage: 27V
• Maximum allowable current:
50mA
CM2 Common
for output
terminal
Common terminals for output termi-
nals 11-15
Relay
16A
16C
1a relay
terminal
A relay for contact A output. Maximum capacity of contact
• AC250V, 2A (resistance)
• AC250V, 1A (induction)
Minimum capacity of contact
•DC1V, 1mA
AL0
AL1
AL2
1c relay
terminal
A relay for contact C output. Maximum capacity of contact
AL1/AL0:
• AC250V, 2A (resistance)
• AC250V, 0.2A (induction)
AL2/AL0:
• AC250V, 1A (resistance)
• AC250V, 0.2A (induction)
Minimum capacity of contact (com-
mon)
• AC100V, 10mA
• DC5V, 100mA
To Next Page
