Omron A16 - Page 19

Pushbutton Switch A16 G-23
Pushbutton
Switches

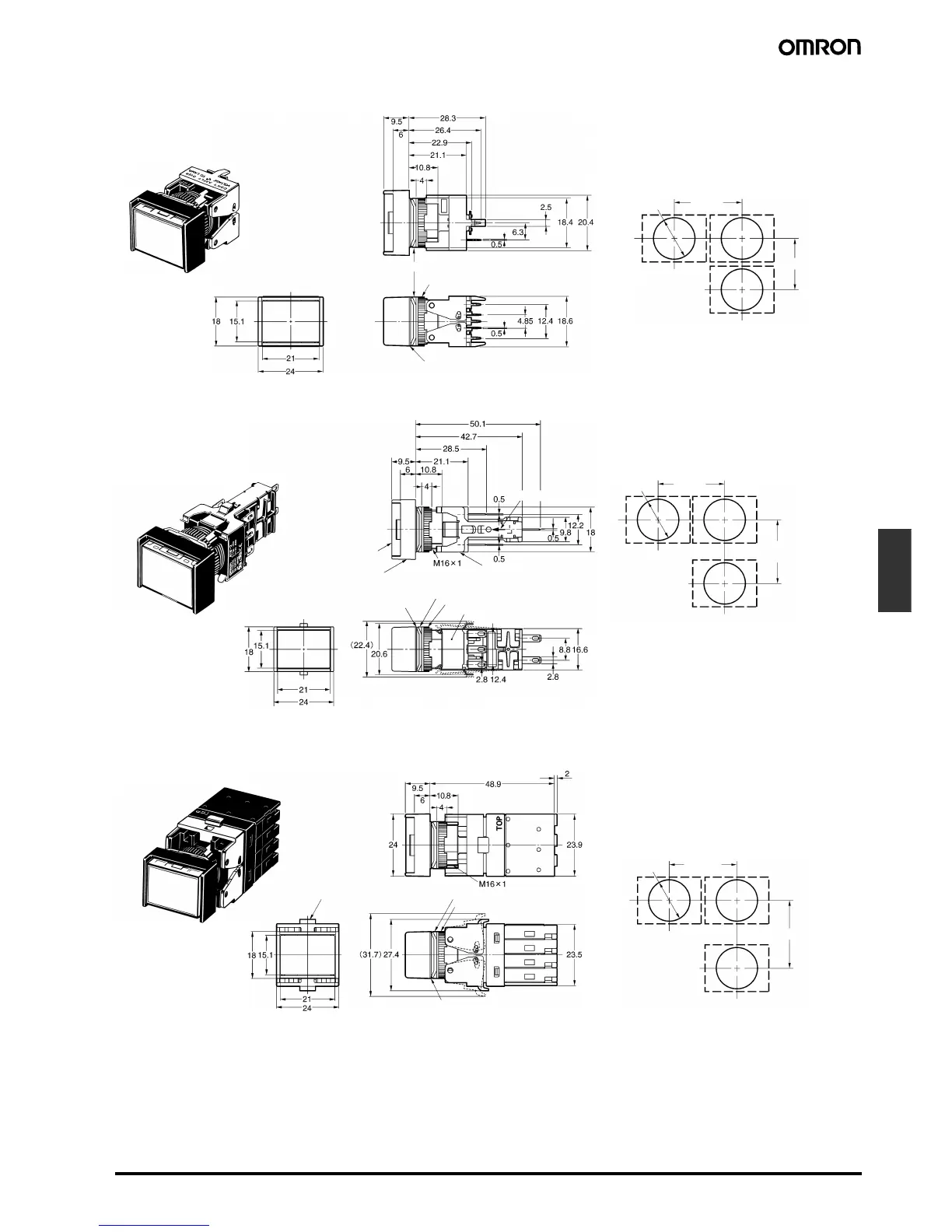

The following diagrams show the rectangular model as a representative example.
PCB terminals
Screw-Less Clamp
Panel Cutouts
See page 25 for panel cutouts
24 min.
24 min.
Mounting nut
Lock ring
16 dia.
+0.2
0
Lock ring
Mounting ring
Switch
Pushbutton
Case
Marking face
Direction-indication arrow
Panel Cutouts
See page 25 for panel cutouts
25 min.
16 dia.
+0.2
0
Recommended panel thickness: 0.5 to 3.2 mm
Switch dismounting lever
Lock ring
Mounting ring
Panel Cutouts
See page 25 for panel cutouts
25 min.
33 min.
16 dia.
+0.2
0
Rectangular
A16@-2S
Voltage-reduction lighting,
solder terminals
(tab terminals #110)
Rectangular
A16@-T1, T2
Rectangular
A16@-J
Packing (t0.5)
(for oil-resistant IP65 only)
Packing (t0.5)
(for oil-resistant IP65 only)
Packing (t0.5)
(
for oil-resistant IP65 onl
y)
23 min.
(Dimension A)
