Omron A16 - Page 18

G-22 Pushbutton Switch A16
Solder terminals (tab terminals #110)

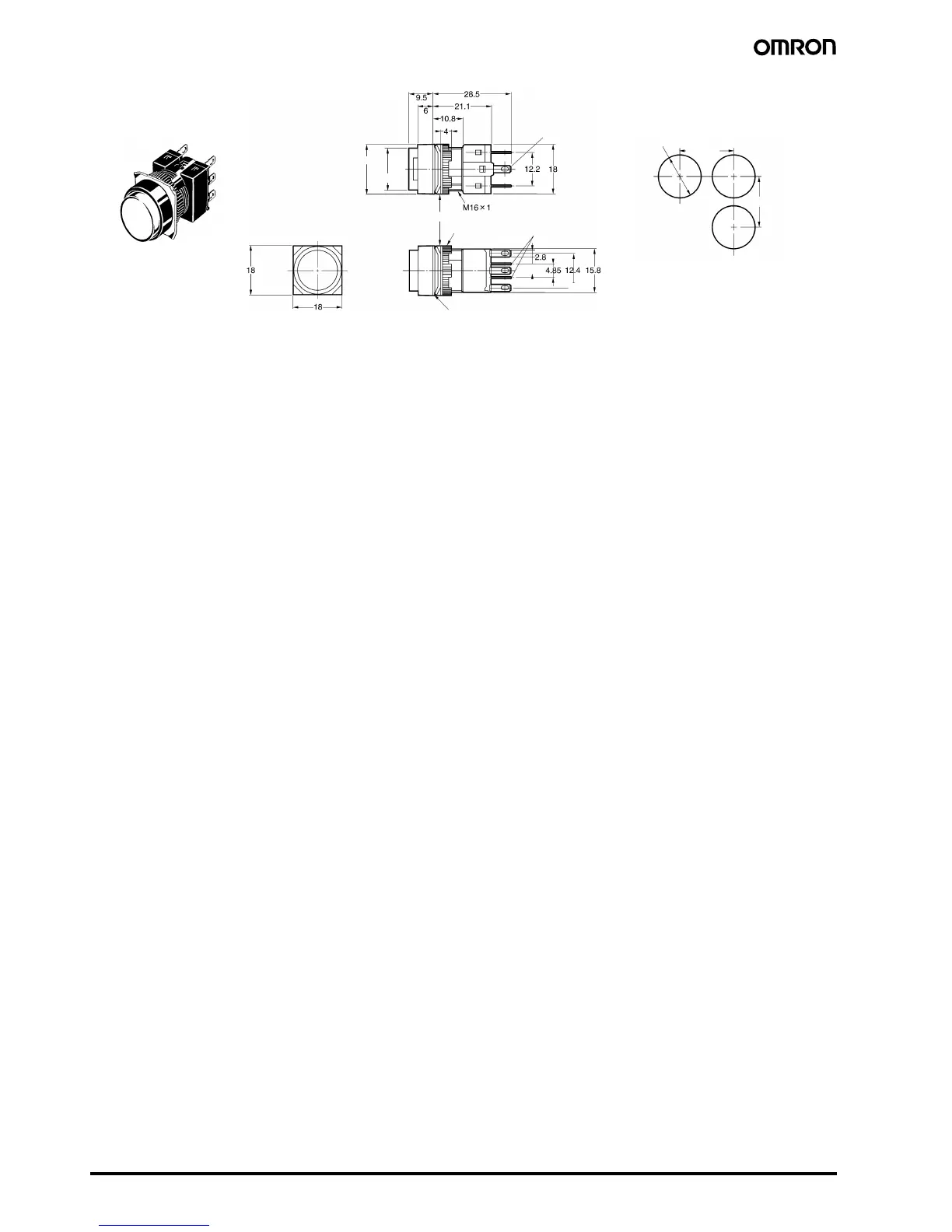

Panel Cutouts
See page 25 for panel cutouts
19 min.
19 min.
Lamp terminals
Lamp terminals
Mounting nut
Lock ring
16 dia.
+0.2
0
18 dia.
15.1 dia.
Round
A16@-T
Packing (t0.5)
(for oil-resistant IP65 only)
