Pushbutton Switch A16 G-21
Pushbutton
Switches

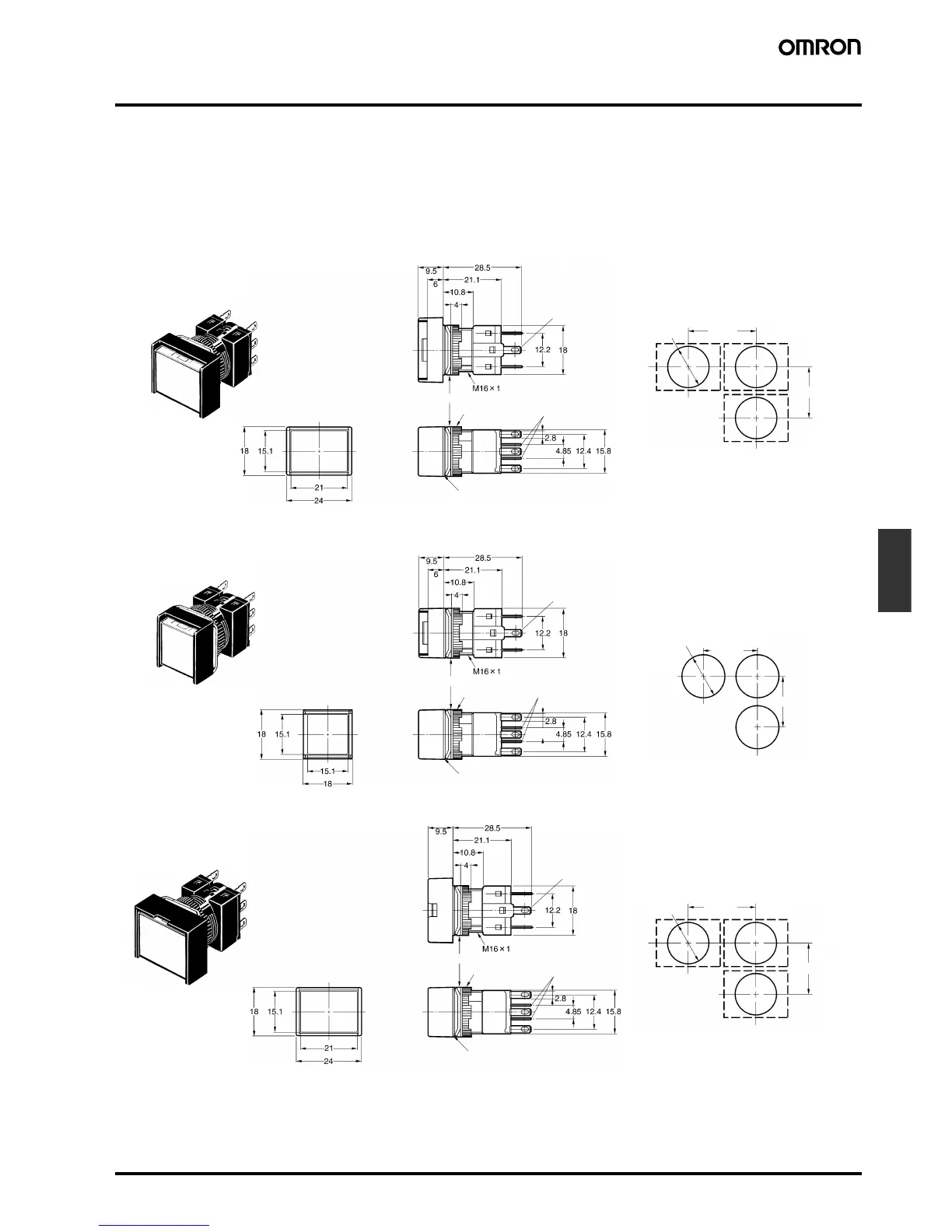

Dimensions
Note: All units are in millimeters unless otherwise indicated.
■ Lighted/Non-lighted Pushbutton Switches without Voltage Reduction
Unit
The lamp terminal is also provided with non-lighted models.
Solder terminals and tab terminals (#110) can be both used with Lighted and Non-lighted Pushbutton Switches.
Solder terminals (tab terminals #110)
Panel Cutouts
See page 25 for panel cutouts
Lamp terminal
Mounting nut
Lock ring
Lamp terminals
24 min.
19 min.
16 dia.
+0.2
0
Solder terminals (tab terminals #110)
Panel Cutouts
See page 25 for panel cutouts
19 min.
19 min.
Lamp terminalsMounting nut
Lock ring
Lamp terminals
16 dia.
+0.2
0
Solder terminals (tab terminals #110)
Lamp terminals
Mounting nut
Lock ring
Lamp terminals
Panel Cutouts
See page 25 for panel cutouts
24 min.
19 min.
16 dia.
+0.2
0
Packing (t0.5)
(for oil-resistant IP65 only)
Packing (t0.5)
(for oil-resistant IP65 only)
Packing (t0.5)
(for oil-resistant IP65 only)
Rectangular
A16@-3J
Square
A16@-A
Rectangular
A16@-J
