G-20 Pushbutton Switch A16

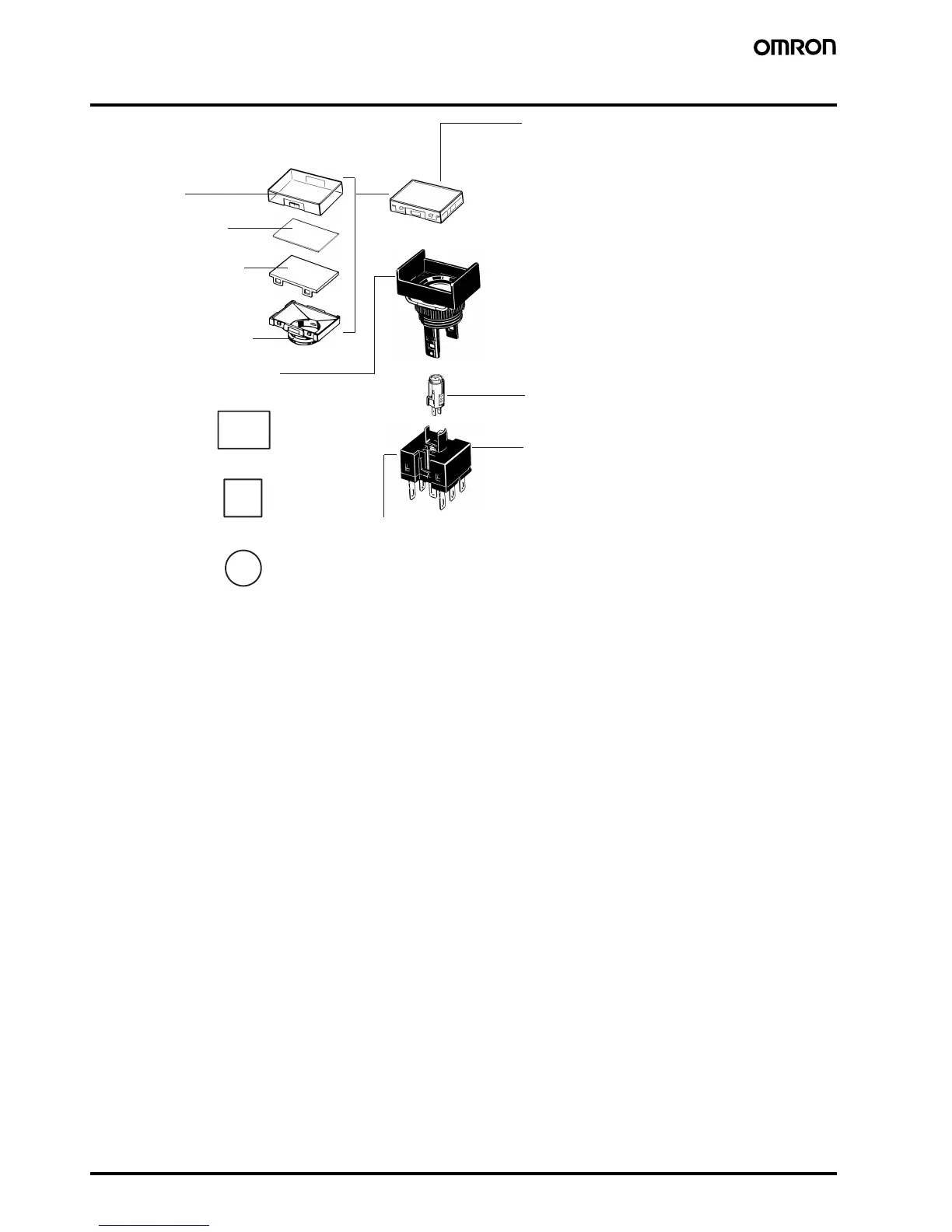

Nomenclature
Color of Pushbutton
• LED/incandescent models
Red, green, yellow, white, blue
• Neon models
Red, green, white
• Non-lighted models
Red, green, yellow, white, blue, black
Lamp
Terminal Type
• Solder terminals
(tab terminals #110)
• PCB terminals
• Screw-Less Clamp
Pushbutton
Cap
Legend plate
Dispersion plate
Reflective plunger
Switch
• Switch Ratings
5 A at 125 VAC
3 A at 250 VAC
3 A at 30 VDC
Minimum applicable load: 1 mA at 5 VDC
Degree of Protection
• IP40/Oil-resistant IP65
Flange Shape
Square (A16@-A)
Round (A16@-T)
Rectangular (A16@-J, A16@-3J)
