G-28 Pushbutton Switch A16
■ Terminal Arrangement
Models without Reduced-voltage Lighting
Non-lighted Pushbutton Switches are also provided with lamp terminals.
Solder Terminals
PCB Terminals
Voltage Reduction Units
• The voltage-reduction circuit is built in.
Screw-Less Clamps
• Voltage-reduction lighting models with Screw-Less Clamps (A16L-
@T1-2S, A16L-@T2-2S) incorporate voltage-reduction circuits.
Lighted SPDT Switches
Lighted DPDT Switches
Lamp terminal
Lamp terminal

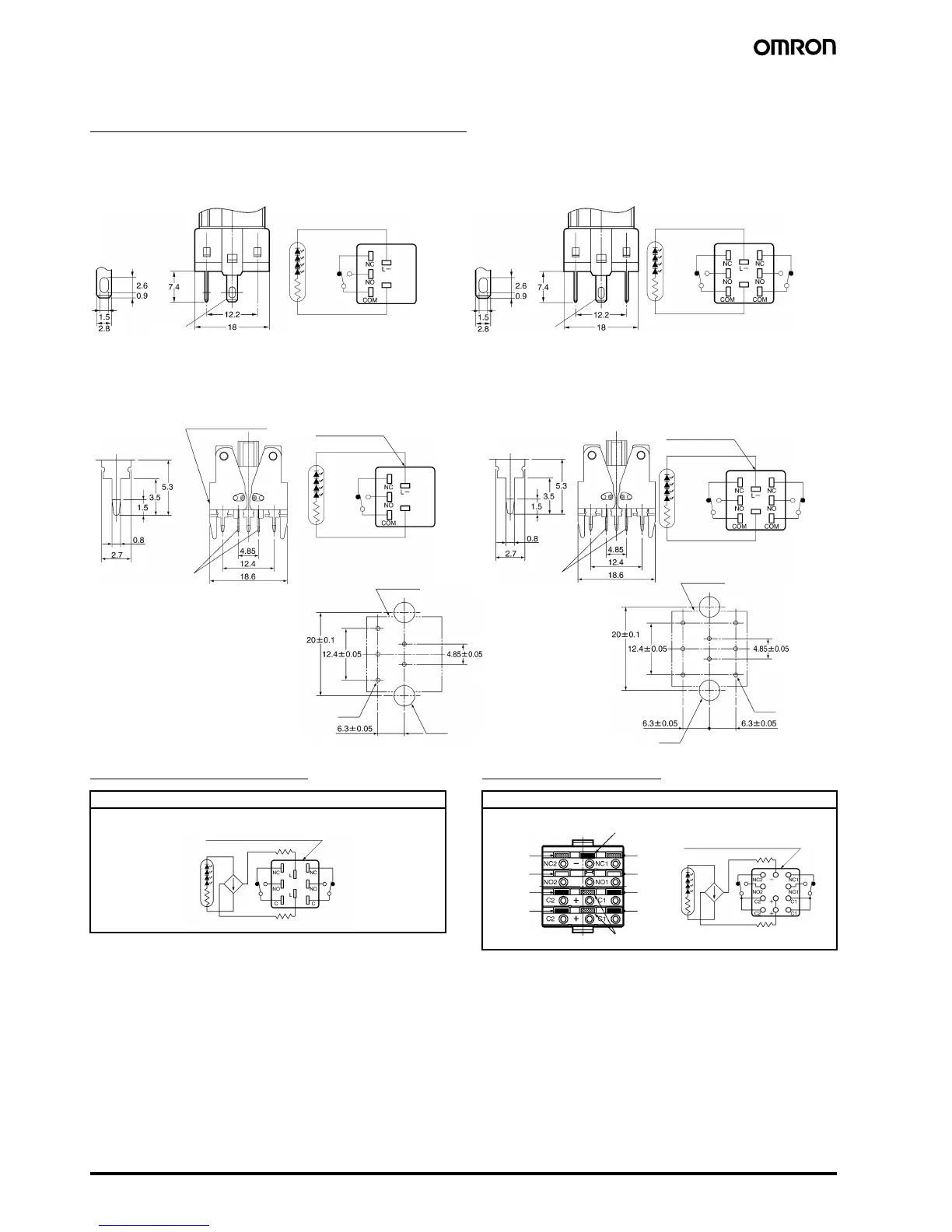

Dimensions of
Terminal Holes
Terminal Arrangement
(Bottom View)
Note: The L+ is not shown
on the Switch.
Dimensions of
Terminal Holes
Terminal Arrangement
(Bottom View)
Note: The L+ is not shown
on the Switch.
Lamp terminal (t=0.5)
Side with TOP indicated
Five, 1 dia.
Two, 5 dia.
Lamp terminal (t=0.5)
Side with TOP indicated
Eight, 1 dia.
Two, 5 dia.
Lighted SPDT Switches Lighted DPDT Switches
Dimensions of
PCB Terminals
Terminal Arrangement
(Bottom View)
Model, rating, and lot
number indication
Side with TOP
indicated
PCB Cutouts
(Bottom View)
Dimensions of
PCB Terminals
Terminal Arrangement
(Bottom View)
Side with TOP
indicated
PCB Cutouts
(Bottom View)
DPDT lighted models
Side with direction arrow
(Bottom view)
DPDT lighted models
Black
Red
White
Black
Black
Red
Black
Black
White
Red
Side indicating TOP
(Bottom view)
