Pushbutton Switch A16 G-29
Pushbutton
Switches

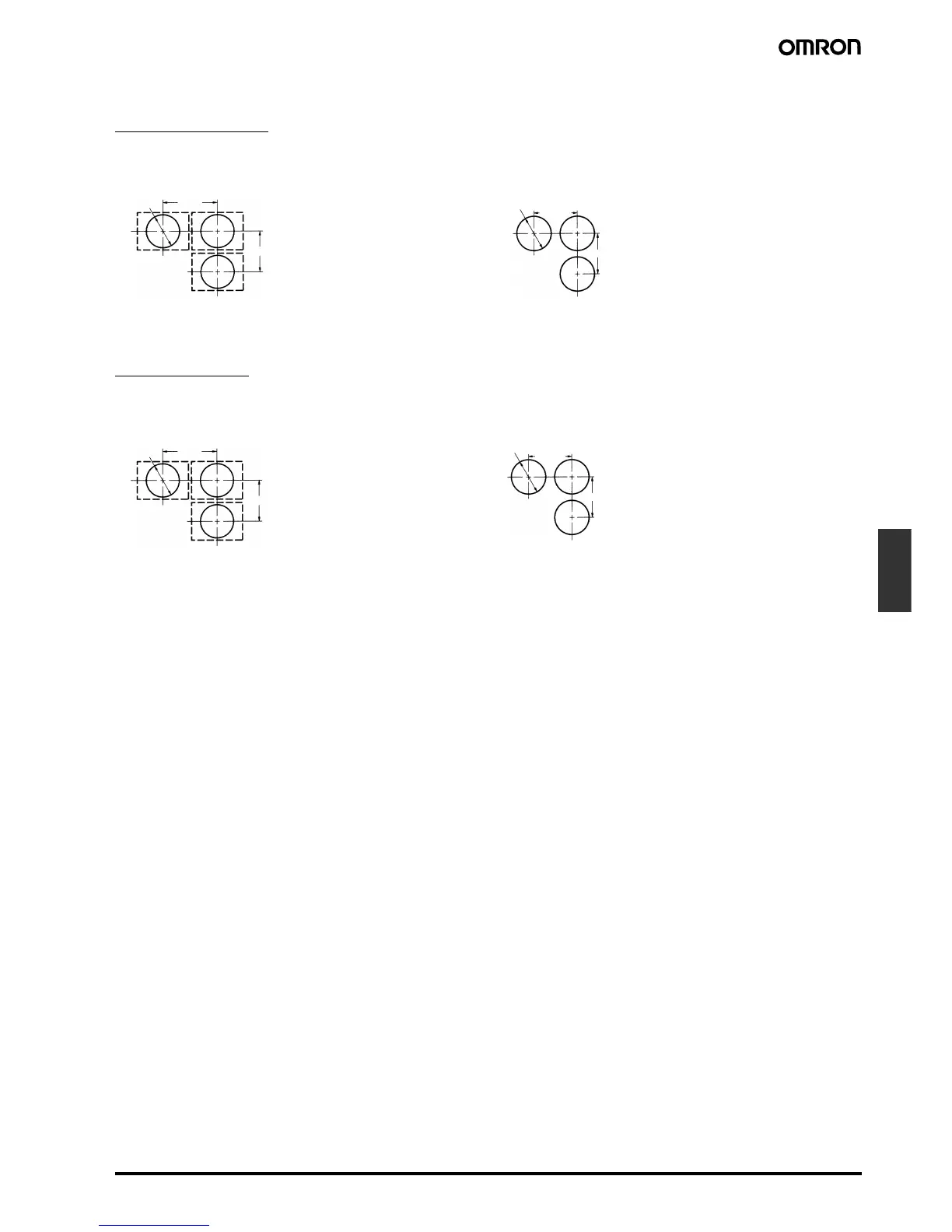

■ Panel Cutouts
Solder Terminals
Note: 1. Make sure the thickness of the mounting panel is between 0.5 and 3.2 mm. If, however, a Switch Guard or Dust Cover is used, the thick-
ness of the mounting panel must be between 0.5 and 2 mm.
2. If the panel is to be finished with coating, etc., make sure that the panel meets the specified dimensions after coating.
PCB Terminals
Note: 1. Ensure that the variation in the distance between the centers of neighboring mounting holes is less than ±0.1 mm.
2. Make sure the thickness of the mounting panel is between 0.5 and 3.2 mm. If, however, a Switch Guard or Dust Cover is used, the thick-
ness of the mounting panel must be between 0.5 and 2 mm.
3. If the panel is to be finished with coating, etc., make sure that the panel meets the specified dimensions after coating.
24 min.
19 min.
16 dia.
+0.2
0
19 min.
16 dia.
+0.2
0
19 min.
Rectangular A16@-J/M16@-@J
(Top View)
Square A16@-A/M16@-A
Round A16@-T/M16@-T
(Top View)
24 min.
24 min.
16 dia.
+0.2
0
24 min.
16 dia.
+0.2
0
24 min.
Rectangular A16@-J/M16@-J
(Top View)
Square A16@-A/M16@-A, A165@-BA, M165-BA
Round A16@-T/M16@-T
(Top View)
