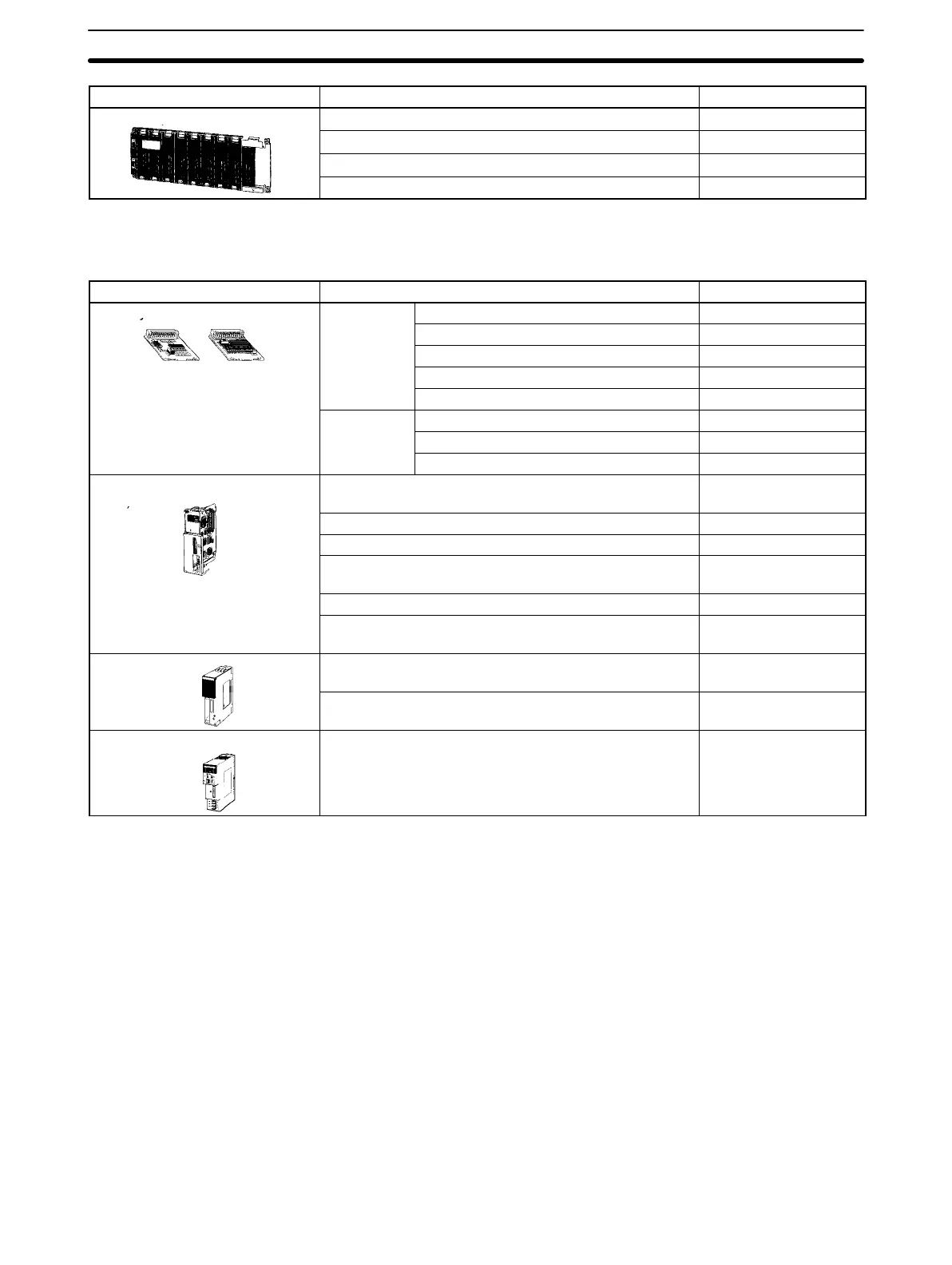

Omron C200HX Series User Manual

Standard Models Appendix A
96
Name Model numberSpecifications
CPU Backplanes
3 slots C200HW-BC031
p
5 slots C200HW-BC051
8 slots (see note) C200HW-BC081-V1
10 slots (see note) C200HW-BC101-V1
Note There are restrictions in combining Backplanes and Power Supply Units
when using the C200HW-PA209R Power Supply Unit with an 8-slot or 10-slot
CPU Backplane or Expansion I/O Backplane.
Name Specifications Model number
Memory Cassettes
EEPROM 4K words C200HW-ME04K
y
8K words C200HW-ME08K
16K words C200HW-ME16K
32K words C200HW-ME32K
64K words (see note) C200HW-ME64K
EPROM 16K words/32K words C200HS-MP16K
Equivalent to 27256, 150 ns, 12.5 V ROM-JD-B
Equivalent to 27512, 150 ns, 12.5 V ROM-KD-B
Communication Boards (See
note.)
Communications port for SYSMAC LINK and SYSMAC
NET Link Units
C200HW-COM01
)
RS-232C port C200HW-COM02-V1
RS-422/485 port C200HW-COM03-V1
Communications port for the SYSMAC LINK Unit and
SYSMAC NET Link Unit and a protocol macro function
C200HW-COM04-EV1
Two RS-232C ports and a protocol macro function C200HW-COM05-EV1
RS-422/485 port, an RS-232C port, and a protocol macro
function
C200HW-COM06-EV1
PC Card Unit
Two interface slots for PMCIA2 PC cards. C200HW-PCU01
Ethernet expansion function included C200HW-PCS01-EV1
Controller Link Unit A separate Bus Connection Unit is required. C200HW-CLK21
Note: Use the V1 Communications Boards for the C200HZ/HG/HE-CPUjj-ZE CPU Units. The C200HW-
COM01 can also be used.
