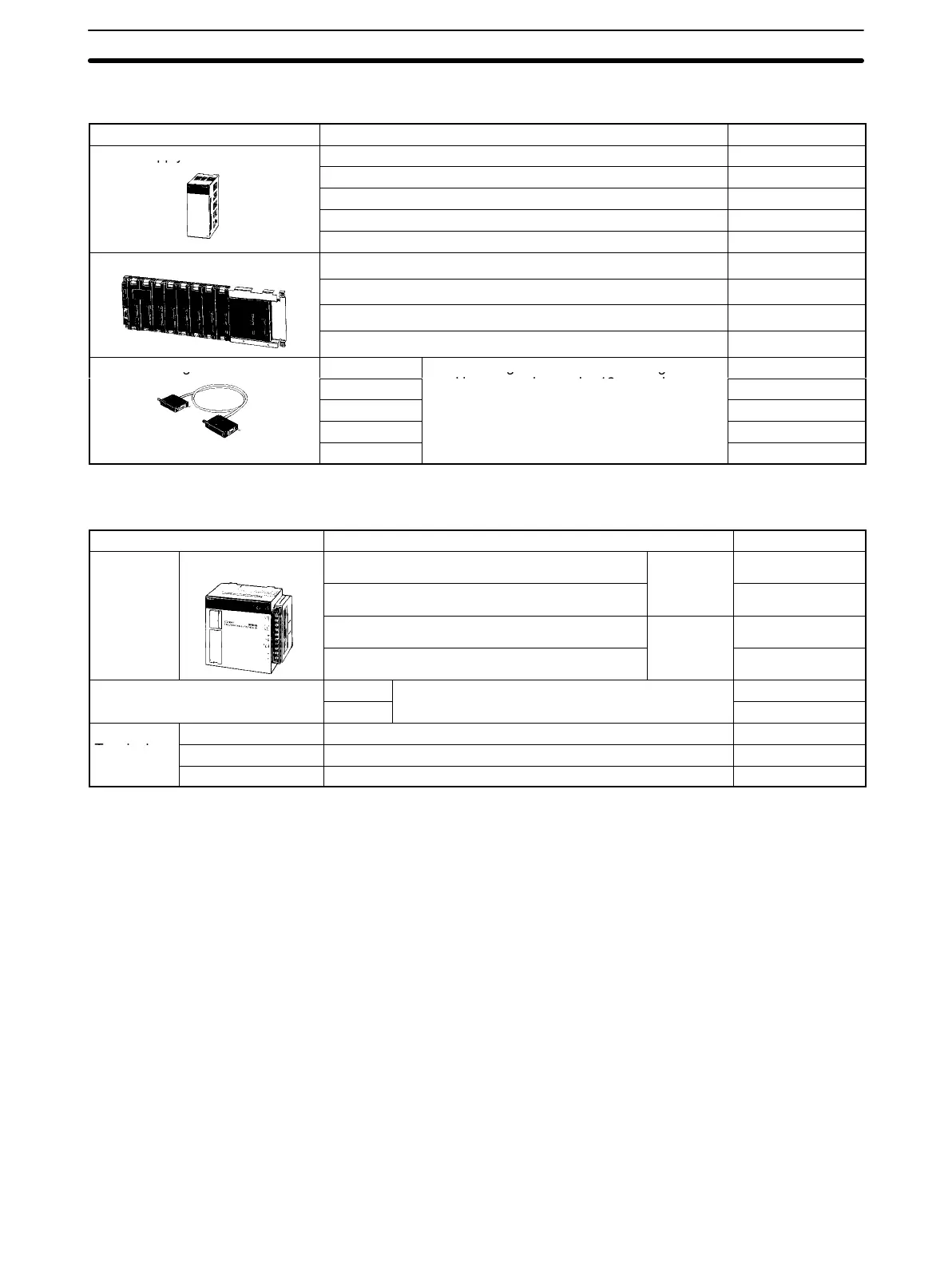

Omron C200HX Series User Manual

Appendix AStandard Models
97
Expansion I/O Racks
Name Specifications Model number
Power Supply Units
100 to 120/200 to 240 VAC C200HW-PA204
pp y
100 to 120/200 to 240 VAC (with 24-VDC output terminals) C200HW-PA204S
100 to 120/200 to 240 VAC C200HW-PA204R
100 to 120/200 to 240 VAC C200HW-PA209R
24 VDC C200HW-PD024
I/O Backplanes
3 slots C200HW-BI031
5 slots C200HW-BI051
8 slots C200HW-BI081-V1
10 slots C200HW-BI101-V1
I/O Connecting Cables
30 cm
The total length of the I/O Connecting Cables
di k b 12 i
C200H-CN311
g
70 cm
gg
used in a network must be 12 m maximum.
C200H-CN711
2 m C200H-CN221
5 m C200H-CN521
10 m C200H-CN131
Slave Racks
Name Specifications Model number
Slave
Racks
Remote I/O Slave
Units
100 to 120/200 to 240 VAC (switchable) APF/PCF C200H-RT001-P
Racks
Units
24 VDC C200H-RT002-P
100 to 120/200 to 240 VAC (switchable) Wired C200H-RT201
24 VDC C200H-RT202
I/O Blocks Input Specify either 12 or 24 VDC. G71-IC16
Output G71-OD16
I/O
Til
AC input Specify either 100 or 200 VAC. G7TC-IA16
Terminals
DC input Specify either 12 or 24 VDC. G7TC-ID16
Output Specify either 12 or 24 VDC. G7TC-OC16
