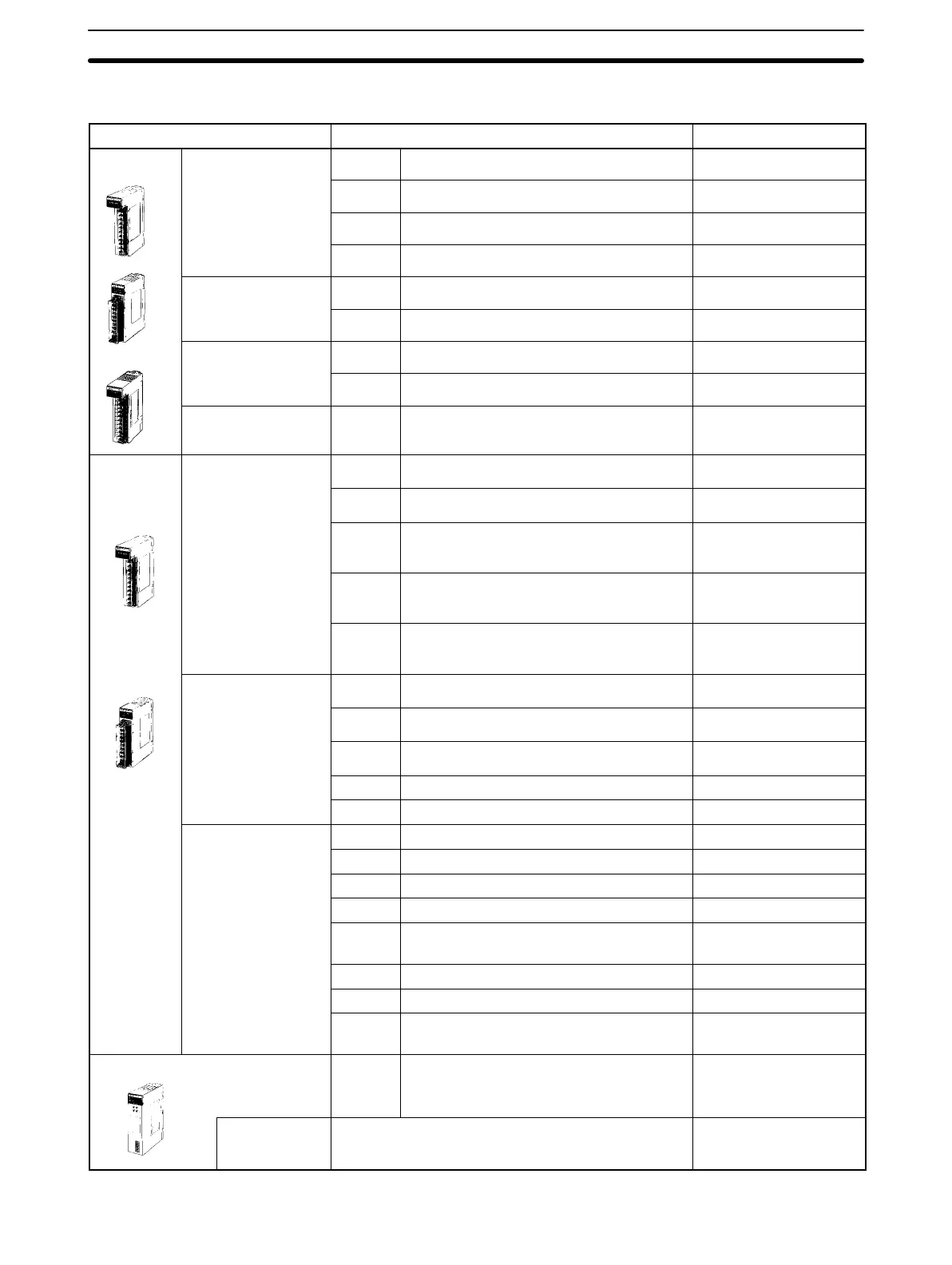

Omron C200HX Series User Manual

Standard Models Appendix A
98
I/O Units
Name Specifications Model number
Input Units AC Input Units 8 pts 100 to 120 VAC C200H-IA121
16 pts 100 to 120 VAC C200H-IA122/IA122V
8 pts 200 to 240 VAC C200H-IA221
16 pts 200 to 240 VAC C200H-IA222/IA222V
DC Input Units 8 pts 12 to 24 VDC C200H-ID211
16 pts 24 VDC C200H-ID212
AC/DC Input Units 8 pts 12 to 24 VAC/DC C200H-IM211
16 pts 24 VAC/DC C200H-IM212
Interrupt Input Unit
(see note)
8 pts 12 to 24 VDC C200HS-INT01
Output
Units
Relay Output Units 8 pts 2 A, 250 VAC/24 VDC (for resistive loads) C200H-OC221
Units
12 pts 2 A, 250 VAC/24 VDC (for resistive loads) C200H-OC222/OC222V
5 pts 2 A, 250 VAC/24 VDC (for resistive loads)
Independent commons
C200H-OC223
8 pts 2 A, 250 VAC/24 VDC (for resistive loads)
Independent commons
C200H-OC224/OC224V
16 pts 2 A, 250 VAC/24 VDC (for resistive loads)
(see note)
C200H-OC225
Triac Output Units 8 pts 1 A, 120 VAC C200H-OA121-E
8 pts 1 A, 200 VAC C200H-OA221
12 pts 0.3 A, 200 VAC C200H-OA222V
8 pts 1.2 A, 250 VAC C200H-OA223
12 pts 0.5 A, 250 VAC C200H-OA224
Transistor Output
Units
8 pts 1 A, 12 to 48 VDC C200H-OD411
Units
12 pts 0.3 A, 24 VDC C200H-OD211
16 pts 0.3 A, 24 VDC (see note) C200H-OD212
8 pts 2.1 A, 24 VDC C200H-OD213
8 pts 0.8 A, 24 VDC; source type (PNP); w/load
short protection
C200H-OD214
8 pts 0.3 A, 5 to 24 VDC; source type (PNP) C200H-OD216
12 pts 0.3 A, 5 to 24 VDC; source type (PNP) C200H-OD217
16 pts 1.0 A, 24 VDC; source type (PNP); with load
short protection
C200H-OD21A
Analog Timer Unit 4 timers 0.1 to 1 s/1 to 10 s/10 to 60 s/1 min to 10
min (switchable)
C200H-TM001
Variable
Resistor
Connector
Connector w/lead wire (2 m) for 1 external resistor C4K-CN223
